MODEL · FT-103162

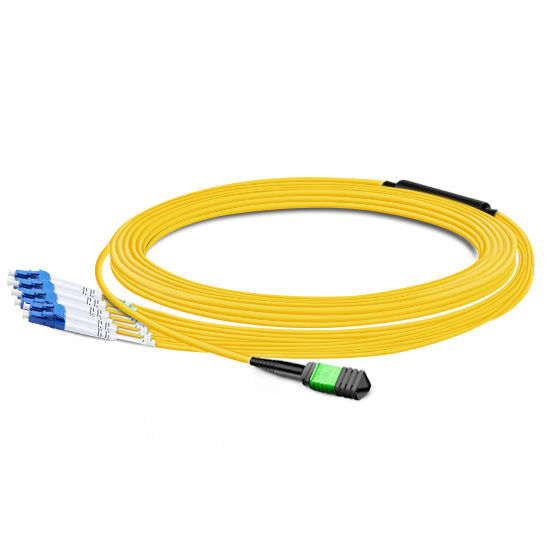

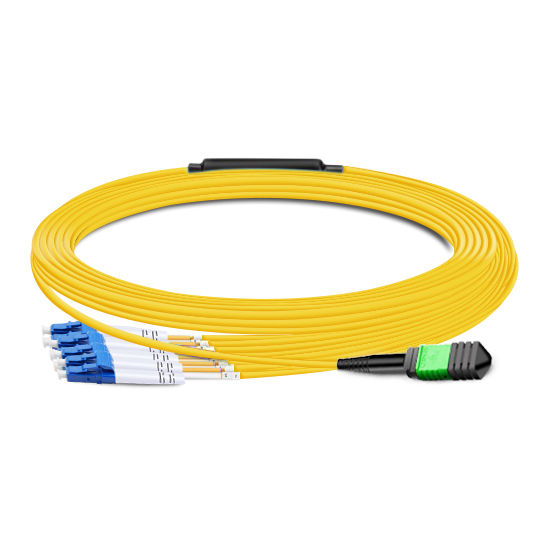

10m MPO-8 APC to Four LC Duplex Breakout, OS2 LSZH

F-tone Networks 10m (33ft) MPO-8 APC into four LC duplex OS2 Elite breakout, 8F Type B LSZH yellow, ClearCurve. Ask Betty or Una for a quote. Now. Now.

Optical Transceivers Fiber Cables & Patch Cords

Connector A: MPO APC Female
Connector B: LC UPC Duplex
Fiber Type: OS2 9/125μm Single Mode
Wavelength: 1310/1550nm
Fiber Count: 8 Fibers
Distance: 10m (33ft)

Reference model FT-103162 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓

Specifications

Technical parameters

Connector A	MPO APC Female
Connector B	LC UPC Duplex
Fiber Type	OS2 9/125μm Single Mode
Wavelength	1310/1550nm
Fiber Count	8 Fibers
Distance	10m (33ft)
Fiber Glass	Corning ClearCurve®
Cable Jacket	低烟无卤
MPO Connector IL	0.35dB Max (0.15dB Typ.)
LC Connector IL	≤0.2dB
MPO Connector RL	≥60dB
LC Connector RL	≥50dB
Attenuation at 1310nm	≤0.32 dB/km
Attenuation at 1550nm	≤0.18 dB/km
Cable Diameter	3.0mm
Fiber Color	Yellow
扇出直径	2.0mm
Min. Bend Radius	10mm
安装拉伸载荷	100 N
长期拉伸载荷	50 N
Operating Temperature	商业级/工业级/军品级可选
Storage Temperature	商业级/工业级/军品级可选
Attenuation at 1550nm	≤0.6 dB/km
Polish Type	APC to UPC
Armoured	No
Insert Loss	≤0.35dB
Min. Bend Radius(Fiber Core)	10mm
Attenuation (dB/km)	≤0.32 at 1310nm, ≤0.18 at 1550nm

Overview

Product details

Prefer low-smoke jacketing on an eight-fiber OS2 MPO-to-LC run? This yellow LSZH Elite breakout keeps APC on the MPO and UPC on four LC duplexes over 10m (33ft) of ClearCurve.

Key Features

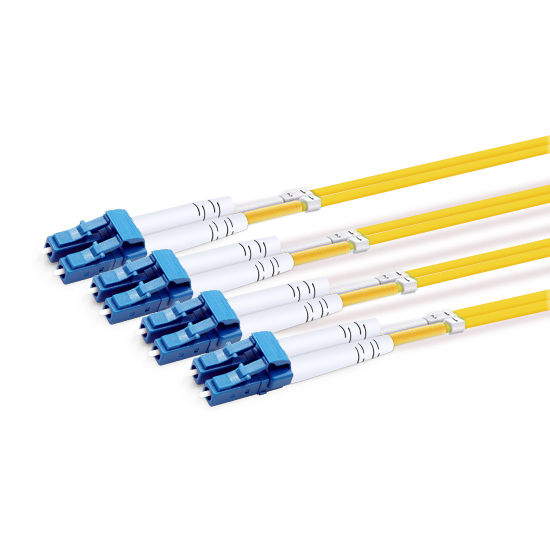

Angled MPO into four LC duplex legs
Eight OS2 9/125 strands
Type B, APC-to-UPC, LSZH yellow
MPO 0.35 dB max / LC <=0.2 dB
10m (33ft) ClearCurve build

Applications

OS2 MPO-8 landing on LC fields
Eight-fiber single-mode fan-out in LSZH rooms

Specifications

Parameter	Value
Connector A	MPO APC Female
Connector B	LC UPC Duplex
Fiber Type	OS2 9/125μm Single Mode
Wavelength	1310/1550nm
Fiber Count	8 Fibers
Distance	10m (33ft)
Fiber Glass	Corning ClearCurve®
Cable Jacket	LSZH
MPO Connector IL	0.35dB Max (0.15dB Typ.)
LC Connector IL	≤0.2dB
MPO Connector RL	≥60dB
LC Connector RL	≥50dB
Attenuation at 1310nm	≤0.32 dB/km
Attenuation at 1550nm	≤0.18 dB/km
Cable Diameter	3.0mm
Fiber Color	Yellow

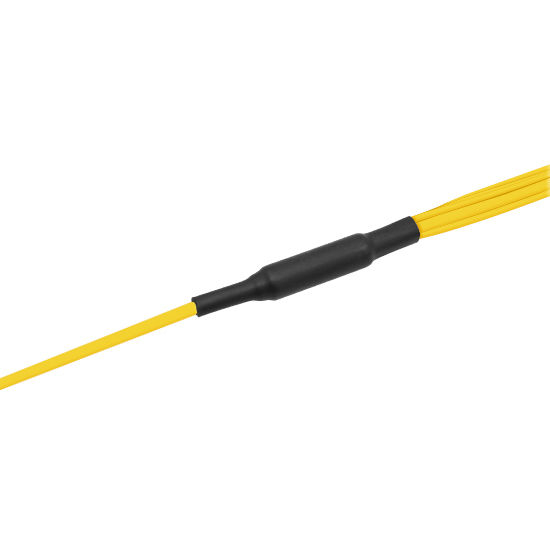

Breakout Diameter	2.0mm
Min. Bend Radius	10mm
Installation Tensile Load	100 N
Long-term Tensile Load	50 N
Operating Temperature	Commercial, industrial or military grade (selectable)
Storage Temperature	Commercial, industrial or military grade (selectable)
Attenuation at 1550nm	≤0.6 dB/km
Polish Type	APC to UPC
Armoured	No
Insertion Loss	≤0.35dB
Min. Bend Radius(Fiber Core)	10mm
Attenuation (dB/km)	≤0.32 at 1310nm, ≤0.18 at 1550nm
