MODEL · FT-103198

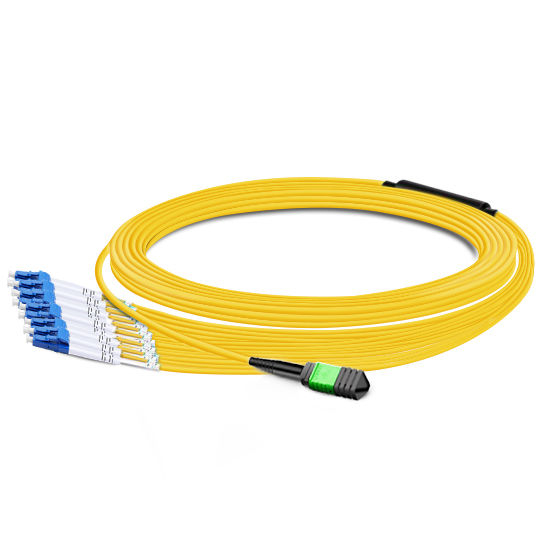

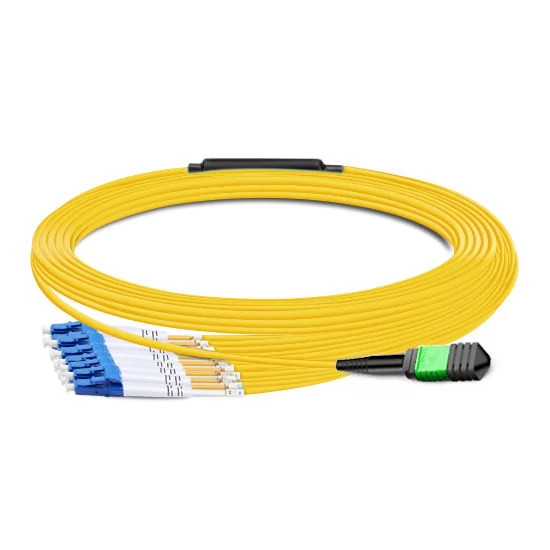

10m MPO-12 APC to Six LC Duplex Breakout, OS2 LSZH

F-tone Networks 10m (33ft) MPO-12 APC into six LC duplex OS2 Elite breakout, 12F Type B LSZH yellow, ClearCurve. Ask Betty or Una for a quote. Now. Now.

Optical Transceivers Fiber Cables & Patch Cords

Connector A: MPO APC Female
Connector B: LC UPC Duplex
Fiber Type: OS2 9/125μm Single Mode
Wavelength: 1310/1550nm
Fiber Count: 12 Fibers
Distance: 10m (33ft)

Reference model FT-103198 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓

Specifications

Technical parameters

Connector A	MPO APC Female
Connector B	LC UPC Duplex
Fiber Type	OS2 9/125μm Single Mode
Wavelength	1310/1550nm
Fiber Count	12 Fibers
Distance	10m (33ft)
Fiber Glass	Corning ClearCurve®
Cable Jacket	低烟无卤
MPO Connector IL	0.75dB Max (0.35dB Typ.)
LC Connector IL	≤0.2dB
MPO Connector RL	≥60dB
LC Connector RL	≥50dB
Attenuation at 1310nm	≤0.32 dB/km
Attenuation at 1550nm	≤0.18 dB/km
Cable Diameter	3.0mm
Fiber Color	Yellow
扇出直径	2.0mm
Min. Bend Radius	10mm
安装拉伸载荷	100 N
长期拉伸载荷	50 N
Operating Temperature	商业级/工业级/军品级可选
Storage Temperature	商业级/工业级/军品级可选
Polish Type	APC to UPC
Armoured	No
Insert Loss	≤0.35dB
Min. Bend Radius(Fiber Core)	10mm
Attenuation (dB/km)	≤0.32 at 1310nm, ≤0.18 at 1550nm

Overview

Product details

Single-mode twelve-fiber breakout: MPO APC female into six LC UPC duplexes, Type B, LSZH yellow, 10m (33ft). ClearCurve OS2, MPO return from 60 dB, LC return from 50 dB, bend floor 10 mm.

Key Features

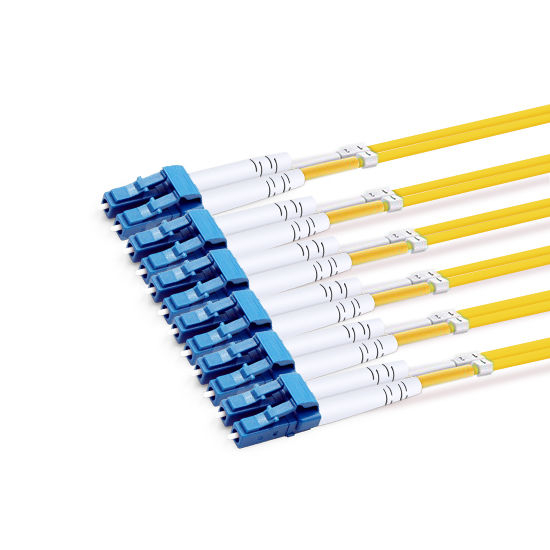

Angled MPO into six LC duplex legs
Twelve OS2 9/125 strands
Type B, APC-to-UPC, LSZH yellow
MPO 0.75 dB max / LC <=0.2 dB
10m (33ft) ClearCurve build

Applications

OS2 cassette landing on LC patch fields
Twelve-fiber single-mode fan-out in LSZH rooms

Specifications

Parameter	Value
Connector A	MPO APC Female
Connector B	LC UPC Duplex
Fiber Type	OS2 9/125μm Single Mode
Wavelength	1310/1550nm
Fiber Count	12 Fibers
Distance	10m (33ft)
Fiber Glass	Corning ClearCurve®
Cable Jacket	LSZH
MPO Connector IL	0.75dB Max (0.35dB Typ.)
LC Connector IL	≤0.2dB
MPO Connector RL	≥60dB
LC Connector RL	≥50dB
Attenuation at 1310nm	≤0.32 dB/km
Attenuation at 1550nm	≤0.18 dB/km
Cable Diameter	3.0mm
Fiber Color	Yellow
Breakout Diameter	2.0mm
Min. Bend Radius	10mm
Installation Tensile Load	100 N
Long-term Tensile Load	50 N
Operating Temperature	Commercial, industrial or military grade (selectable)
Storage Temperature	Commercial, industrial or military grade (selectable)
Polish Type	APC to UPC
Armoured	No
Insertion Loss	≤0.35dB
Min. Bend Radius(Fiber Core)	10mm
Attenuation (dB/km)	≤0.32 at 1310nm, ≤0.18 at 1550nm

Contact Us

For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
