1 / 6MODEL · FT-MFP7E30-N010

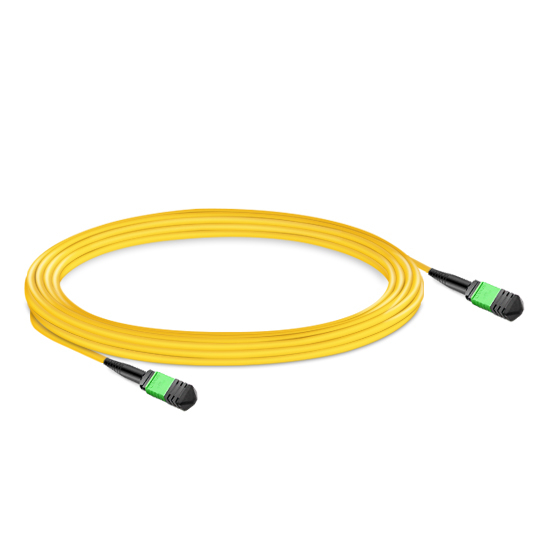

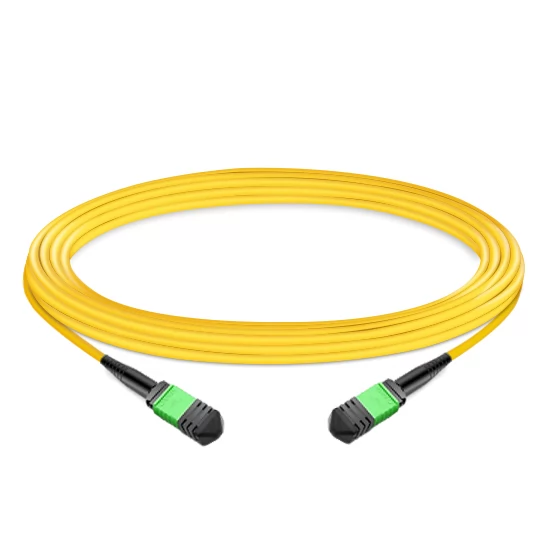

10m MPO-12 APC OS2 Elite Trunk, 12F LSZH Yellow
F-tone Networks 10m (33ft) MPO-12 APC OS2 Elite trunk, twelve fibers Type B LSZH yellow, ClearCurve, IL 0.35dB max. Factory terminated. Ask Betty or Una.

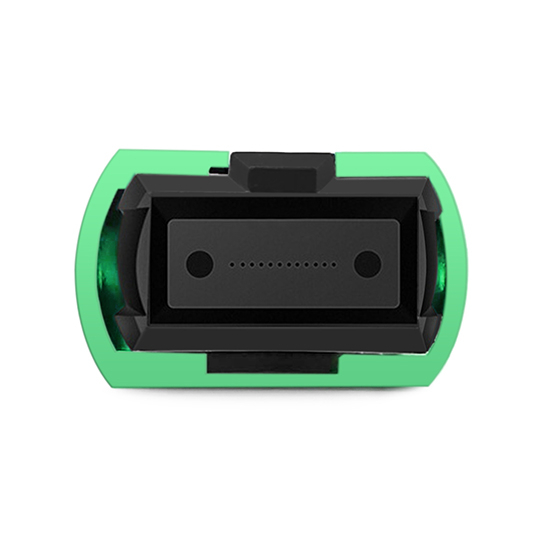

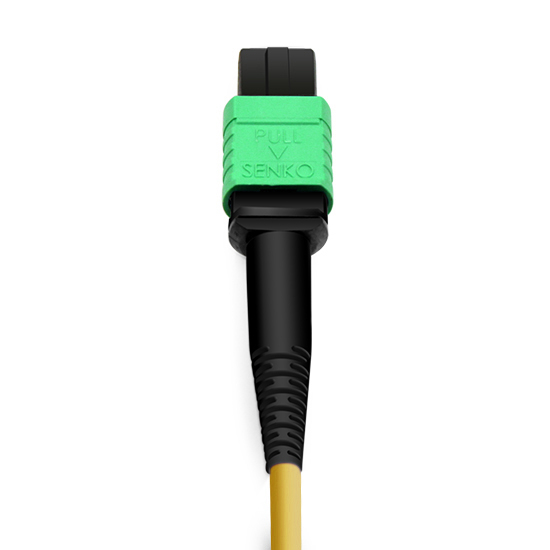

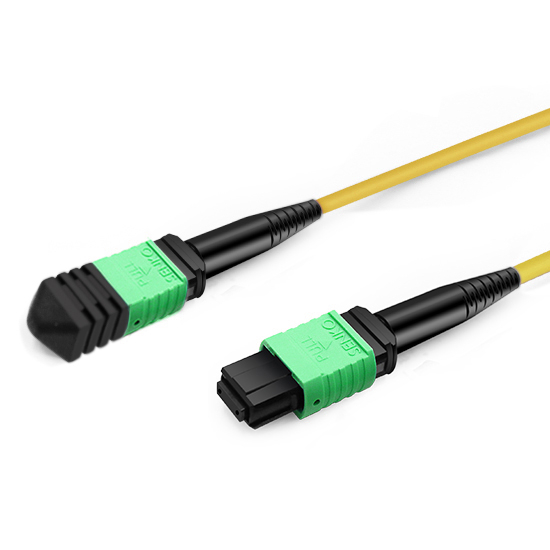

- Connector A
- MPO Female
- Connector B
- MPO Female
- Fiber Type
- OS2 9/125μm Single Mode
- Wavelength
- 1310/1550nm
- Fiber Count
- 12 Fibers
- Distance
- 10m (33ft)
Reference model FT-MFP7E30-N010 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | MPO Female |
|---|---|
| Connector B | MPO Female |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm |
| Fiber Count | 12 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | 低烟无卤 |
| 抛光型 | APC to APC |
| Min. Bend Radius | 10mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) |
| Return Loss | ≥60dB |
| Attenuation at 1310nm | ≤0.32 dB/km |
| Attenuation at 1550nm | ≤0.18 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Yellow |
| 安装拉伸载荷 | 100 N |
| 长期拉伸载荷 | 50 N |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
| Polish Type | APC to APC |
| Armoured | No |
| Insert Loss | ≤0.35dB |
| Min. Bend Radius(Fiber Core) | 10mm |
| Attenuation (dB/km) | ≤0.32 at 1310nm, ≤0.18 at 1550nm |
Overview
Product details
Yellow LSZH wraps twelve OS2 strands between APC-polished MPO females. Type B, ClearCurve, 10m (33ft), 3.0 mm. Sheet quotes 0.35 dB max insertion (0.15 typical) and return from 60 dB.
Key Features
- Matched MPO female ends
- Twelve OS2 9/125 strands
- Type B, APC polish, LSZH yellow
- IL 0.35 dB max, RL >=60 dB
- 10m (33ft) ClearCurve build
Applications
- OS2 MPO backbone between frames
- Single-mode Elite trunks in LSZH plants
Specifications
| Parameter | Value |
|---|---|
| Connector A | MPO Female |
| Connector B | MPO Female |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm |
| Fiber Count | 12 Fibers |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | LSZH |
| Polish Type | APC to APC |
| Min. Bend Radius | 10mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) |
| Return Loss | ≥60dB |
| Attenuation at 1310nm | ≤0.32 dB/km |
| Attenuation at 1550nm | ≤0.18 dB/km |
| Cable Diameter | 3.0mm |
| Fiber Color | Yellow |
| Installation Tensile Load | 100 N |
| Long-term Tensile Load | 50 N |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
| Armoured | No |
| Min. Bend Radius(Fiber Core) | 10mm |
| Attenuation (dB/km) | ≤0.32 at 1310nm, ≤0.18 at 1550nm |
| Compatible Brands | Adva / Nec |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
Compatibility
Compatible platforms
AdvaNec
