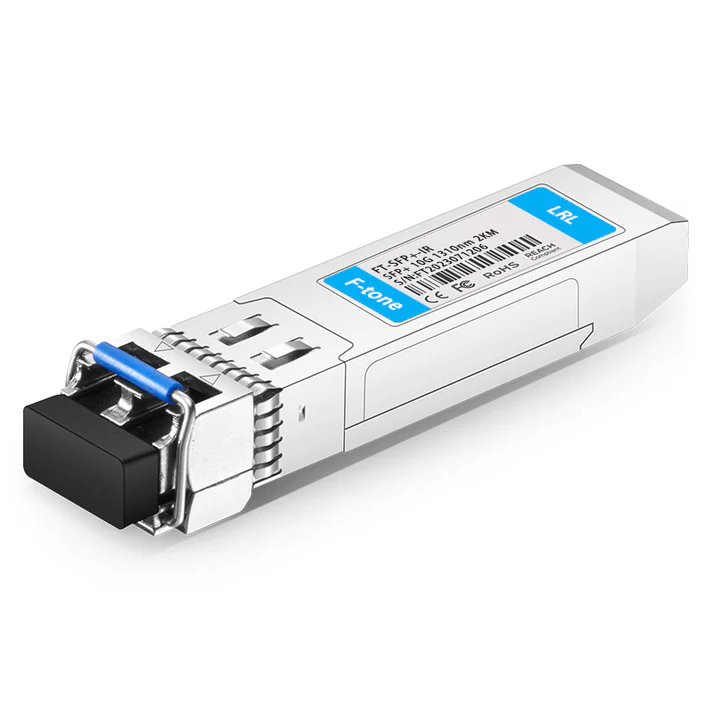

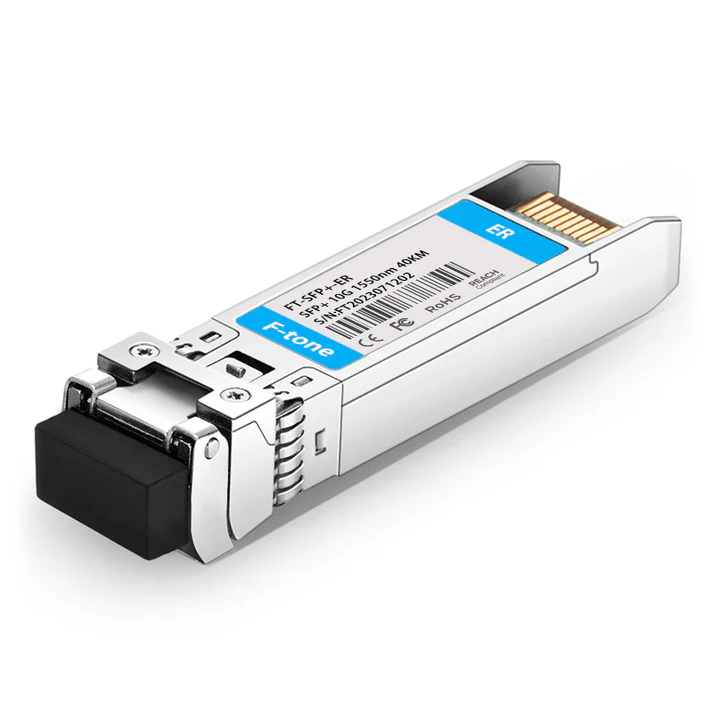

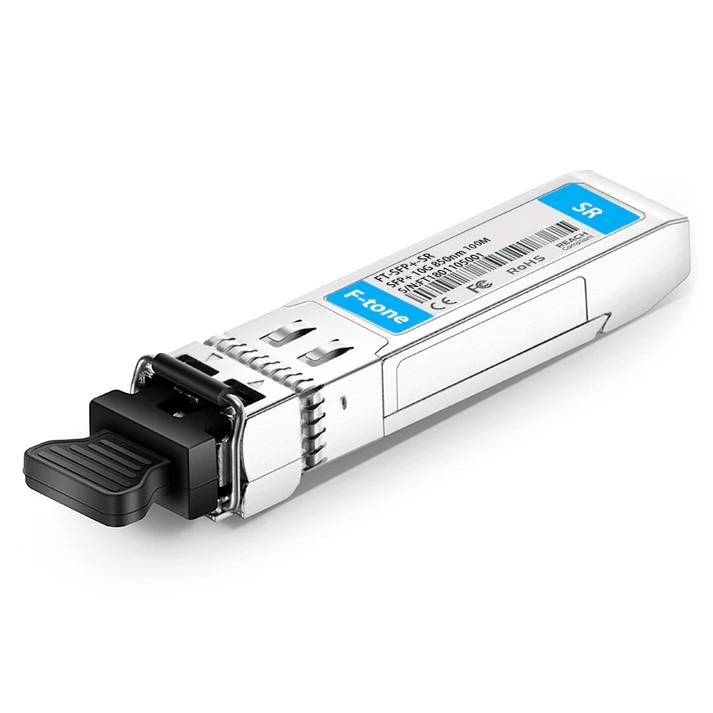

FT-NM-LD-PD-DBM-DBM-KM product image - F-tone Networks 1 / 4
MODEL · FT-NM-LD-PD-DBM-DBM-KM

10G SFP+ Optical Transceiver, 850/1310/1550nm, 0.3-100km

10G SFP+ transceiver range: 850nm 0.3km, 1310nm 10-60km, 1550nm 40-100km, plus RJ45; duplex LC, hot-pluggable, DDM, 3.3V, RoHS-10. Supplied by F-tone Networks.

Optical Transceivers
ProductNumber
DataRate(Gb/s) | Wavelength(nm) | Reach(km) | LD | TxPower(dBm) | PD | RxSens(dBm) | Temperature(℃)
FTSPD-10GM03-85/I
10 | 850 | 0.3 | VCSEL | -6~-1 | PIN | <-11 | 0~70/-40~85
FTSPD-10GS10-31/I
10 | 1310 | 10 | DFB | -6.5~0.5 | PIN | <-14.4 | 0~70/-40~85
FTSPD-10GS40-31/I
10 | 1310 | 10 | DFB | -1~3 | PIN | <-15.8 | 0~70/-40~85
FTSPD-10GS40-55/I
10 | 1550 | 40 | EML | -1~3 | PIN | <-15.8 | 0~70/-40~85
FTSPD-10GS80-55/I
10 | 1550 | 80 | EML | -0~5 | APD | <-23 | 0~70/-40~85
Request a quote WhatsApp Betty

Reference model FT-NM-LD-PD-DBM-DBM-KM in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓

Specifications

Technical parameters

ProductNumberDataRate(Gb/s) | Wavelength(nm) | Reach(km) | LD | TxPower(dBm) | PD | RxSens(dBm) | Temperature(℃)
FTSPD-10GM03-85/I10 | 850 | 0.3 | VCSEL | -6~-1 | PIN | <-11 | 0~70/-40~85
FTSPD-10GS10-31/I10 | 1310 | 10 | DFB | -6.5~0.5 | PIN | <-14.4 | 0~70/-40~85
FTSPD-10GS40-31/I10 | 1310 | 10 | DFB | -1~3 | PIN | <-15.8 | 0~70/-40~85
FTSPD-10GS40-55/I10 | 1550 | 40 | EML | -1~3 | PIN | <-15.8 | 0~70/-40~85
FTSPD-10GS80-55/I10 | 1550 | 80 | EML | -0~5 | APD | <-23 | 0~70/-40~85
FTSPD-10GS100-55/I10 | 1550 | 100 | EML | 0~6 | APD | <-26 | 0~70/-40~85
FTSPD-10G-RJ45/I10 | RJ45 | 0.08 | 0~70/-40~85
Supports 10Gb/s bit rate Duplex LC Connector Hot Pluggable SFP+ form factor Digital diagnostic monitoring supportSingle 3.3V power supply RoHS-10 compliant and lead-free All-metal housing for superior EMI performance Case operating temperature:0℃ to+ 70℃/ -40℃ to +85℃
Product NumberData Rate(Gb/s) | Wavelength(nm) | Reach(km) | LD | Tx Power(dBm) | PD | Rx Sens(dBm) | Temperature(℃)
FSPD-10GM03-85/I10 | 850 | 0.3 | VCSEL | -6~-1 | PIN | <-11 | 0~70/-40~85
FSPD-10GS10-31/I10 | 1310 | 10 | DFB | -6.5~0.5 | PIN | <-14.4 | 0~70/-40~85
FSPD-10GS40-31/I10 | 1310 | 10 | DFB | -1~3 | PIN | <-15.8 | 0~70/-40~85
FSPD-10GS40-55/I10 | 1550 | 40 | EML | -1~3 | PIN | <-15.8 | 0~70/-40~85
FSPD-10GS80-55/I10 | 1550 | 80 | EML | -0~5 | APD | <-23 | 0~70/-40~85
FSPD-10GS100-55/I10 | 1550 | 100 | EML | 0~6 | APD | <-26 | 0~70/-40~85
FSPD-10G-FJ45/I10 | FJ45 | 0.08 | / | / | / | / | 0~70/-40~85
Part Number速率 | 光纤类型 | 波长(nm) | LD/PD | 发射光功率 （dBm） | 接收灵敏度（dBm） | 传输距离（Km） | 数字诊断
FT-95-VL-99F88-MX6.25G | MM | 850 | VCSEL/PIN | -8.2～+0.5 | -12 | 0.3 | Y
FT-95-VL-99LAA-MX6.25G | SM | 1310 | DFB/PIN | -8～0 | -16 | 10 | Y
FT-95-VL-TTF88-MX10G | MM | 850 | VCSEL/PIN | -7～0 | -11.1 | 0.3 | Y
FT-95-VL-TTLAA-MX10G | SM | 1310 | DFB/PIN | -8.2～+0.5 | -14.4 | 10 | Y
FT-95-VL-TTDAA-MX10G | SM | 1310 | DFB/PIN | +1.5～+5 | -14.4 | 40 | Y
FT-95-VL-TT6AP-MX10G | SM | 1310 | DFB/APD | +3～+7 | -20 | 60 | Y
FT-95-VL-TTZCP-MX10G | SM | 1550 | EML/APD | 0～+4 | -23 | 80 | Y
Overview

Product details

From short multimode hops to 100 km single-mode spans, this SFP+ range covers the usual 10G reach ladder. 850 nm VCSEL versions reach 0.3 km, 1310 nm DFB versions cover 10 to 60 km, and 1550 nm EML versions with PIN or APD receivers reach 40, 80 and 100 km. An RJ45 copper version is also listed, and two 6.25G versions appear in the table. Optical versions use a duplex LC connector; all are hot-pluggable, support digital diagnostics, run from a single 3.3 V supply, are RoHS-10 compliant and lead-free, and use an all-metal housing. Case temperature options are 0 to +70 °C or -40 to +85 °C.

Key Features

  • Hot-pluggable SFP+, duplex LC
  • Digital diagnostic monitoring
  • Single 3.3 V supply
  • RoHS-10 compliant, lead-free
  • All-metal housing for EMI performance
  • Case temperature 0 to +70 °C / -40 to +85 °C

Applications

  • 10G Ethernet in data center and enterprise
  • Metro and long-reach 10G transport

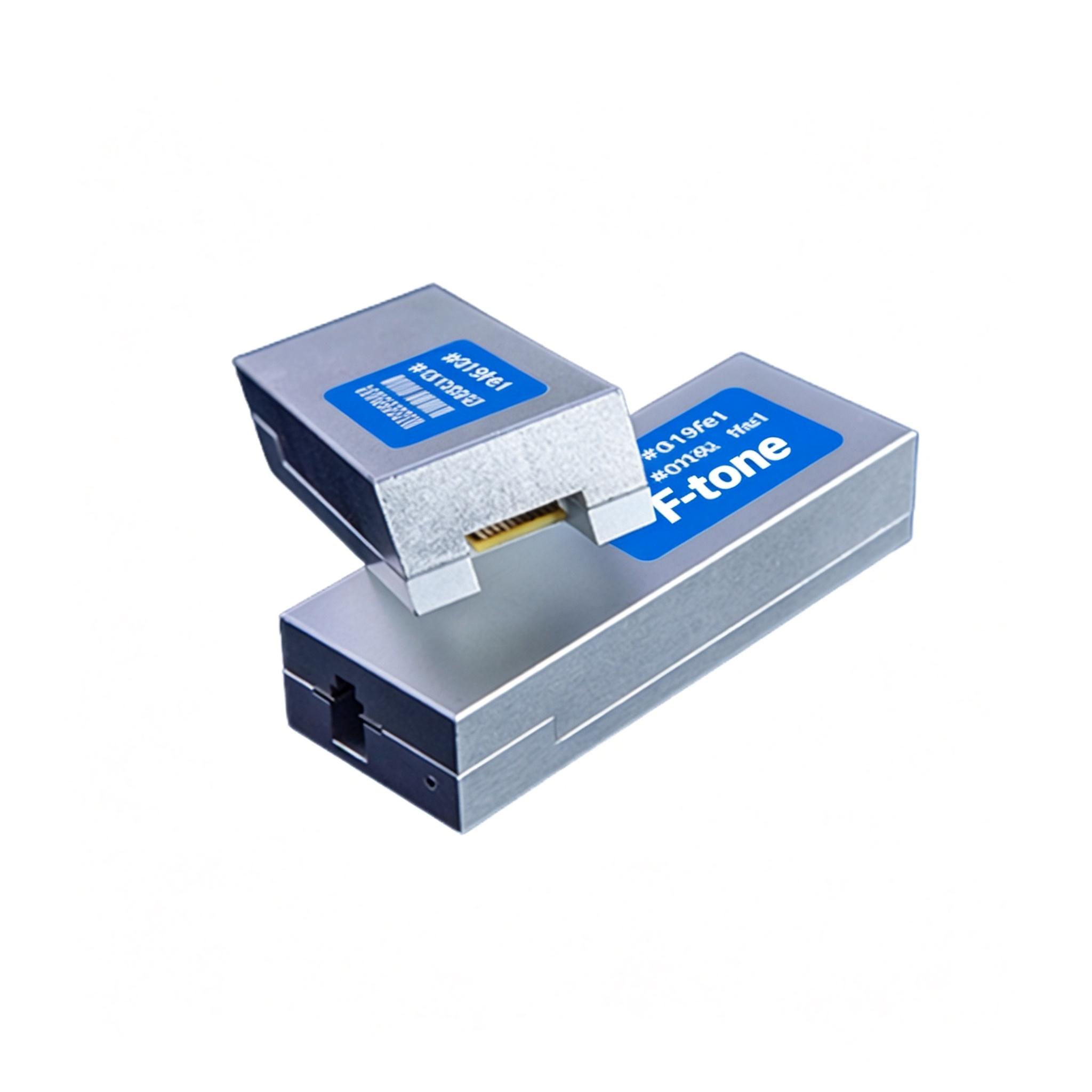

  • Short copper links via RJ45 SFP+

Specifications

ParameterValue
Data Rate10 Gb/s (6.25G versions listed)
Form FactorSFP+, hot pluggable
ConnectorDuplex LC (RJ45 on copper version)
Wavelengths850 / 1310 / 1550 nm
Reach0.3 km to 100 km; RJ45 0.08 km
Power SupplySingle 3.3 V
DiagnosticsDigital diagnostic monitoring
HousingAll-metal
ComplianceRoHS-10, lead-free
Case Temperature0 to +70 °C / -40 to +85 °C

Ordering References

Model and part numbers for ordering reference:

ReferenceDescription
FTSPD-10GM03-85/I10G, 850 nm, 0.3 km, VCSEL, Tx -6~-1 dBm, PIN, Rx <-11 dBm, 0~70/-40~85 °C
FTSPD-10GS10-31/I10G, 1310 nm, 10 km, DFB, Tx -6.5~0.5 dBm, PIN, Rx <-14.4 dBm, 0~70/-40~85 °C
FTSPD-10GS40-31/I10G, 1310 nm, 10 km (as listed), DFB, Tx -1~3 dBm, PIN, Rx <-15.8 dBm, 0~70/-40~85 °C
FTSPD-10GS40-55/I10G, 1550 nm, 40 km, EML, Tx -1~3 dBm, PIN, Rx <-15.8 dBm, 0~70/-40~85 °C
FTSPD-10GS80-55/I10G, 1550 nm, 80 km, EML, Tx -0~5 dBm, APD, Rx <-23 dBm, 0~70/-40~85 °C
FTSPD-10GS100-55/I10G, 1550 nm, 100 km, EML, Tx 0~6 dBm, APD, Rx <-26 dBm, 0~70/-40~85 °C
FTSPD-10G-RJ45/I10G, RJ45, 0.08 km, 0~70/-40~85 °C
FT-95-VL-99F88-MX6.25G, MM, 850 nm, VCSEL/PIN, Tx -8.2~+0.5 dBm, Rx -12 dBm, 0.3 km, DDM
FT-95-VL-99LAA-MX6.25G, SM, 1310 nm, DFB/PIN, Tx -8~0 dBm, Rx -16 dBm, 10 km, DDM
FT-95-VL-TTF88-MX10G, MM, 850 nm, VCSEL/PIN, Tx -7~0 dBm, Rx -11.1 dBm, 0.3 km, DDM
FT-95-VL-TTLAA-MX10G, SM, 1310 nm, DFB/PIN, Tx -8.2~+0.5 dBm, Rx -14.4 dBm, 10 km, DDM
FT-95-VL-TTDAA-MX10G, SM, 1310 nm, DFB/PIN, Tx +1.5~+5 dBm, Rx -14.4 dBm, 40 km, DDM
FT-95-VL-TT6AP-MX10G, SM, 1310 nm, DFB/APD, Tx +3~+7 dBm, Rx -20 dBm, 60 km, DDM
FT-95-VL-TTZCP-MX10G, SM, 1550 nm, EML/APD, Tx 0~+4 dBm, Rx -23 dBm, 80 km, DDM
