100G QSFP28 Bi-Directional SR 850/900nm DOM Transceiver

Overview

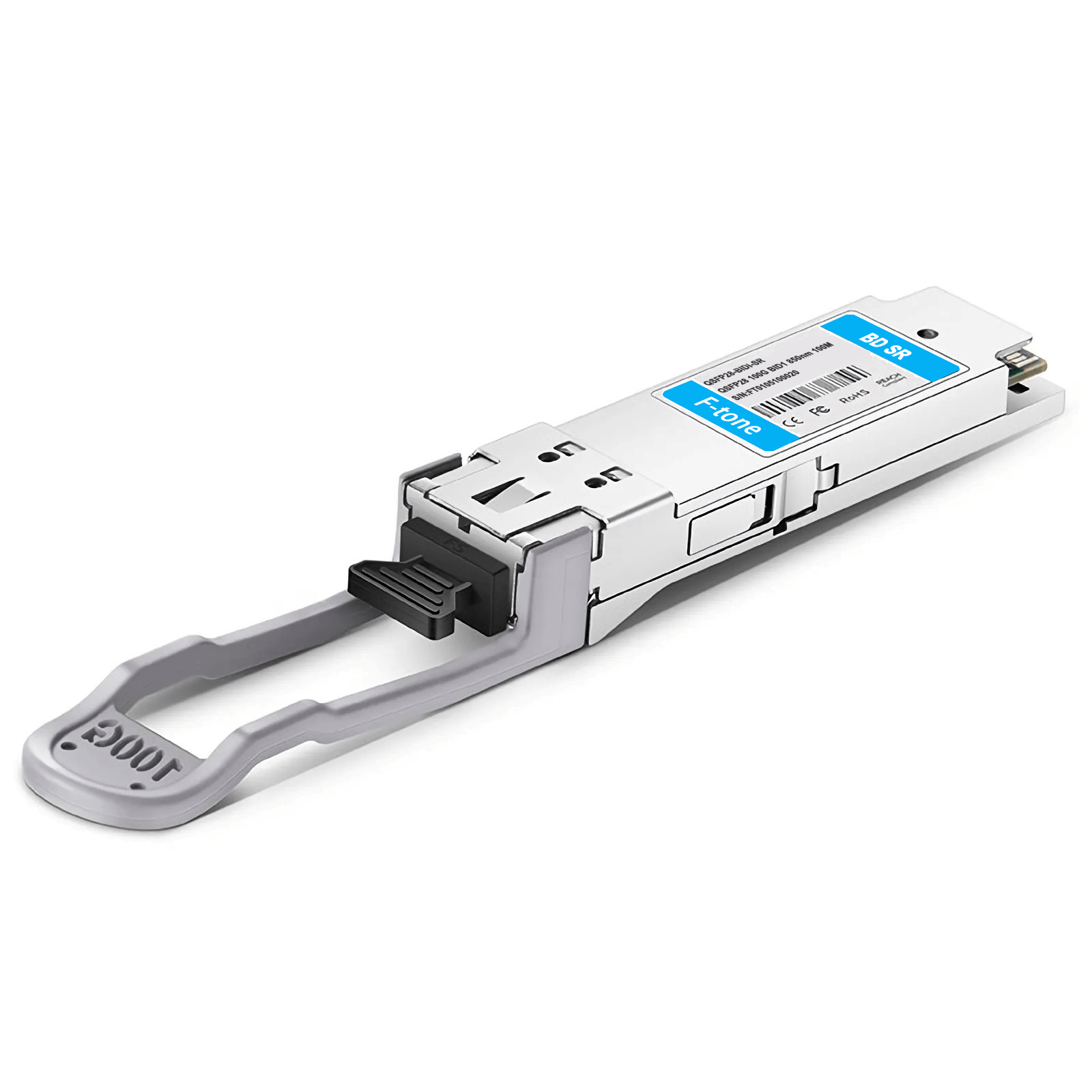

The FT-QSFP28-100G-SR-900 is a 100G bi-directional QSFP28 transceiver from F-tone Networks for multimode fiber. It operates on the 850/900 nm wavelength pair using VCSEL transmitters and PIN receivers, with bi-directional digital diagnostics (DOM). Reach depends on fiber grade: 70 m on OM3, 100 m on OM4 and 150 m on OM5. Transmit power ranges from -5.5 to 3 dBm with receive sensitivity better than -9.5 dBm, and the module operates from 0 to 70 °C. It targets short-reach 100G links inside data centers where a bi-directional form factor simplifies sparing and fiber planning.

Key Features

• 100G over multimode fiber, 850/900 nm VCSEL
• Bi-directional optics with DOM support
• 70 m on OM3, 100 m on OM4, 150 m on OM5
• Transmit power -5.5 to 3 dBm; receive sensitivity better than -9.5 dBm
• VCSEL transmitter, PIN receiver
• Operating temperature 0 to 70 °C

Applications

• Data center short-reach 100G links
• High-density switch and server interconnects
• Enterprise and campus multimode backbones

Specifications

Contact

For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: una@f-tone.com / betty@f-tone.com · WhatsApp: +86 17761163895
