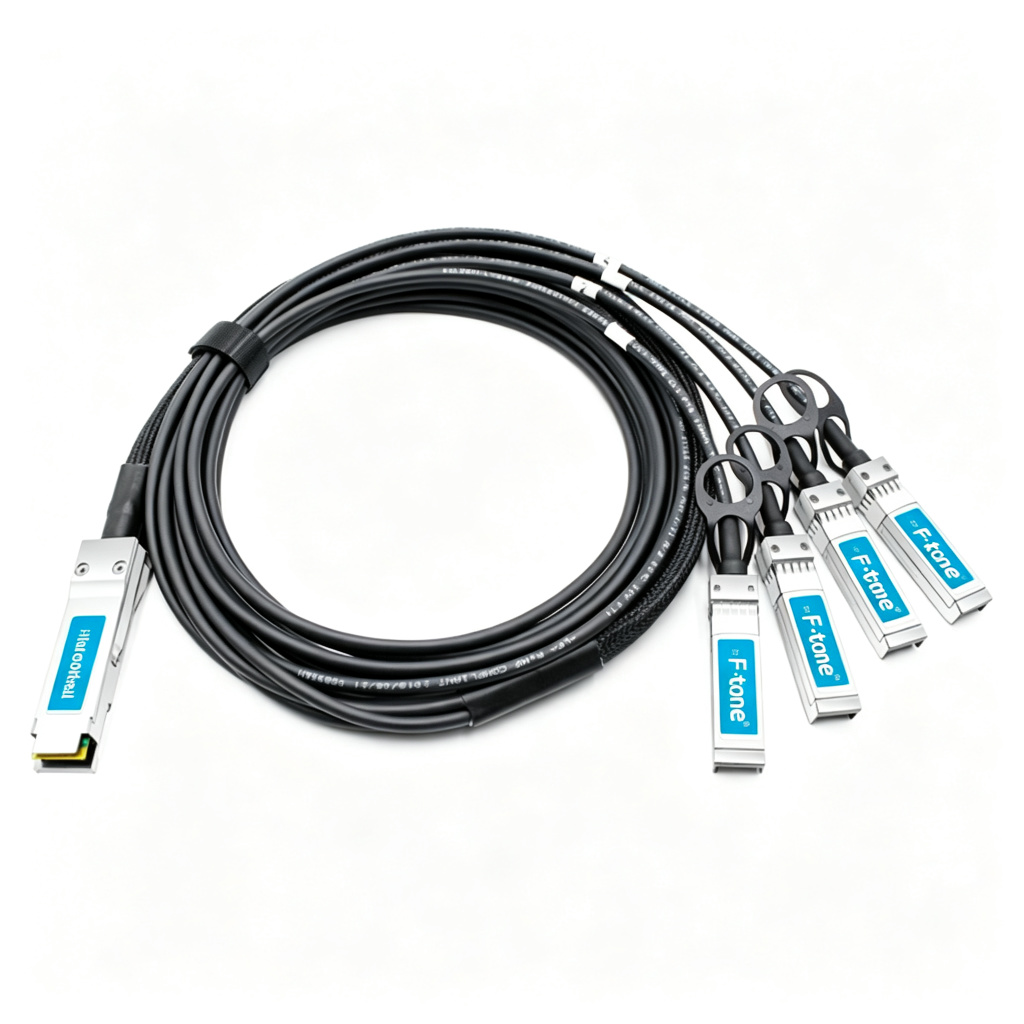

FT-MCP7F00-A01A 100G QSFP28 to 4x25G SFP28 Passive Breakout DAC Cable 1.5m

Overview

The FT-MCP7F00-A01A is a 100G passive breakout direct attach copper cable that splits one QSFP28 port into four 25G SFP28 connections. The 1.5-meter (4.9 ft) assembly uses 30 AWG twinax with a PVC (OFNR) jacket, providing a low-cost, low-power way to fan out 100G switch ports to servers. It supports 100G Ethernet and InfiniBand EDR. Minimum bend radius is 25 mm, and the operating temperature range is 0 to 70 C. The cable carries the MCP7F00-A01A part-number coding for drop-in use with compatible hosts. It is a practical choice for migrating 100G leaf-spine fabrics to 25G server access without adding optical modules.

Key Features

• One 100G QSFP28 fanned out to four 25G SFP28 connections
• 1.5 m (4.9 ft) 30 AWG passive copper twinax
• 100G Ethernet and InfiniBand EDR protocol support
• PVC (OFNR) jacket; minimum bend radius 25 mm
• Operating temperature 0 to 70 C; commercial / industrial / military grades available
• Programmed with MCP7F00-A01A part-number coding

Applications

• 100G switch to 25G server breakout connections
• Leaf-spine fabric migration to 25G access
• High-performance computing cluster cabling

Specifications
