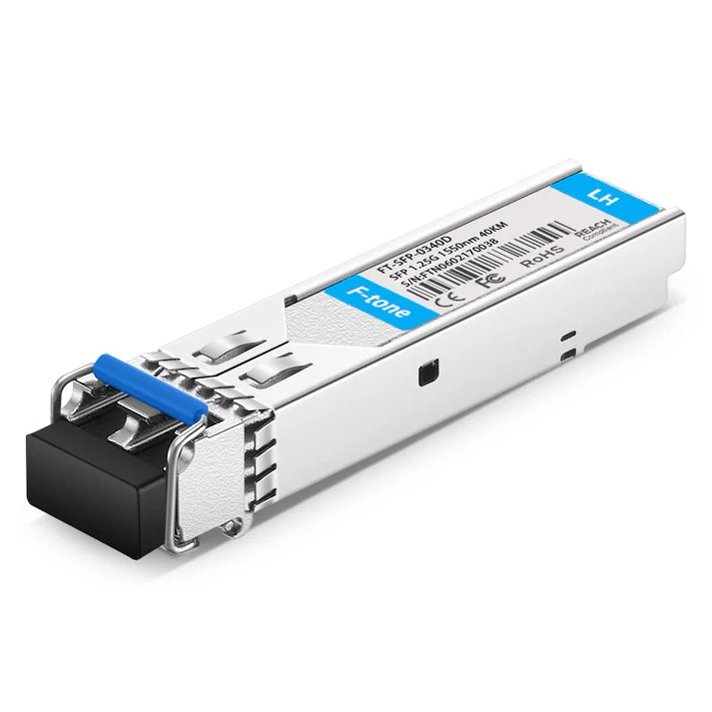

1.25G SFP 1550nm 40km Optical Transceiver

Overview

The FT-SFP-0340D is a 1.25 Gbps SFP optical transceiver operating at 1550 nm, rated for up to 40 km of transmission over standard single-mode fiber. It uses a duplex LC optical interface and draws no more than 1.0 W, making it a power-efficient way to extend Gigabit Ethernet and SONET/SDH links without an intermediate regenerator. Built-in digital diagnostics (DDM/DOM) let operators monitor temperature, voltage, laser bias and received power straight from the host system. Both commercial (0 to 70 C) and industrial (-40 to 85 C) temperature options are available, covering telecom rooms as well as harsher outdoor cabinets.

Key Features

• 1.25 Gbps data rate in a hot-pluggable SFP form factor
• 1550 nm (EX) wavelength, up to 40 km over single-mode fiber
• Duplex LC optical connector
• Digital diagnostics (DDM/DOM) for real-time link monitoring
• Low power consumption: no more than 1.0 W
• Commercial 0 to 70 C or industrial -40 to 85 C temperature options

Applications

• Gigabit Ethernet metro and access links
• SONET/SDH and telecom transport networks
• Point-to-point long-reach enterprise backbones

Specifications
