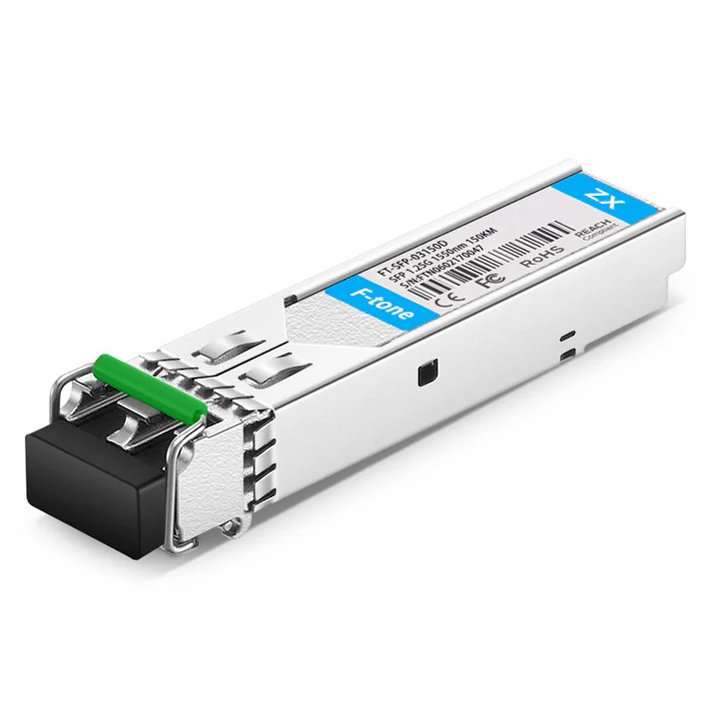

1.25G SFP Transceiver, 1550nm, 150km, DDM

The FT-SFP-03150D extends Gigabit Ethernet links to 150 km, transmitting at 1550 nm over standard single-mode fiber. Built for metro and access network deployments, the module keeps power draw within 1.5 W and exposes a DDM/DOM interface for real-time diagnostics.

A duplex LC connector mates with conventional single-mode plant, and commercial (0 to 70 °C) or industrial (-40 to +85 °C) temperature options cover central offices and remote sites. The 1550 nm window keeps fiber loss low, preserving margin on the longest spans.

Key Features

• 1.25 Gb/s data rate; 150 km over single-mode fiber at 1550 nm
• Duplex LC connector; power consumption ≤1.5 W
• DDM/DOM diagnostic interface for real-time link supervision
• Commercial 0 to 70 °C / industrial -40 to +85 °C options

Applications

• Metro and access network links
• Extended-reach carrier transport
• Remote site and rural backhaul connections

Specifications
