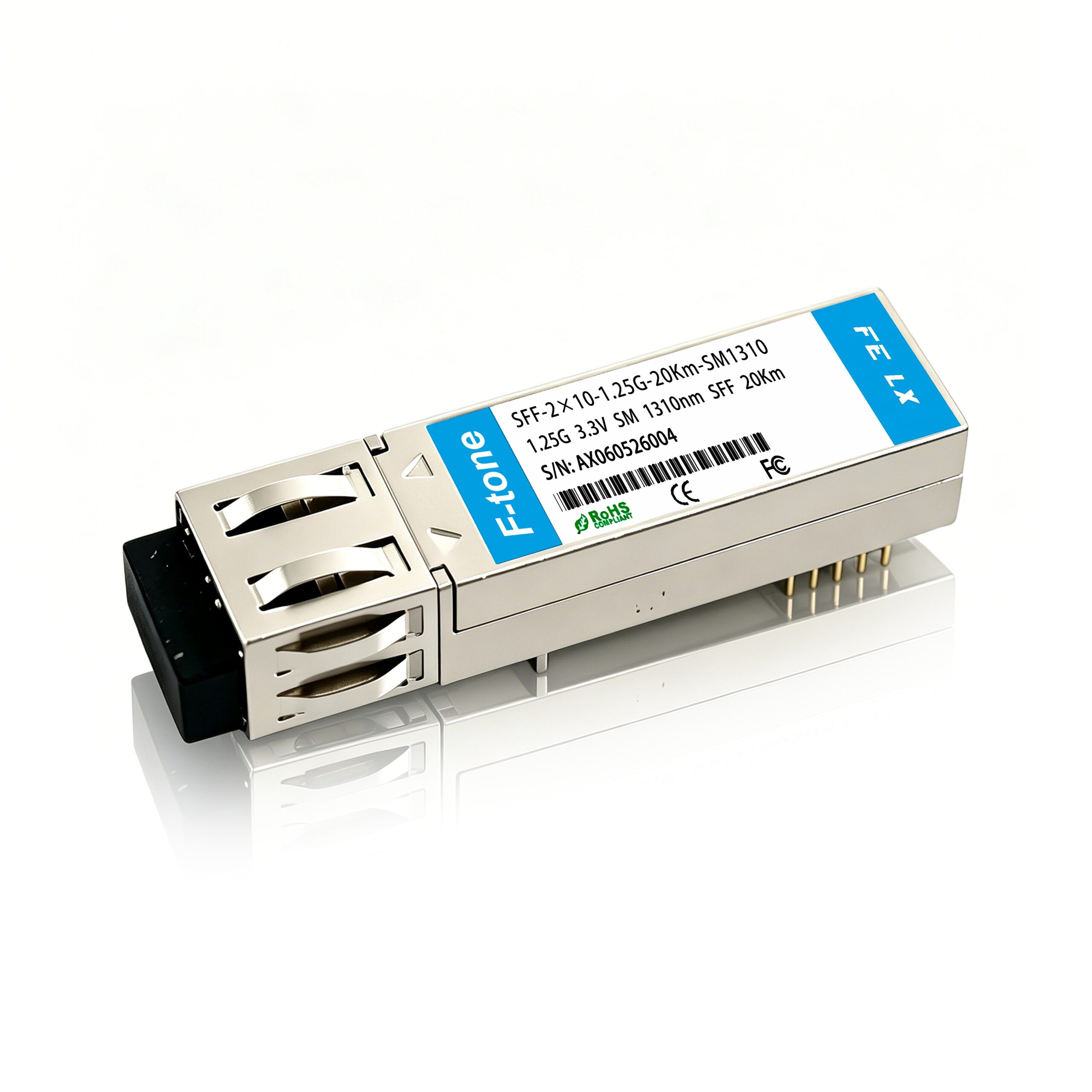

FT-SFPPLUS-1-25G product image - F-tone Networks 1 / 2
MODEL · FT-SFPPLUS-1-25G

1.25G SFP Optical Transceiver Family (0.5-120 km)

F-tone Networks FT-SFPPLUS-1-25G: 1.25G SFP transceiver family, 850/1310/1550 nm options, 0.5 to 120 km reach, duplex LC, DDM support, 3.3 V, RoHS compliant.

Optical Transceivers
ProductNumber
DataRate(Gb/s) | Wavelength(nm) | Reach(km) | LD | TxPower(dBm) | PD | RxSens(dBm) | Temperature(℃)
FTSPD-03M05-85/I
1.25 | 850 | 0.5 | VCSEL | -14~-9 | PIN | <-18 | 0~70/-40~85
FTSPD-03S10-31/I
1.25 | 1310 | 10 | FP | -9~-3 | PIN | <-18 | 0~70/-40~85
FTSPD-03S40-31/I
1.25 | 1310 | 40 | FP | -5~0 | PIN | <-24 | 0~70/-40~85
FTSPD-03S40-55/I
1.25 | 1550 | 40 | DFB | -5~0 | PIN | <-24 | 0~70/-40~85
FTSPD-03S80-55/I
1.25 | 1550 | 80 | DFB | 0~5 | PIN | <-24 | 0~70/-40~85
Request a quote WhatsApp Betty

Reference model FT-SFPPLUS-1-25G in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓

Specifications

Technical parameters

ProductNumberDataRate(Gb/s) | Wavelength(nm) | Reach(km) | LD | TxPower(dBm) | PD | RxSens(dBm) | Temperature(℃)
FTSPD-03M05-85/I1.25 | 850 | 0.5 | VCSEL | -14~-9 | PIN | <-18 | 0~70/-40~85
FTSPD-03S10-31/I1.25 | 1310 | 10 | FP | -9~-3 | PIN | <-18 | 0~70/-40~85
FTSPD-03S40-31/I1.25 | 1310 | 40 | FP | -5~0 | PIN | <-24 | 0~70/-40~85
FTSPD-03S40-55/I1.25 | 1550 | 40 | DFB | -5~0 | PIN | <-24 | 0~70/-40~85
FTSPD-03S80-55/I1.25 | 1550 | 80 | DFB | 0~5 | PIN | <-24 | 0~70/-40~85
FTSPD-03S120-55/I1.25 | 1550 | 120 | DFB | 0~5 | APD | <-31 | 0~70/-40~85
FTSPD-RJ45A/I10/100/1000M | RJ45 | 0.1 | 0~70/-40~85
FTSPD-RJ45B/I1000M | RJ45 | 0.1 | 0~70/-40~85
Supports1.25Gb/s bit rate Duplex LC Connector Hot Pluggable SFP+ form factor Digital diagnostic monitoring supportSingle 3.3V power supply RoHS-10 compliant and lead-free All-metal housing for superior EMI performance Case operating temperature:0℃ to+ 70℃/ -40℃ to +85℃
Product NumberData Rate(Gb/s) | Wavelength(nm) | Reach(km) | LD | Tx Power(dBm) | PD | Rx Sens(dBm) | Temperature(℃)
FSPD-03M05-85/I1.25 | 850 | 0.5 | VCSEL | -14~-9 | PIN | <-18 | 0~70/-40~85
FSPD-03S10-31/I1.25 | 1310 | 10 | FP | -9~-3 | PIN | <-18 | 0~70/-40~85
FSPD-03S40-31/I1.25 | 1310 | 40 | FP | -5~0 | PIN | <-24 | 0~70/-40~85
FSPD-03S40-55/I1.25 | 1550 | 40 | DFB | -5~0 | PIN | <-24 | 0~70/-40~85
FSPD-03S80-55/I1.25 | 1550 | 80 | DFB | 0~5 | PIN | <-24 | 0~70/-40~85
FSPD-03S120-55/I1.25 | 1550 | 120 | DFB | 0~5 | APD | <-31 | 0~70/-40~85
FSPD-FJ45A/I10/100/1000M | FJ45 | 0.1 | / | / | / | / | 0~70/-40~85
FSPD-FJ45B/I1000M | FJ45 | 0.1 | / | / | / | / | 0~70/-40~85
Overview

Product details

Overview

The FT-SFPPLUS-1-25G is the base part number for the F-tone Networks 1.25 Gbps SFP optical transceiver family, covering everything from short multimode patching to long single-mode spans. The FTSPD series table below lists the optical variants: an 850 nm VCSEL version for 0.5 km multimode links, 1310 nm FP versions for 10 km and 40 km single-mode links, and 1550 nm DFB versions for 40 km, 80 km and 120 km spans, plus RJ45 copper versions for 10/100/1000M twisted-pair connections. All variants share the hot-pluggable SFP footprint, a single 3.3 V supply, digital diagnostic monitoring support, and a lead-free RoHS-10 compliant build with an all-metal housing for EMI performance.

Key Features

  • 1.25 Gbps SFP family: 850 nm VCSEL to 1550 nm DFB optical options
  • Reach options from 0.5 km multimode to 120 km single-mode
  • Duplex LC connector on optical variants; RJ45 on copper variants
  • Digital diagnostic monitoring (DDM) support
  • Single 3.3 V power supply; RoHS-10 compliant, lead-free
  • All-metal housing for EMI performance

Applications

  • Gigabit Ethernet access and aggregation networks
  • Enterprise and campus fiber backbones
  • Telecom transport and industrial Ethernet links

Specifications

ParameterValue
Part NumberFT-SFPPLUS-1-25G
Form FactorSFP (hot-pluggable)
FTSPD-03M05-85/I1.25 Gbps | 850 nm | 0.5 km | VCSEL | Tx -14~-9 dBm | PIN | Rx <-18 dBm | 0~70 / -40~85 C
FTSPD-03S10-31/I1.25 Gbps | 1310 nm | 10 km | FP | Tx -9~-3 dBm | PIN | Rx <-18 dBm | 0~70 / -40~85 C
FTSPD-03S40-31/I1.25 Gbps | 1310 nm | 40 km | FP | Tx -5~0 dBm | PIN | Rx <-24 dBm | 0~70 / -40~85 C
FTSPD-03S40-55/I1.25 Gbps | 1550 nm | 40 km | DFB | Tx -5~0 dBm | PIN | Rx <-24 dBm | 0~70 / -40~85 C
FTSPD-03S80-55/I1.25 Gbps | 1550 nm | 80 km | DFB | Tx 0~5 dBm | PIN | Rx <-24 dBm | 0~70 / -40~85 C
FTSPD-03S120-55/I1.25 Gbps | 1550 nm | 120 km | DFB | Tx 0~5 dBm | APD | Rx <-31 dBm | 0~70 / -40~85 C
FTSPD-RJ45A/I10/100/1000M | RJ45 | 0.1 km | 0~70 / -40~85 C
FTSPD-RJ45B/I1000M | RJ45 | 0.1 km | 0~70 / -40~85 C
Supply VoltageSingle 3.3 V
DiagnosticsDigital diagnostic monitoring (DDM)
ComplianceRoHS-10 compliant, lead-free
HousingAll-metal, for EMI performance
Case Operating Temperature0 C to +70 C / -40 C to +85 C

Contact

For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: una@f-tone.com / betty@f-tone.com · WhatsApp: +86 17761163895
