1 / 3MODEL · FT-3-0MM-OM3

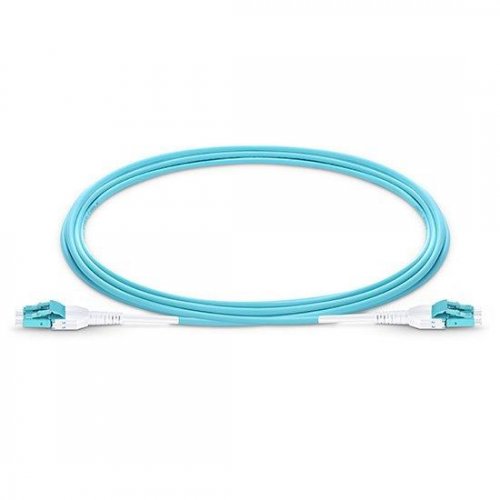

10m LC UPC Duplex OM3 Uniboot Patch, 3.0mm PVC
F-tone Networks 10m LC UPC to LC UPC duplex OM3 Uniboot patch, 3.0mm PVC aqua, IL 0.3dB, RL 50dB, 500-cycle durability. Ask Betty or Una for a quote now.
- Connector-1
- LC UPC
- Connector-2
- LC UPC
- Fiber Mode
- 50/125 m
- Fiber Counts
- 12 Fibers
- Breakout OD
- 3.0mm
- Cable Jacket
- Single Armored
Reference model FT-3-0MM-OM3 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector-1 | LC UPC |
|---|---|
| Connector-2 | LC UPC |
| Fiber Mode | 50/125 m |
| Fiber Counts | 12 Fibers |
| Breakout OD | 3.0mm |
| Cable Jacket | Single Armored |
| Cable Color | Aqua |
| Cable Material | Stainless steel tube, PVC |
| Bend Radius | 12.7~17.7cm |
| Tensile Loads | 100~132 lbs |
| Insertion Loss | 0.3dB |
| Return Loss | 50dB |
| Operating Temperature | -40~75C |
| Storage Temperature | -45~85C |
| 低插入损耗和高回波损耗符合RoHS、REACH和SVHC标准可抵抗不当扭曲造成的损坏广泛应用于CATV/VIDEO、无源光网络PON、FTTX、ATM、SONET/WDM和军事领域 | 不透光的结构 坚固、出色的抗扭结和抗挤压性能 抗压力和啮齿动物咬合 易于安装，设计结构可支持严苛的使用 |
| Designation | Fiber Dia.( m) | Type | Fast Ethernet 100BASE-FX | 1 Gbps Ethernet 1000BASE-SX | 1 Gbps Ethernet 1000BASE-LX | 10 Gbps Ethernet 10GBASE | 40 Gbps Ethernet 40GBASE-SR4/PLRL4 | 100 Gbps Ethernet 100GBASE-SR4/IR4 PSM |
| OM3 (Laser Optimized) | 50/125 | Multimode | 2000m | 550m | 550m | 300m | 100m | 100m |
| OM4 (Laser Optimized) | 50/125 | Multimode | 2000m | 550m | 550m | 400m | 150m | 150m |
| Singlemode | 9/125 | Singlemode | 2000m | 5km at 1310nm | 5km at 1310nm | 10km at 1310nm | 1km at PLRL4 | 2km at IR4 PSM |
| Connector Type | LC Uniboot |
| Cable Diameter | 3.0 mm |
| Jacket Color | Aqua |
| Polish | UPC/UPC |
| Jacket Material | PVC |
| Fiber Type | Duplex |
| Cable Pull-out Force | 100N |
| Durability | 500 Cycles |
| Ferrule Hole Sizes | 126.0+1/-0 m Concentricity | 1.0 m |
Overview
Product details
Aqua OM3 duplex under an LC Uniboot nose covers short 10G multimode hops. PVC at 3.0 mm OD spans the ten-metre run. Shared Uniboot budget: IL 0.3 dB, RL 50 dB, pull-out 100 N, 500 mating cycles.
Key Features
- Matching LC UPC Uniboot ends
- OM3 50/125 multimode duplex
- PVC aqua jacket at 3.0 mm
- IL 0.3 dB / RL 50 dB
- Pull-out 100 N, 500-cycle durability
Applications
- 10G OM3 short-reach patching
- LC Uniboot multimode interconnects
Specifications
| Parameter | Value |
|---|---|
| Connector | LC UPC |
| Connector-2 | LC UPC |
| Fiber Mode | 50/125 m |
| Breakout OD | 3.0mm |
| Cable Color | Aqua |
| Insertion Loss | 0.3dB |
| Return Loss | 50dB |
| Operating Temperature | -40~75C |
| Storage Temperature | -45~85C |
| Connector Type | LC Uniboot |
| Cable Diameter | 3.0 mm |
| Jacket Color | Aqua |
| Polish | UPC/UPC |
| Jacket Material | PVC |
| Fiber Type | Duplex |
| Cable Pull-out Force | 100N |
| Durability | 500 Cycles |
