1064/980nm Optical Filter WDM

Overview

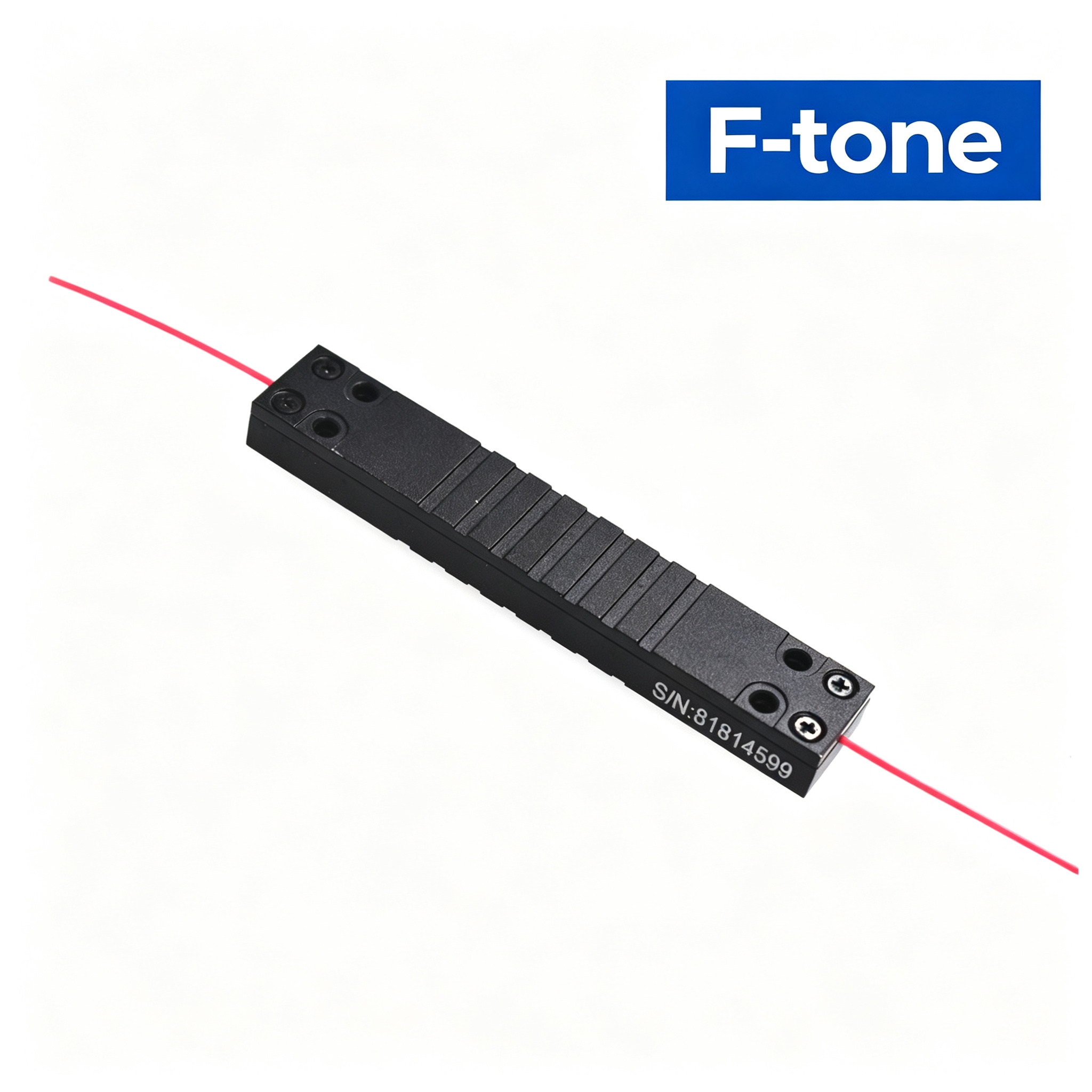

The FT-1064-20 is a filter WDM that passes 1064 nm through the transmission channel while reflecting 980 nm through the reflection channel. Transmission insertion loss stays within 0.8 dB and reflection within 0.6 dB, with 25 dB of isolation at the reflection wavelength and 15 dB at the transmission wavelength. Channel flatness holds to 0.4 dB, and thermal stability is tight: 0.003 nm per °C for wavelength and 0.005 dB per °C for insertion loss. The device handles 0.3 W to 5 W of continuous power and operates from 0 to +70 °C. It suits CATV distribution, CWDM and DWDM modules, and passive optical networks.

Key Features

• Transmission channel 1064 nm with 0.8 dB maximum insertion loss
• Reflection channel 980 nm with 0.6 dB maximum insertion loss
• 25 dB minimum transmission isolation at reflection wavelength; 15 dB reverse
• Channel flatness within 0.4 dB; tight thermal stability (0.003 nm/°C wavelength)
• Continuous power handling 0.3 W to 5 W; 50 dB minimum return loss
• Operating temperature 0 to +70 °C; storage -40 to +85 °C

Applications

• CATV distribution systems
• CWDM and DWDM modules
• EPON and GPON networks
• Forward and backward pump combining in fiber amplifiers

Specifications
