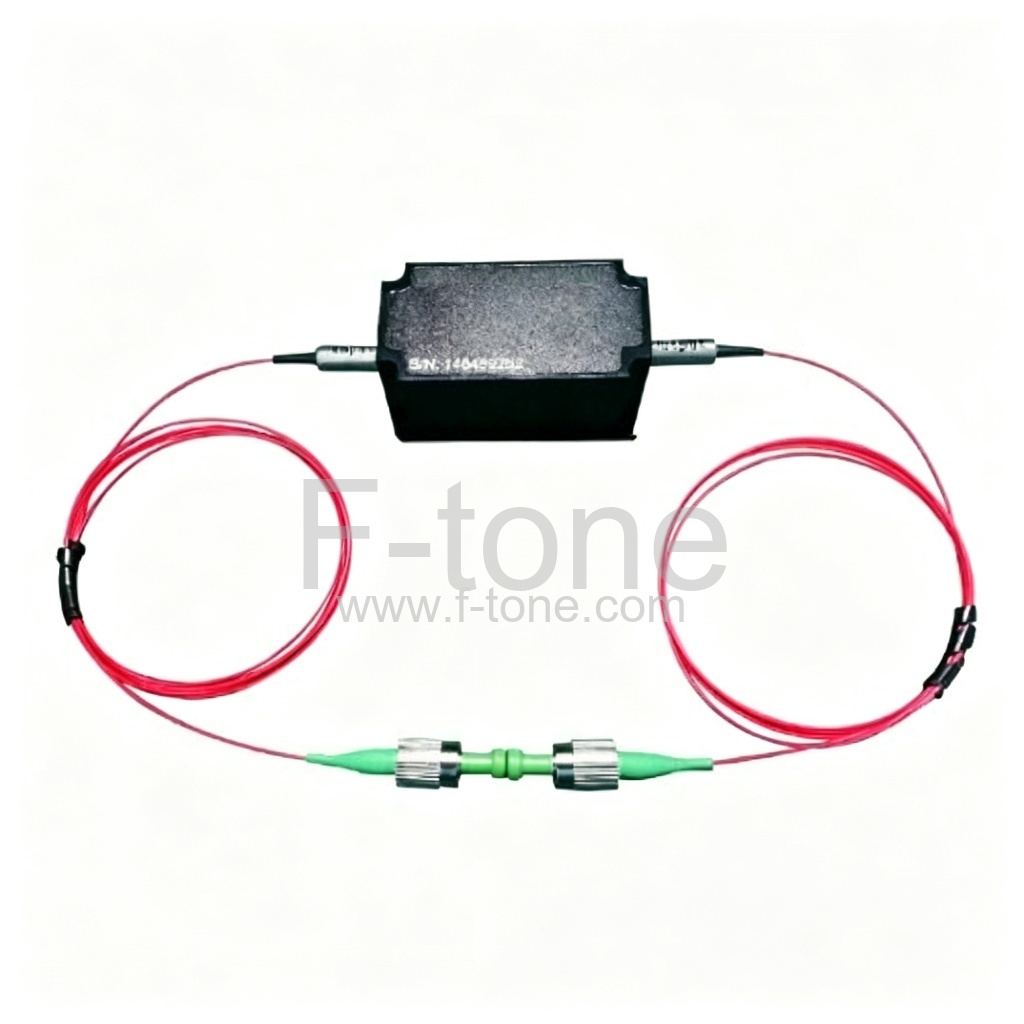

MODEL · FT-751
10W Single-Stage HPIS Isolator (CN Listing)
F-tone Networks Chinese-catalog 10W single-stage HPIS isolator for 1310/1550nm with selectable fiber, stage and connector bins. Ask Betty or Una for codes.
- 48
- 28
- 58
- 42
- Type
- Wavelength | Fiber | Power | Pigtail Type | Fiber Length | Connector
- HPIS
- 1=1310nm | 1=SMF-28e | 1=Single Stage | 1=250um bare fiber | 1=0.8m | 0=None
- HPPMIS
- 2=1480nm | 2= PM1310 Panda Fiber | 2=Dual Stage | 2=900um Loose Tube | S=Specify | 1=FC/UPC
- 3=1550nm
- 3= PM1550 Panda Fiber
Reference model FT-751 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| 48 | 28 |
|---|---|
| 58 | 42 |
| Type | Wavelength | Fiber | Power | Pigtail Type | Fiber Length | Connector |
| HPIS | 1=1310nm | 1=SMF-28e | 1=Single Stage | 1=250um bare fiber | 1=0.8m | 0=None |
| HPPMIS | 2=1480nm | 2= PM1310 Panda Fiber | 2=Dual Stage | 2=900um Loose Tube | S=Specify | 1=FC/UPC |
| 3=1550nm | 3= PM1550 Panda Fiber |
| 2=3mm Loose Cable | 2=FC/APC |
| S=Specify | S=Specify | 3=SC/UPC |
| Stage | Dual | Single |
| CenterWavelength | nm | 1310or1550 |
| OperatingWavelengthRang | nm | ±20 |
| Typ.InsertionLossat23℃ | 0.4 / 0.35 dB |
| 0.4 | 0.35 |
| Max.InsertionLossat23℃ | 0.55 / 0.5 dB |
| 0.55 | 0.5 |
| Typ.Isolation | 58 / 42 dB |
| Min.Isolation | 48 / 28 dB |
| ExtinctionRatio | dB | 23 |
| Max.PDLat23℃(forSMF-28eonly) | dB | 0.15 |
| ReturnLoss(Input/output) | dB | 50 |
| Max.OpticalPower(CW) | W | 1,2,3,5,10orspecify |
| Max.TensileLoad | N | 5 |
| FiberType | PM1310PandaFiber | PM1550PandaFiber |
| OperatingTemperature | ℃ | -5~+70 |
| StorageTemperature | ℃ | -40~+85 |
| PackageDimensions | mm | 5.5*35 |
Overview
Product details
Chinese-catalog twin of the 10 W HPIS isolator. Ordering bins cover wavelength, SMF-28e or PM panda fiber, single/dual stage, pigtail OD and connector nose. Optical caps stay centred on 1310/1550 nm with the same insertion and isolation windows listed for the English twin.
Key Features
- HPIS high-power isolator (CN listing)
- 1310/1550 nm centre options
- SMF-28e or PM panda fiber bins
- Single or dual stage selectable
- Connector and pigtail OD options
Applications
- OEM high-power isolator integration
- CN-catalog 1310/1550 nm source protection
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength | nm | 1310or1550 |
| Operating Wavelength Range | nm | ±20 |
| Typ. Insertion Loss at 23C | 0.4 / 0.35 dB |
| Max. Insertion Loss at 23C | 0.55 / 0.5 dB |
| Typ. Isolation | 58 / 42 dB |
| Min. Isolation | 48 / 28 dB |
| Extinction Ratio | dB | 23 |
| Max.PDLat23℃(forSMF-28eonly) | dB | 0.15 |
| Return Loss (Input/Output) | dB | 50 |
| Max. Optical Power (CW) | W | 1,2,3,5,10orspecify |
| Max. Tensile Load | N | 5 |
| Operating Temperature | ℃ | -5~+70 |
| Storage Temperature | ℃ | -40~+85 |
| Package Dimensions | mm | 5.5*35 |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
