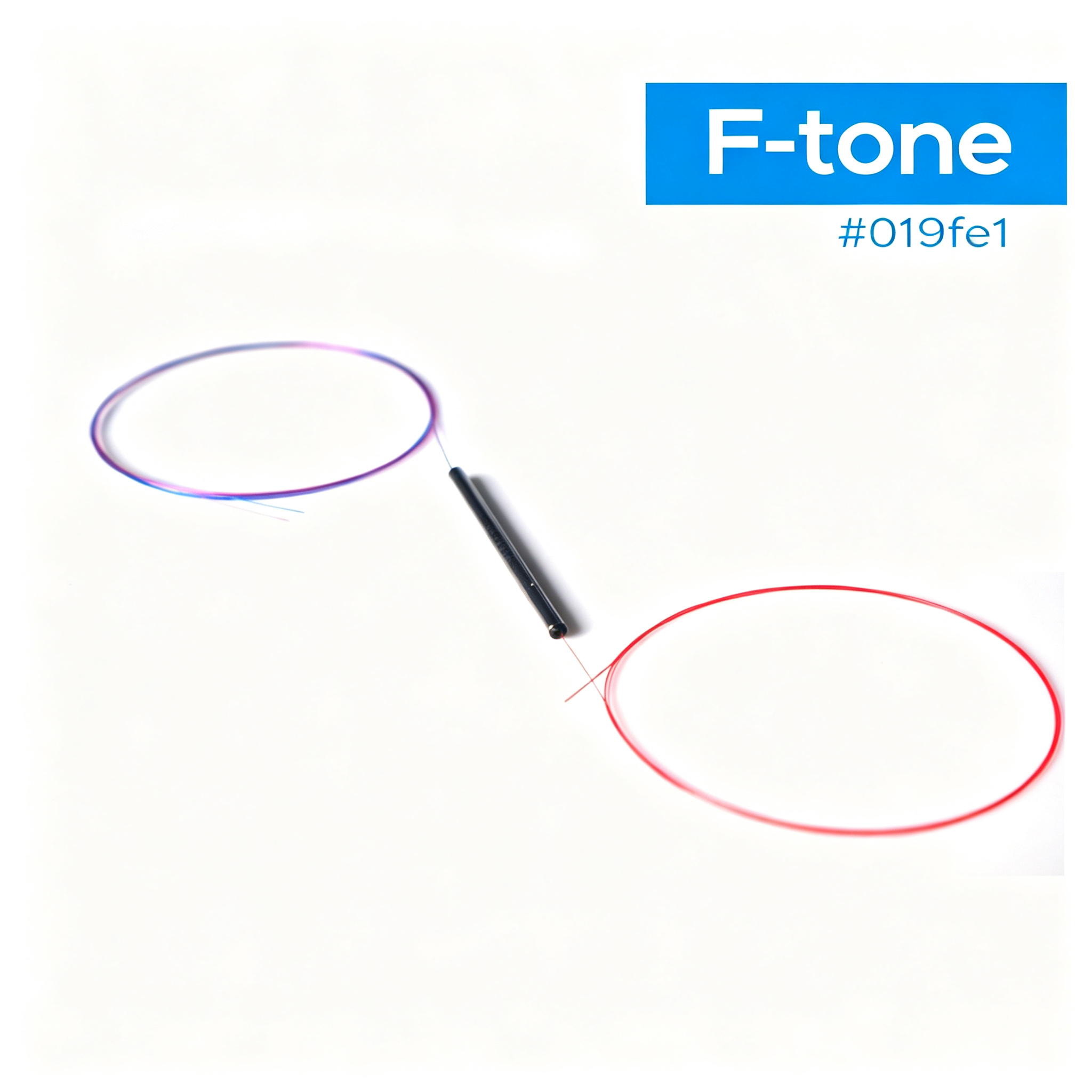

1064nm PM Fused Fiber Coupler 1x2 and 2x2

Overview

The FT-1064-8 is a polarization-maintaining fused fiber coupler for 1x2 and 2x2 layouts, offered at 1064, 1030 and 980 nm center wavelengths with ±15 nm bandwidth. Excess loss stays within 0.5 dB, the extinction ratio at 20 dB minimum and directivity at 50 dB minimum. Tap ratios run from 1/99 to 50/50 with stated tolerances, so monitoring taps and even splits stay within design margins. Continuous power handling reaches 3 W through PM Panda fiber. Two package styles cover bare fiber, 900 μm loose tube and 2/3 mm jacket builds across -5 to +75 °C.

Key Features

• PM fused fiber coupler at 1064, 1030 and 980 nm; ±15 nm operating bandwidth
• 1x2 and 2x2 layouts; PM Panda fiber
• Maximum excess loss 0.5 dB; minimum extinction ratio 20 dB
• Minimum directivity 50 dB; return loss 55 dB
• Tap ratios 1/99 to 50/50 with stated tolerances
• 3 W maximum CW power; operating range -5 to +75 °C

Applications

• Coherent communication links
• Optical power monitoring
• Fiber sensor networks

Specifications

For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: una@f-tone.com / betty@f-tone.com · WhatsApp: +86 17761163895
