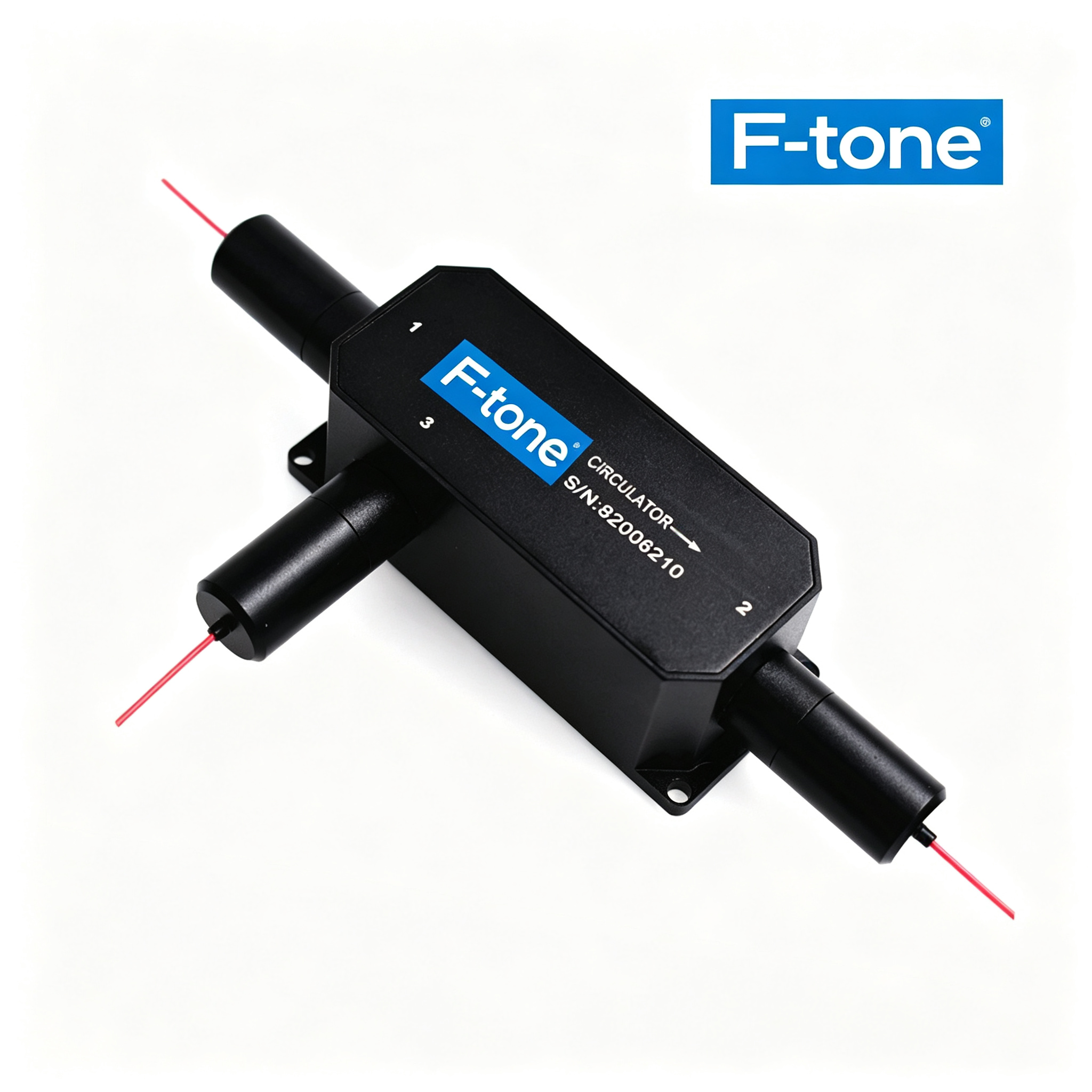

1064nm PM High Power Three-Port Optical Circulator

Overview

Where polarization must survive the round trip, the FT-1064-12 keeps the 1064 nm circulator path polarization-maintaining end to end. Light into port 1 leaves through port 2, and light arriving at port 2 is redirected to port 3, so a PM amplifier forwards its output while back-reflections are diverted from the seed. PM versions hold a minimum 20 dB extinction ratio at 23 °C, keeping polarization-dependent performance predictable in fiber lasers and sensing chains. Peak isolation is 25 dB typical with 1.3 dB insertion loss (1.5 dB maximum). Average power handling spans 0.3–20 W with 10 kW peaks for nanosecond pulses. Pigtail choices include PM980, Hi1060, PM1060L and PLMA-GDF-10/125-M, in a 70x28x26 mm package operating from +10 to +50 °C.

Key Features

• Three-port PM optical circulator at 1064 nm center wavelength
• Typical peak isolation 25 dB; operating wavelength range ±5 nm
• Typical insertion loss 1.3 dB, maximum 1.5 dB at 23 °C
• Average power handling 0.3 W to 20 W; 10 kW peak for ns pulses
• Fiber options: PM980, Hi1060, PM1060L and PLMA-GDF-10/125-M
• Minimum return loss 45 dB; minimum cross talk 45 dB; +10 to +50 °C operating

Applications

• Fiber amplifier assemblies
• Optical test and measurement instruments
• Medical equipment

Specifications
