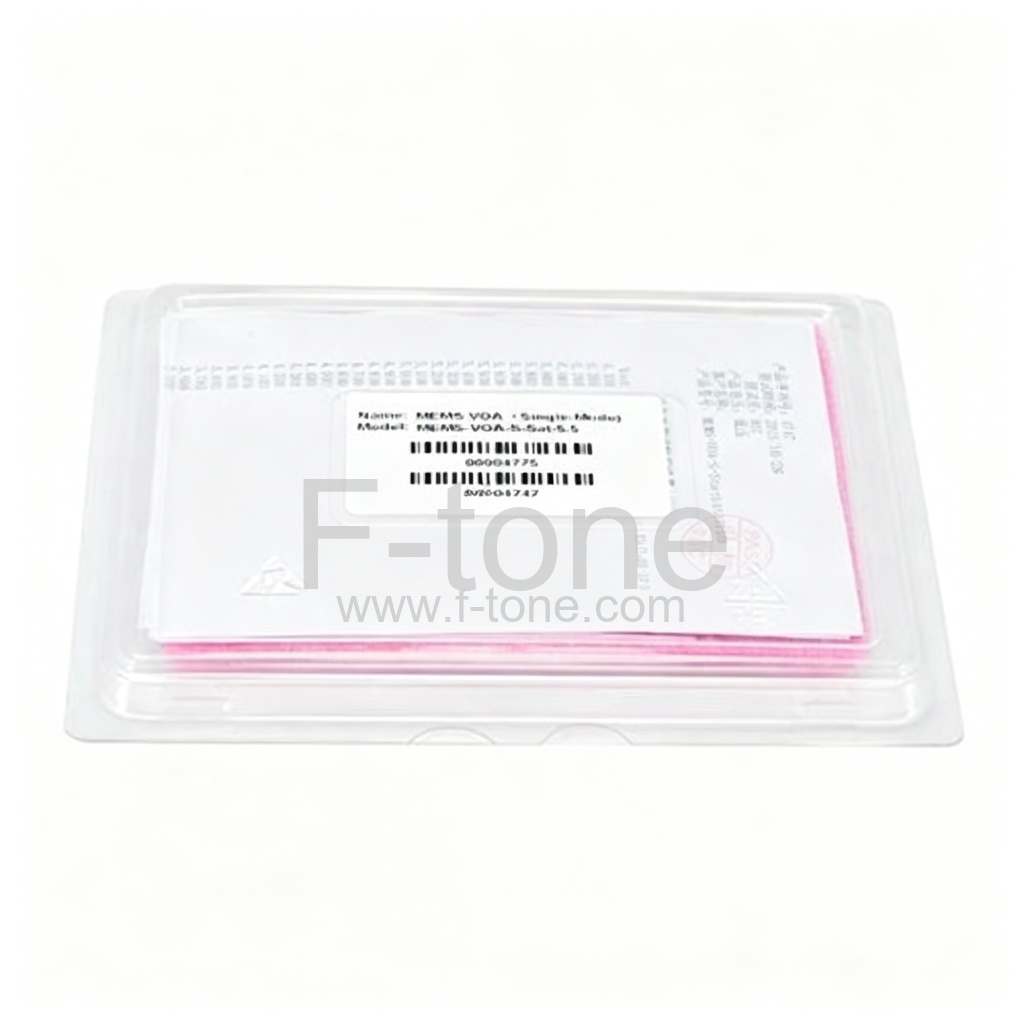

0-40dB Single-Channel Standard MEMS Variable Optical Attenuator

The FT-764 is a standard single-channel MEMS variable optical attenuator built for power control and channel management in fiber networks. It operates across 1530-1610 nm (C+L band) with continuous attenuation adjustment over a 0-40 dB range, driven by 5.2 V or 15 V. Insertion loss is limited to 0.7 dB maximum (0.5 dB typical) excluding connectors, return loss is at least 55 dB, and PMD stays within 0.1 ps. The FT-764 switches in 2 ms or less (1 ms typical), handles 300 mW of optical power and consumes no more than 2 mW, suiting instrumentation and receiver protection duties.

Key Features

• 0-40 dB attenuation range with continuous resolution, 5.2 V or 15 V drive
• Operating wavelength 1530-1610 nm (C+L band); other wavelengths available
• Insertion loss ≤0.7 dB (0.5 dB typical) excluding connectors; wavelength dependent loss ≤0.3 dB below 0 dB attenuation
• Return loss ≥55 dB; PMD ≤0.1 ps; blocking state 20 dB (dark type)
• Response time ≤2 ms (1 ms typical); optical power handling 300 mW
• Power consumption ≤2 mW; operating temperature 0 to 70 °C; storage -40 to 85 °C

Applications

• Optical power control, equalization and regulation
• Receiver protection
• Instrumentation and test systems
• Channel on/off switching
