1064nm Fused Type PM Fiber WDM (1x2, 2x2)

Overview

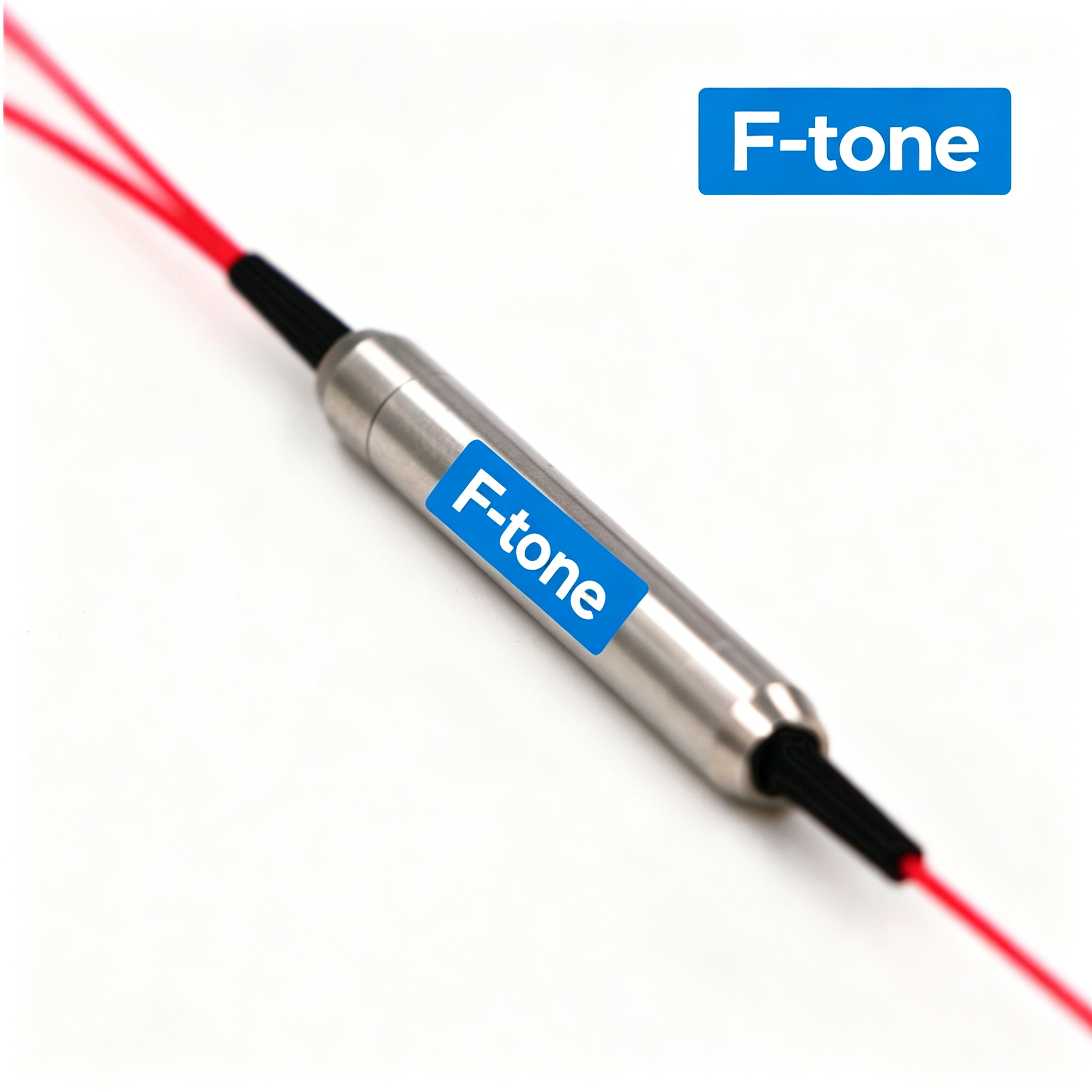

The FT-1064-6 is a 1064 nm fused-type PM fiber WDM available in 1x2 and 2x2 configurations. It combines or separates the 980 nm pump and 1064 nm signal wavelengths over a ±15 nm operating bandwidth, using PM panda fiber throughout for stable polarization handling. Rated values include 0.8 dB maximum insertion loss on both signal and pump ports, 18 dB minimum extinction ratio, 13 dB minimum isolation, 55 dB minimum directivity and 50 dB maximum return loss, with 3 W CW power handling. The φ3x70 mm package supports bare fiber or 900 μm loose tube pigtails. Ordering options for wavelength, type, fiber, package, pigtail, length and connectors are listed below.

Key Features

• 1064 nm fused-type PM fiber WDM, 1x2 and 2x2 configurations
• Combines or separates 980 nm pump and 1064 nm signal wavelengths
• ±15 nm operating bandwidth with PM panda fiber
• 0.8 dB max insertion loss on signal and pump ports
• 18 dB min extinction ratio, 13 dB min isolation, 55 dB min directivity
• 3 W CW power handling, φ3x70 mm package

Applications

• EDFA pump coupling
• Fiber lasers
• Fiber sensors
• Coherent communication systems
• Optical testing instruments

Specifications
