1-Channel HD-CVI Fiber Optic Transceiver, 0–20 km

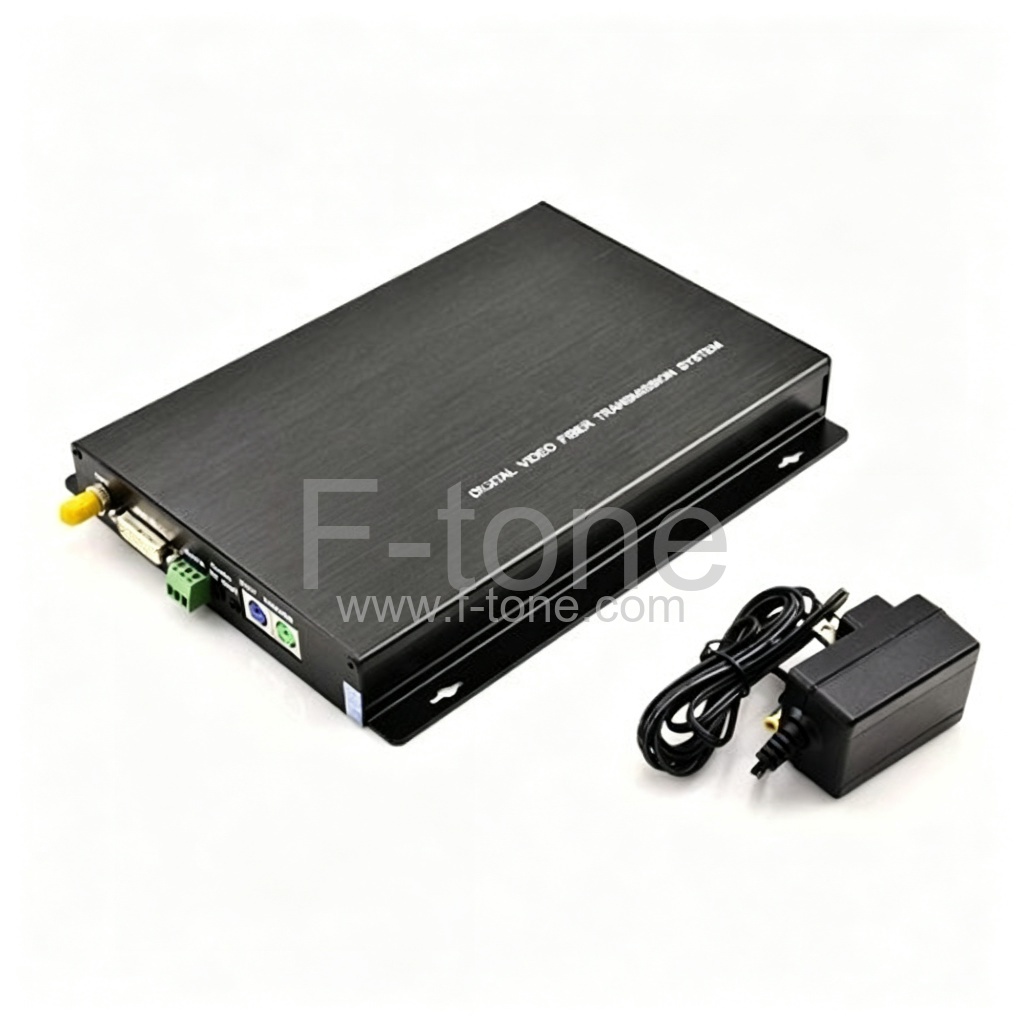

The FT-336 from F-tone Networks is a 1-channel HD-CVI fiber optic video transceiver that extends high-definition video over fiber. It carries one channel 0 to 550 m on multimode fiber or 0 to 20 km on single-mode fiber, operating at 1310 or 1550 nm. The video interface uses BNC 75 Ω connectors with 45 MHz bandwidth and 108 MHz sampling at 10-bit. Power comes from a DC 5 V supply at 2 A, with consumption of 6 W or less, and the unit is rated from -40 to 75 °C with an MTBF of 100000 hours. In a 183 by 154 by 30 mm wall-mount enclosure, it suits HD-CVI surveillance upgrades, building security and industrial monitoring over long fiber spans.

Key Features

• 1-channel HD-CVI video over fiber; 0–550 m multimode, 0–20 km single-mode
• 1310 or 1550 nm; output -8 to 3 dBm, receiver sensitivity -25 dBm
• BNC 75 Ω; 45 MHz video bandwidth, 108 MHz 10-bit sampling
• DC 5 V power at 2 A, 6 W or less; -40 to 75 °C
• MTBF 100000 hours or more; 183 x 154 x 30 mm wall-mount enclosure

Applications

• HD-CVI surveillance system upgrades
• Building and perimeter security
• Industrial monitoring over long fiber spans
