E1 Multiplexer: 1-16 Channel Phone, 4FE Ethernet, 4RS232, 19-Inch 1U

Overview

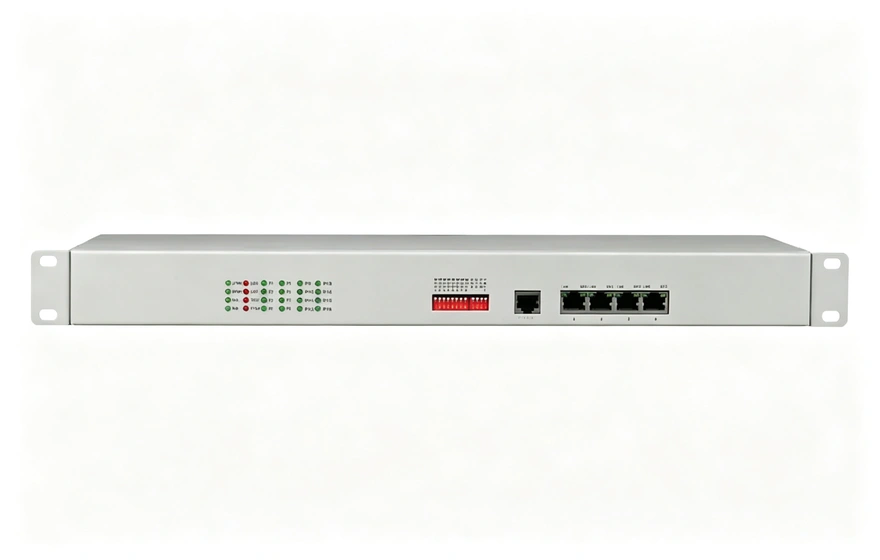

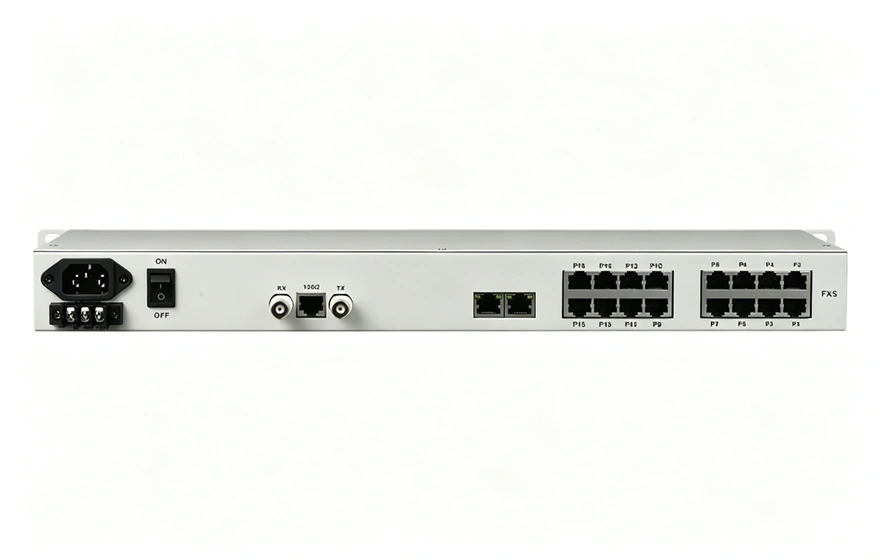

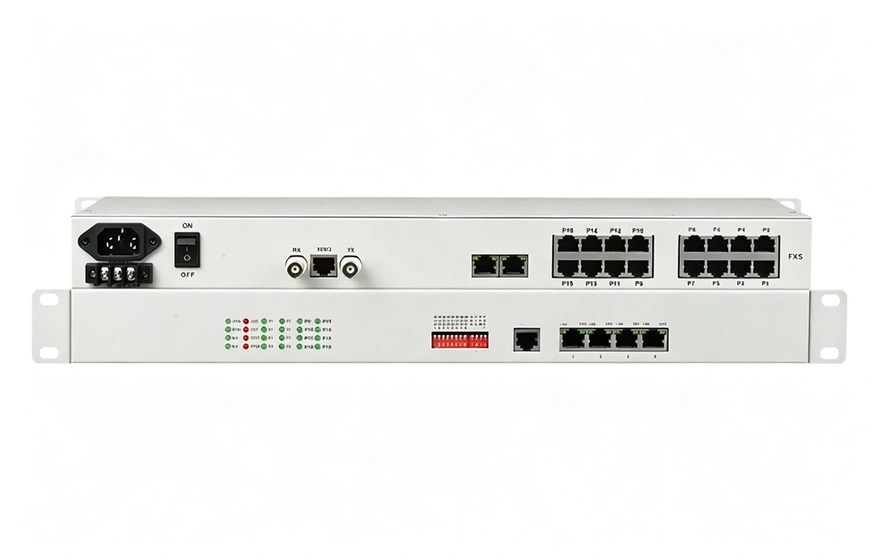

The FT-1105 from F-tone Networks is an E1 multiplexing device that takes one E1 access port and breaks it out into 1 to 16 telephone outputs, four serial ports (RS232/422/485 selectable) and four Ethernet ports. A common use case is on a rented E1 line: the operator can open several phone channels on the existing line so headquarters and branch offices call each other at no toll cost. The electrical section is built on an all-digital circuit design, giving stable, reliable operation with low power consumption in a small footprint that is easy to install and maintain.

Key Features

• One E1 access port with 1-16 telephone channel outputs
• 4 serial ports with RS232/422/485 selectable interface
• 4 Ethernet ports for data networking
• All-digital electrical design: stable operation, low power, high integration
• 19-inch 1U chassis, compact and easy to install and maintain

Applications

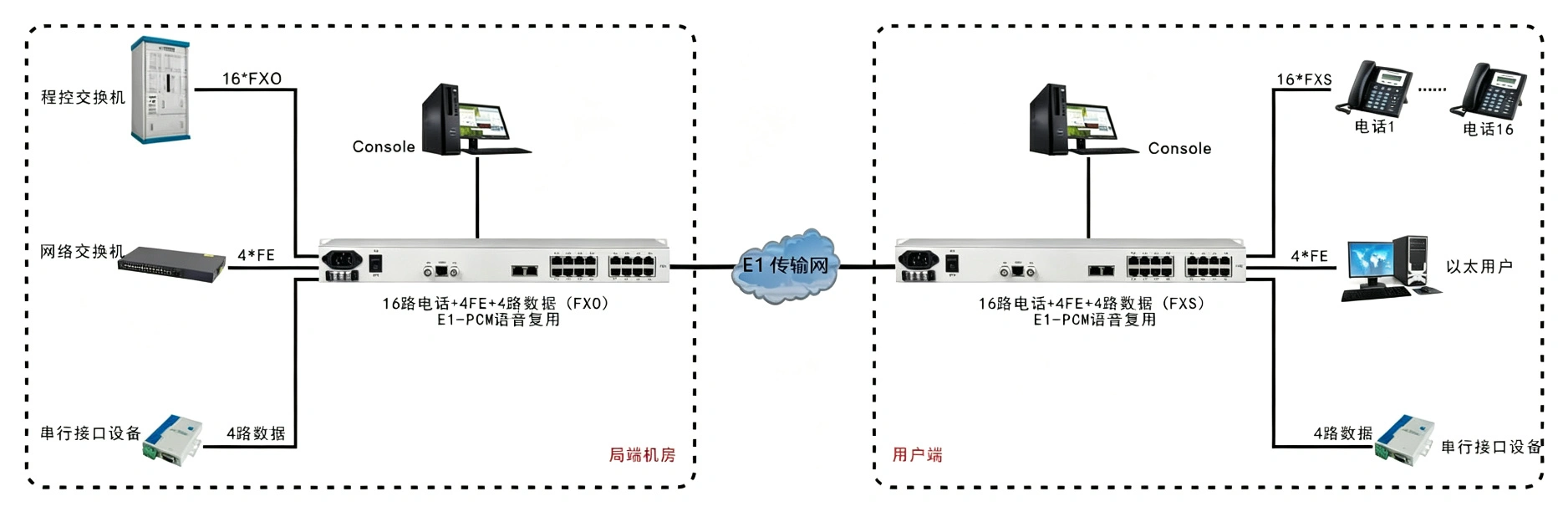

• Toll-free branch-to-branch voice over rented E1 lines
• Enterprise voice and data multiplexing over E1 access
• Telecom carrier leased-line service delivery

Specifications

Contact

For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: una@f-tone.com / betty@f-tone.com · WhatsApp: +86 17761163895
