Gigabit Dual Fiber 850nm 550m Mini Media Converter

Overview

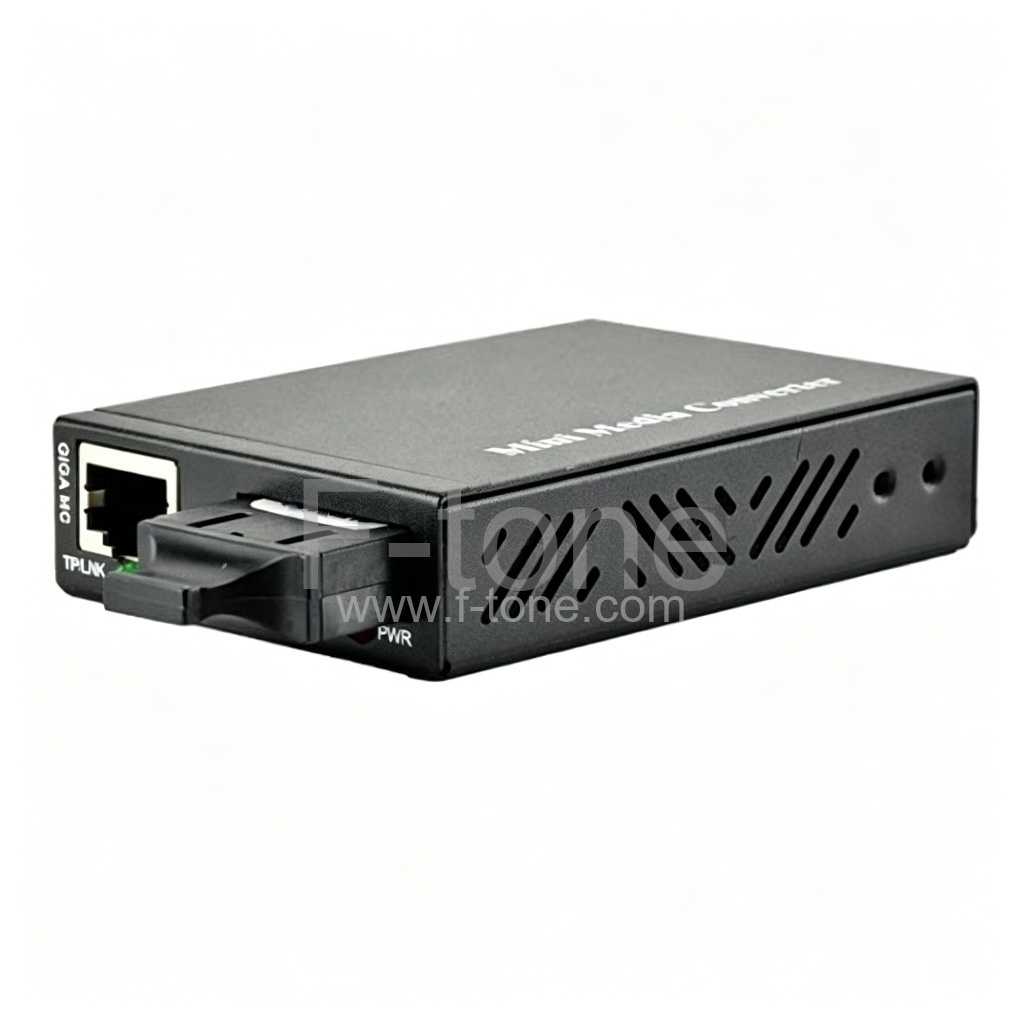

The FT-785 is a mini gigabit Ethernet media converter that bridges 10/100/1000BASE-T copper networks with dual-fiber 850 nm optical links. It operates at 10, 100 and 1000 Mbps and supports transmission distances up to 550 meters over fiber. Power comes from an external supply accepting DC 5 to 12 V, with maximum consumption of 3 W. The converter is housed in a compact black iron case measuring 60 x 20 x 90 mm and weighing approximately 150 g, and it operates from 0 to 40 °C with free air convection cooling.

Key Features

• 10/100/1000 Mbps data rates for copper-to-fiber conversion
• Dual-fiber 850 nm optical interface with up to 550 m reach
• External power supply with DC 5-12 V input
• Maximum power consumption of 3 W
• Compact black iron enclosure: 60 x 20 x 90 mm, approx. 150 g
• Operating temperature 0 to 40 °C; free air convection cooling

Applications

• Gigabit LAN extension between buildings on a campus
• Enterprise network fiber backbone integration
• FTTx and access network node backhaul
• Small office and retail network upgrades

Specifications

Contact

For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: una@f-tone.com / betty@f-tone.com · WhatsApp: +86 17761163895
