MODEL · FT-10KM-2

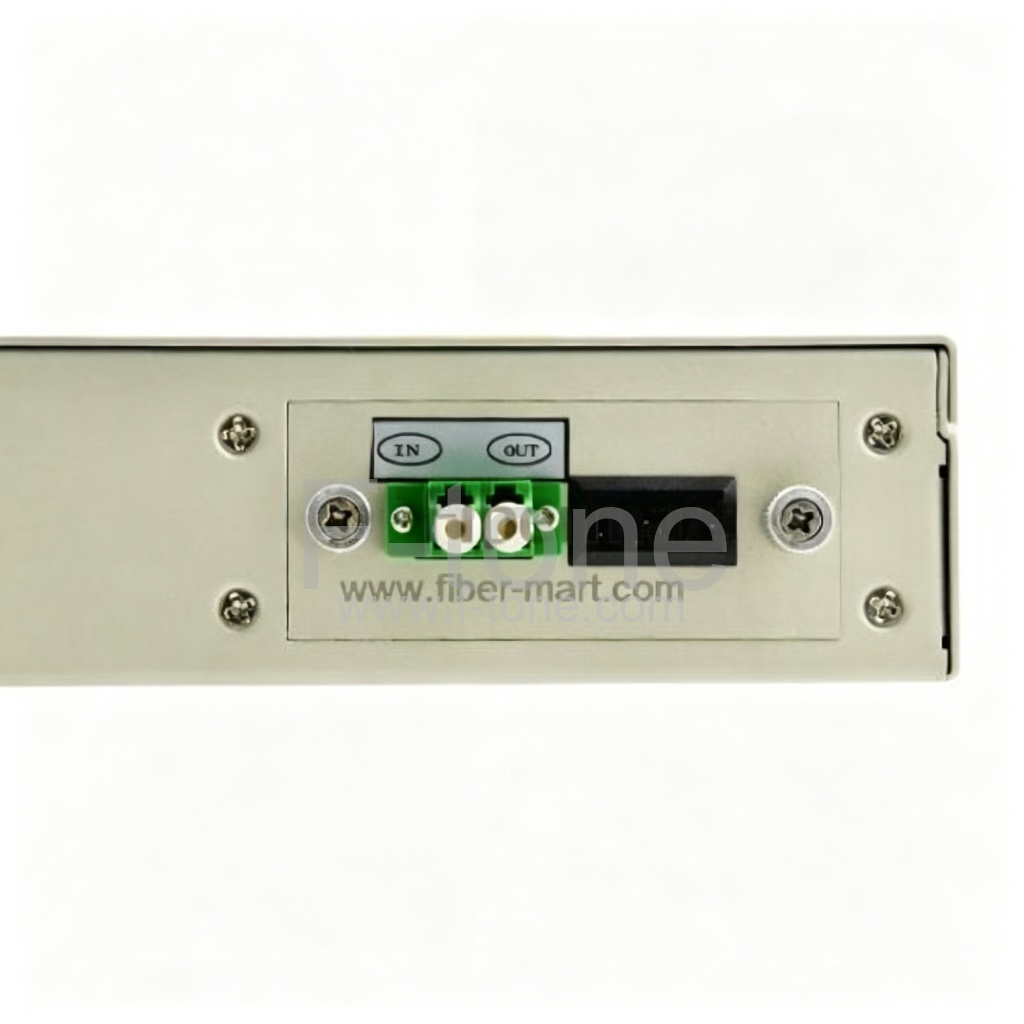

10km Passive DCM, 19-inch Rack, Full C-Band, LC/SC/FC
Passive 10km dispersion compensation module from F-tone Networks, 1RU 19-inch chassis, full C-band, UPC or APC connectors, series data to 140km. Get a quote.
- Description
- 10 km Dispersion compensation module
- Wavelength(nm) Port/Link
- Full C-Band coverage
- Range (KM)
- 10KM
- Connectors Port/Link
- LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC
- Housing
- 1RU 19" rack mount
- Series Models
- FT-DCM-10 / FT-DCM-20 / FT-DCM-30 / FT-DCM-40 / FT-DCM-50 / FT-DCM-60 / FT-DCM-70 / FT-DCM-80 / FT-DCM-90 / FT-DCM-100 / FT-DCM-110 / FT-DCM-120 / FT-DCM-140
Reference model FT-10KM-2 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Description | 10 km Dispersion compensation module |
|---|---|
| Wavelength(nm) Port/Link | Full C-Band coverage |
| Range (KM) | 10KM |
| Connectors Port/Link | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC |
| Housing | 1RU 19" rack mount |
| Series Models | FT-DCM-10 / FT-DCM-20 / FT-DCM-30 / FT-DCM-40 / FT-DCM-50 / FT-DCM-60 / FT-DCM-70 / FT-DCM-80 / FT-DCM-90 / FT-DCM-100 / FT-DCM-110 / FT-DCM-120 / FT-DCM-140 |
| Series Performance Table Part No. | FT-DCM-20 | FT-DCM-40 | FT-DCM-60 | FT-DCM-80 | FT-DCM-100 | FT-DCM-120 | FT-DCM-140 |
| Compensation Distance (km) | 20 | 40 | 60 | 80 | 100 | 120 | 140 |
| Dispersion(ps/nm) | -340±3% | -680±3% | -1020±3% | -1360±3% | -1700±3% | -2040±3% | -2380±4% |
| Dispersion Slope (ps/nm*nm) | -0.66 | -1.33 | -2 | -2.67 | -3.3 | -4.1 | -4.8 |
| Insertion Loss (dB) | ≤2.9 | ≤4.8 | ≤6.8 | ≤8.7 | ≤10.7 | ≤12.9 | ≤14.8 |
| PMD (ps) | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.3 | ≤1.4 | ≤1.5 |
| PDL (dB) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Operating ambient temperature | –5°C ~ 55°C |
| Storage Temperature | –40°C ~ 85°C |
| Relative humidity (non-condensing) | 5% ~ 95% |
Overview
Product details
Chromatic dispersion builds up with distance; this passive unit offsets roughly ten kilometres worth of it across the entire C-band. Installers mount it in a single rack unit of a standard 19-inch frame, and ports can be ordered with LC, SC or FC terminations, polished UPC or APC. Sister models go up to 140km. Measured figures on record begin with the 20km version, hence we show them as family data, not as values for this unit.
Key Features
- 10km compensation, passive design
- C-band wide operation
- 1RU rack housing
- Six connector and polish options
- Series models up to 140km
Applications
- DWDM line systems at 10G
- Fine-tuning dispersion on mixed-length fiber spans
Specifications
| Parameter | Value |
|---|---|
| Description | 10 km Dispersion compensation module |
| Wavelength (Port/Link) | Full C-Band coverage |
| Range | 10KM |
| Connector Options (Port/Link) | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC |
| Housing | 1RU 19" rack mount |
| Compensation Distance (km) - series, 20/40/60/80/100/120/140 km models | 20 | 40 | 60 | 80 | 100 | 120 | 140 |
| Dispersion(ps/nm) - series, 20/40/60/80/100/120/140 km models | -340±3% | -680±3% | -1020±3% | -1360±3% | -1700±3% | -2040±3% | -2380±4% |
| Dispersion Slope (ps/nm*nm) - series, 20/40/60/80/100/120/140 km models | -0.66 | -1.33 | -2 | -2.67 | -3.3 | -4.1 | -4.8 |
| Insertion Loss (dB) - series, 20/40/60/80/100/120/140 km models | ≤2.9 | ≤4.8 | ≤6.8 | ≤8.7 | ≤10.7 | ≤12.9 | ≤14.8 |
| PMD (ps) - series, 20/40/60/80/100/120/140 km models | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.3 | ≤1.4 | ≤1.5 |
| PDL (dB) - series, 20/40/60/80/100/120/140 km models | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Operating ambient temperature | –5°C ~ 55°C |
| Storage Temperature | –40°C ~ 85°C |
| Relative humidity (non-condensing) | 5% ~ 95% |
Ordering References
Model and part numbers for ordering reference:
| Reference | Description |
|---|---|
| FT-DCM-10 / FT-DCM-20 / FT-DCM-30 / FT-DCM-40 / FT-DCM-50 / FT-DCM-60 / FT-DCM-70 / FT-DCM-80 / FT-DCM-90 / FT-DCM-100 / FT-DCM-110 / FT-DCM-120 / FT-DCM-140 | Models in the dispersion compensation series |
| FT-DCM-20 | FT-DCM-40 | FT-DCM-60 | FT-DCM-80 | FT-DCM-100 | FT-DCM-120 | FT-DCM-140 | Column order of the series rows in the Specifications table (20-140 km models) |
