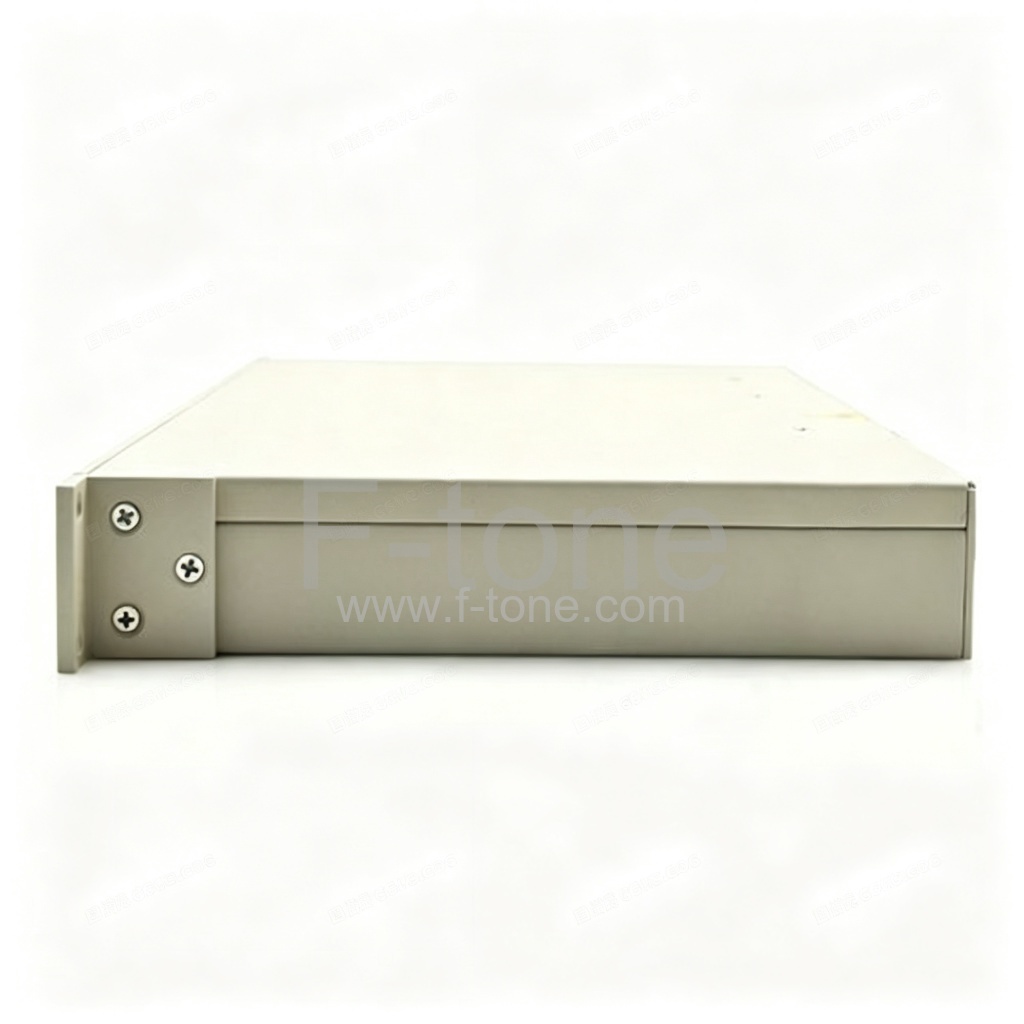

100km Passive Dispersion Compensation Module, 1RU 19-inch
F-tone Networks FT-100KM-3: passive dispersion compensation series, FT-DCM-10 to FT-DCM-140 for 10-140 km, full C-band, LC/SC/FC connectors, rack-mount housing.
- 40
- 60
- 80
- 100
- 120
- 140
- Model
- Description
- Wavelength(nm) Port/Link
- Range (KM)
- Connectors Port/Link
- Housing
Reference model FT-100KM-3 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Technical parameters
| 40 | 60 |
|---|---|
| 80 | 100 |
| 120 | 140 |
| Model | Description |
| Wavelength(nm) Port/Link | Range (KM) |
| Connectors Port/Link | Housing |
| FT-DCM-10 | 10 km Dispersion compensation module |
| Full C-Band coverage | 140KM |
| LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC | 2RU 19" rack mount |
| FT-DCM-20 | 20 km Dispersion compensation module |
| FT-DCM-30 | 30 km Dispersion compensation module |
| FT-DCM-40 | 40 km Dispersion compensation module |
| FT-DCM-50 | 50 km Dispersion compensation module |
| FT-DCM-60 | 60 km Dispersion compensation module |
| FT-DCM-70 | 70 km Dispersion compensation module |
| FT-DCM-80 | 80 km Dispersion compensation module |
| FT-DCM-90 | 90 km Dispersion compensation module |
| FT-DCM-100 | 100 km Dispersion compensation module |
| FT-DCM-110 | 110 km Dispersion compensation module |
| FT-DCM-120 | 120 km Dispersion compensation module |
| FT-DCM-140 | 140 km Dispersion compensation module |
| Part No. | FT-DCM-20 |
| Compensation Distance (km) | 20 |
| Dispersion(ps/nm) | -340±3% |
| -680±3% | -1020±3% |
| -1360±3% | -1700±3% |
| -2040±3% | -2380±4% |
| Dispersion Slope (ps/nm*nm) | -0.66 |
| -1.33 | -2 |
| -2.67 | -3.3 |
| -4.1 | -4.8 |
| -0.98 | -1.95 | -2.93 | -3.9 | -4.87 | -5.97 | -6.11 |
| -1.3 | -2.6 | -3.95 | -5.2 | -6.5 | -7.8 | -9.12 |
| Insertion Loss (dB) | ≤2.9 |
| ≤4.8 | ≤6.8 |
| ≤8.7 | ≤10.7 |
| ≤12.9 | ≤14.8 |
| PMD (ps) | ≤0.6 |
| ≤0.8 | ≤1.0 |
| ≤1.2 | ≤1.3 |
| ≤1.4 | ≤1.5 |
| PDL (dB) | ≤0.1 |
| ≤0.1 | ≤0.1 |
| Operating ambient temperature | –5°C ~ 55°C |
| Storage Temperature | –40°C ~ 85°C |
| Relative humidity (non-condensing) | 5% ~ 95% |
Product details
Overview
The FT-100KM-3 is a series of passive dispersion compensation modules for long-haul DWDM and 100G coherent line systems. Fourteen variants, FT-DCM-10 through FT-DCM-140, compensate accumulated chromatic dispersion over spans of 10 to 140 km, with full C-band coverage at the top of the range. Each variant is specified with its own dispersion value — for example, -1700±3% ps/nm for the 100 km model — plus insertion loss, PMD and PDL budgets. The series offers LC, SC and FC connector options in UPC or APC polish within a 19-inch rack-mount housing. Being fully passive, the modules need no power supply for the optical path.
Key Features
- Fourteen passive variants FT-DCM-10 to FT-DCM-140 for 10-140 km spans
- Full C-band coverage
- Per-variant dispersion, insertion loss, PMD and PDL budgets (tabulated below)
- Connector options: LC/SC/FC in UPC or APC polish
- 19-inch rack-mount housing; no power supply required for the optical path
- Operating -5 to 55 °C; storage -40 to 85 °C; humidity 5-95% non-condensing
Applications
- Long-haul DWDM transport networks
- 100G/400G coherent line systems
- Dispersion compensation in amplifier huts and regeneration sites
- Metro and regional fiber backbone upgrades
Specifications
| Parameter | Value |
|---|---|
| Part Number | FT-100KM-3 |
| Series Models | FT-DCM-10 through FT-DCM-140: 10 km to 140 km dispersion compensation modules |
| Wavelength Coverage | Full C-band coverage (to 140 km) |
| Connector Options | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC |
| Housing | 2RU 19″ rack mount (per spec table; product title states 1RU — see note) |
| Relative Dispersion Slope (nm⁻¹), set -0.98 | -1.95 | -2.93 | -3.9 | -4.87 | -5.97 | -6.11 |
| Relative Dispersion Slope (nm⁻¹), set -1.3 | -2.6 | -3.95 | -5.2 | -6.5 | -7.8 | -9.12 |
| Operating Ambient Temperature | -5 °C ~ 55 °C |
| Storage Temperature | -40 °C ~ 85 °C |
| Relative Humidity (non-condensing) | 5% ~ 95% |
Per-distance parameters (columns in source order):
| Parameter | 20 km | 40 km | 60 km | 80 km | 100 km | 120 km | 140 km |
|---|---|---|---|---|---|---|---|
| Dispersion (ps/nm) | -340±3% | -680±3% | -1020±3% | -1360±3% | -1700±3% | -2040±3% | -2380±4% |
| Dispersion Slope (ps/nm·nm) | -0.66 | -1.33 | -2 | -2.67 | -3.3 | -4.1 | -4.8 |
| Insertion Loss (dB) | ≤2.9 | ≤4.8 | ≤6.8 | ≤8.7 | ≤10.7 | ≤12.9 | ≤14.8 |
| PMD (ps) | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.3 | ≤1.4 | ≤1.5 |
| PDL (dB) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
Contact
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: una@f-tone.com / betty@f-tone.com · WhatsApp: +86 17761163895
