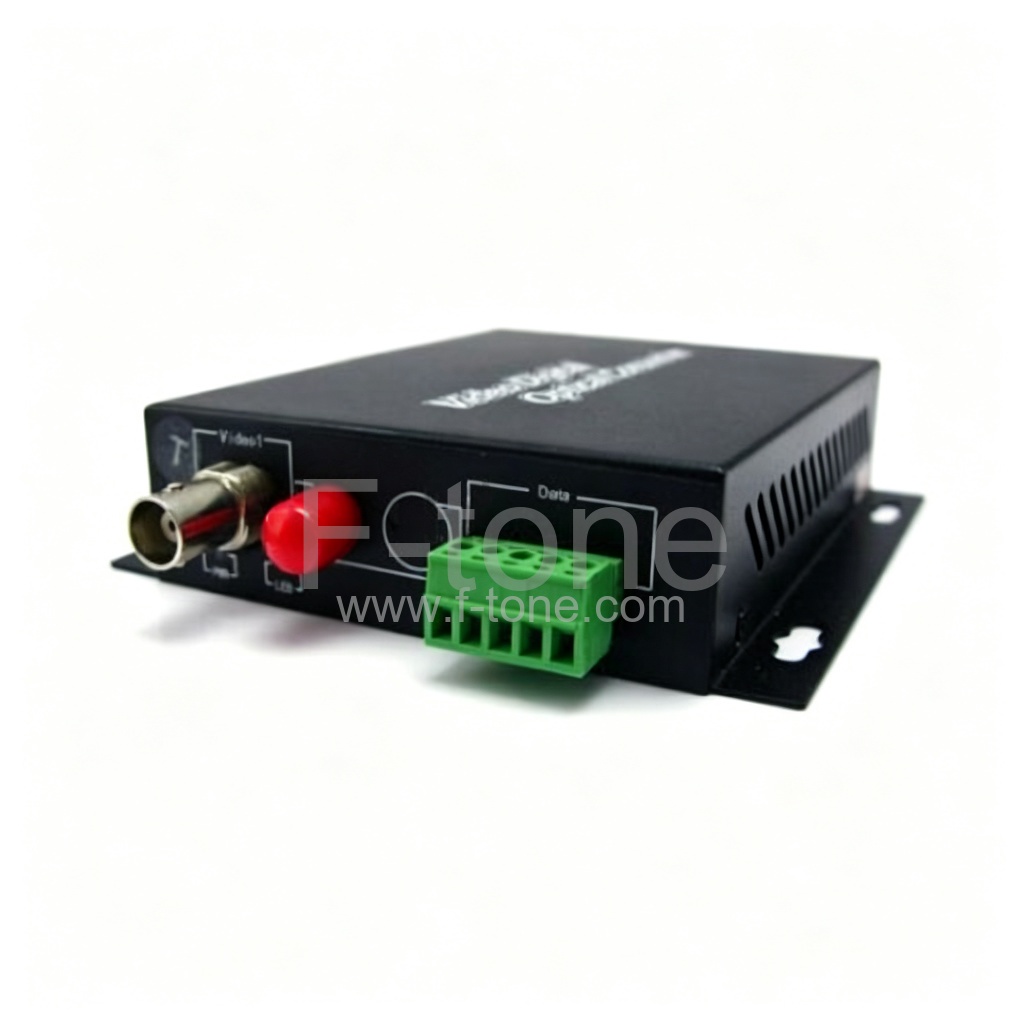

1-Channel Video Fiber Multiplexer with Reverse Data and Forward Audio, Single-Mode 20km

The FT-20KM-6 from F-tone Networks is a single-channel fiber video multiplexer set that carries one video channel, one forward audio channel and one reverse data channel over a single-mode fiber up to 20 km, plus a 10/100M Ethernet port. It accepts PAL, NTSC and SECAM video via 75-ohm BNC input, handles RS485, RS232, RS422 and contact closure data up to 115.2 Kbps, and codes audio at 24-bit resolution with SNR above 80 dB. The optical link is rated for a bit error rate of 1E-9. Operating from -45 to +75 °C with MTBF above 100,000 hours, the pair serves intelligent traffic systems, building surveillance and access control points combining video, intercom audio, control data and IP traffic on one fiber.

Key Features

• 1-channel video, 1-channel forward audio and 1-channel reverse data over single-mode fiber
• Up to 20 km reach via standard FC optical connector
• PAL/NTSC/SECAM video through 75-ohm BNC, video SNR above 67 dB
• Serial data up to 115.2 Kbps (RS485/232/422, contact closure), BER 1E-9
• 10/100M Ethernet port with auto MDI/MDI-X for IP device connectivity
• -45 to +75 °C operating range, MTBF over 100,000 hours

Applications

• Intelligent traffic and intersection monitoring
• Building surveillance and access control
• Perimeter security with intercom and IP devices
