MODEL · FT-BOTH-CW-AND-PULSE-AVAILABLE

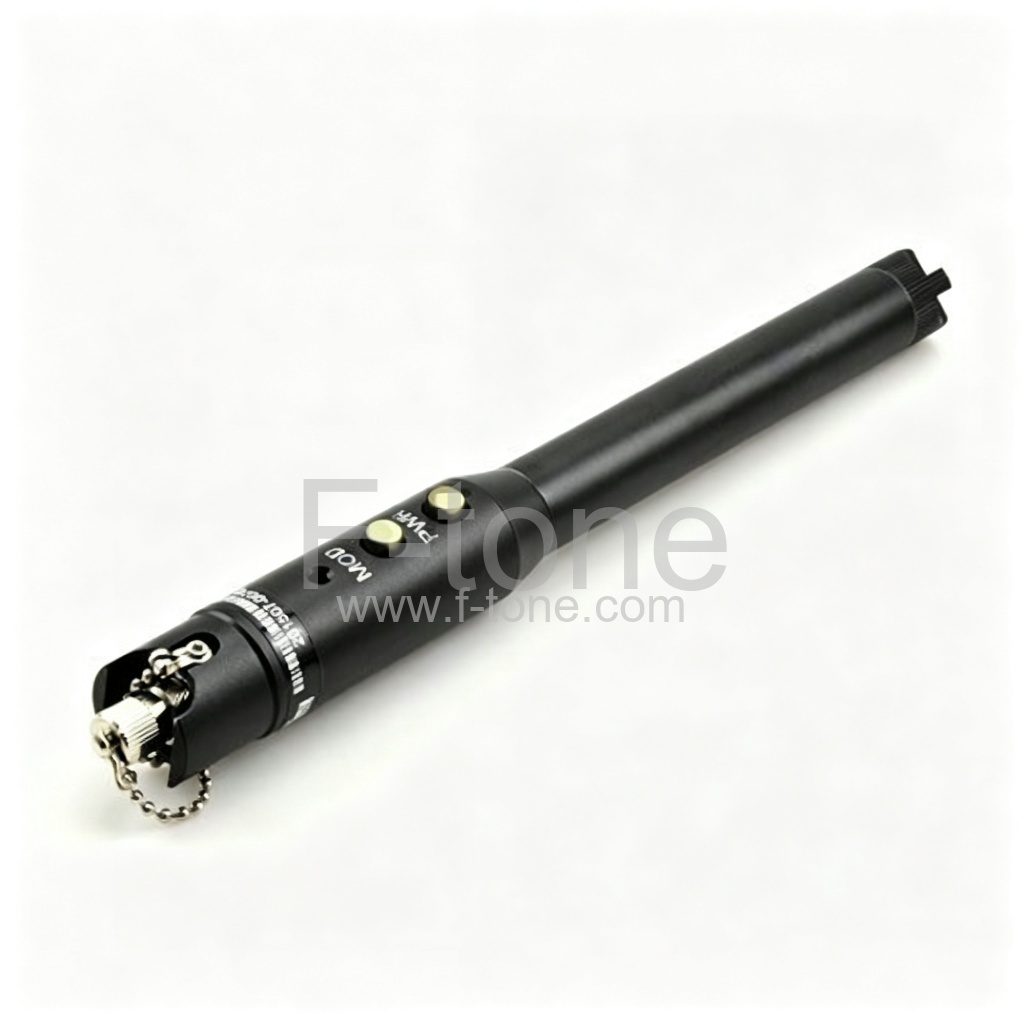

10mW Pen-Type Visual Fault Locator (CN listing)
F-tone Networks 10mW pen-type visual fault locator Chinese catalog twin (FT3103 class), 650nm, CW/pulse, ~10-12km. Contact Betty or Una for VFL pricing.
- Type
- FT3103 Pen-type Visual Fault Finder
- Central Wavelength
- 650nm ±10nm
- Emitter Type
- FP-LD
- Output Power
- Optional choice for 1mw, 5mw, 10mw, 20mw, 30mw on actual needs
- Optical Connector
- 2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests
- Operating Model
- Both CW and Pulse available
Reference model FT-BOTH-CW-AND-PULSE-AVAILABLE in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Type | FT3103 Pen-type Visual Fault Finder |
|---|---|
| Central Wavelength | 650nm ±10nm |
| Emitter Type | FP-LD |
| Output Power | Optional choice for 1mw, 5mw, 10mw, 20mw, 30mw on actual needs |
| Optical Connector | 2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests |
| Operating Model | Both CW and Pulse available |
| Pulse Frequency | 2~3Hz |
| Power Supply | 2 AAalkaline batteries |
| Battery Operating Time | 1mw≥65hour; 3mw≥50hour; 10mw≥15hour |
| Operating Temperature | -10~+45（℃） |
| Storage Temperature | -40~+70（℃） |
| Dimension (mm) | 15*180 |
| Weight | 120g(Without battery) |
Overview
Product details
Chinese-listing twin of the pen-type 650 nm VFL. Same FP-LD, CW/pulse 2-3 Hz, 2.5 mm universal nose and AA power budget — use it when the CN catalog SKU is what procurement calls out.
Key Features
- 650 nm +/-10 nm FP-LD emitter
- 10 mW class output options
- CW and 2-3 Hz pulse modes
- 2.5 mm universal connector
- Two AA cells, pen-type body
Applications
- Fiber break and bend finding
- CN-catalog VFL replacements
Specifications
| Parameter | Value |
|---|---|
| Type | FT3103 Pen-type Visual Fault Finder |
| Central Wavelength | 650nm ±10nm |
| Emitter Type | FP-LD |
| Optical Connector | 2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests |
| Operating Model | Both CW and Pulse available |
| Pulse Frequency | 2~3Hz |
| Power Supply | 2 AAalkaline batteries |
| Battery Operating Time | 1mw≥65hour; 3mw≥50hour; 10mw≥15hour |
| Operating Temperature | -10~+45（℃） |
| Storage Temperature | -40~+70（℃） |
| Dimension (mm) | 15*180 |
| Weight | 120g(Without battery) |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
