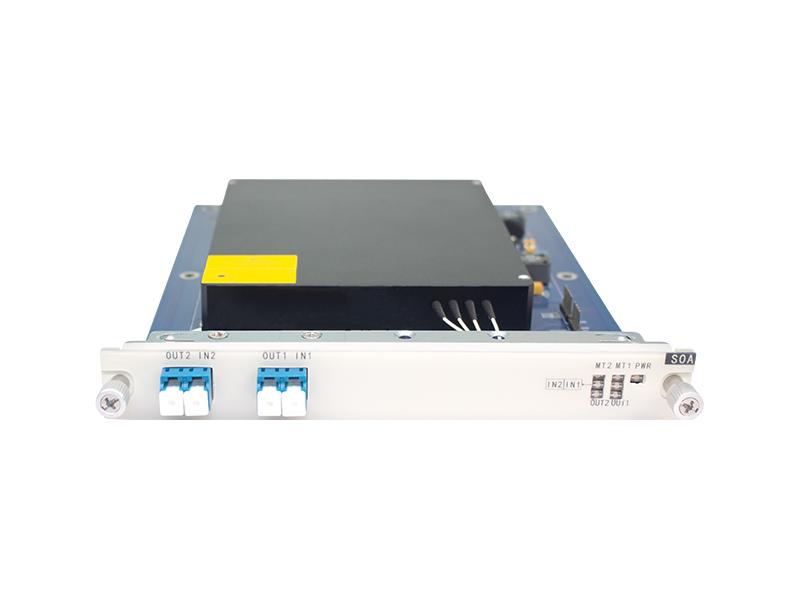

1 / 2100G 1310nm SOA Optical Amplifier Card for FW6600 Chassis
F-tone Networks FT-100G-1310 is a 100G 1310nm SOA optical amplifier card with 14-17dB gain, 8dB noise figure, and LC/UPC interfaces for the FW6600 chassis.
- 系统参数
- 技术指标
- 波长范围
- 1290nm ~ 1330nm
- 每路输入功率范围
- -20dBm ~ +6dBm
- 每路输出功率范围
- -6dBm ~ +10dBm
- 增益
- 14~17dB
- 噪声指数
- 8dB
Reference model FT-100G-1310 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Technical parameters
| 系统参数 | 技术指标 |
|---|---|
| 波长范围 | 1290nm ~ 1330nm |
| 每路输入功率范围 | -20dBm ~ +6dBm |
| 每路输出功率范围 | -6dBm ~ +10dBm |
| 增益 | 14~17dB |
| 噪声指数 | 8dB |
| 增益平坦度 | 3.0dB |
| 均匀性 | 1.0dB |
| 稳定性 | 0.5dB |
| 偏置电流 | 300mA |
| 偏振相关增益 | 2.0dB |
| 板卡尺寸 | 156（W）× 20（H）× 225（D）（mm） |
| 环境要求 | 工作温度 | -10℃ ~ 50℃ |
| Storage Temperature | -40℃ ~ 80℃ |
| 相对湿度 | 5% ~ 95% 无凝结 |
| 安全与EMC | 符合FCC、UL、CE、TUV、CSA标准 |
| Power Consumption | <24W |
| Part Number | 规格描述 |
| FTSOA14A | 1路 100G 1310nm 光放大板卡 SOA G14/10 增益14dB,最大输出10dB, LC/UPC 占1槽位 用于FW6600系列机箱 |
| FTSOA14B | 2路 100G 1310nm 光放大板卡 SOA G14/10 增益14dB,最大输出10dB, LC/UPC 占1槽位 用于FW6600系列机箱 |
| 指标名称 | 指标 | 备注 |
| 工作波长范围 | 1280nm ~ 1330nm |
| 输入光功率范围（总功率） | -17dBm ~ -4dBm |
| 输出光功率范围（总功率） | 2dBm ~ 10dBm |
| 噪声系数 | ≤7.5 dB |
| 工作温度范围 | -10℃~60℃ |
| 工作湿度范围 | 5%~95%无凝结 |
| 储存温度 | -40℃~85℃ |
| 设备尺寸 | 1U: 44 mm (高)×442 mm (宽)×280 mm (深) |
| 网管功能 | 支持SNMP、Web等多种图形化界面网管 | 可选配置 |
| 系统容量 | 8*100G光信号放大 | 1U满配置 |
| 光接口 | LC/UPC型 |
| 供电方式 | AC: 90 ~ 260V 或 DC: -36 ~ -72 V (支持1+1电源输入备份) |
| 典型功耗 | 整机满配<60W |
| 散热 | 风扇散热 |
| MTBF | ＞10万小时 |
| FT-SOA-A1-10/GXX | 100G 1310nm SOA LC/UPC 1进1出 双电源 1U 机箱 |
| FT-SOA-A2-10/GXX | 100G 1310nm SOA LC/UPC 2进2出 双电源 1U 机箱 |
| FT-SOA-A4-10/GXX | 100G 1310nm SOA LC/UPC 4进4出 双电源 1U 机箱 |
Product details
Overview
The FT-100G-1310 is a 100G SOA optical amplifier card designed for 1310nm single-channel and dual-channel amplification. It covers 1290 to 1330nm with 14 to 17dB gain, a noise figure of 8dB, and gain flatness of 3.0dB, supporting per-channel input from -20 to +6dBm and output up to +10dBm. The card uses LC/UPC interfaces and mounts in the FW6600 series chassis, with 1-channel and 2-channel variants available. Operating temperature is -10 to 50℃, storage is -40 to 80℃, and power consumption stays below 24W, fitting telecom rooms and central offices.
Key Features
- 100G 1310nm SOA amplification for single-channel and dual-channel cards
- Wavelength range 1290 to 1330nm with 14 to 17dB gain
- Noise figure 8dB; gain flatness 3.0dB; polarization dependent gain 2.0dB
- Per-channel input -20 to +6dBm; per-channel output -6 to +10dBm
- LC/UPC interfaces; single-slot card for the FW6600 series chassis
- 1U chassis configuration supports up to 8 x 100G signals at full load
Applications
- 1310nm 100G signal amplification in FW6600 chassis systems
- Metro and regional optical transport networks
- Telecom central-office and equipment-room applications
- Single-wavelength boost for extended-reach links
Specifications
| Parameter | Value |
|---|---|
| Part Number | FT-100G-1310 |
| Brand | F-tone Networks |
| Product Type | SOA optical amplifier card |
| Wavelength Range | 1290nm ~ 1330nm |
| Input Power (per channel) | -20dBm ~ +6dBm |
| Output Power (per channel) | -6dBm ~ +10dBm |
| Gain | 14 ~ 17dB |
| Noise Figure | 8dB |
| Gain Flatness | 3.0dB |
| Uniformity | 1.0dB |
| Stability | 0.5dB |
| Bias Current | 300mA |
| Polarization Dependent Gain | 2.0dB |
| Optical Interface | LC/UPC |
| Card Dimensions | 156 (W) x 20 (H) x 225 (D) mm |
| Operating Temperature | -10℃ ~ 50℃ |
| Storage Temperature | -40℃ ~ 80℃ |
| Relative Humidity | 5% ~ 95% non-condensing |
| Power Consumption | <24W |
| Chassis Compatibility | FW6600 series |
| Channel Variants | 1-channel / 2-channel cards |
| EMC and Safety | FCC, UL, CE, TUV, CSA standards (per specifications) |
Contact
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: una@f-tone.com / betty@f-tone.com · WhatsApp: +86 17761163895
