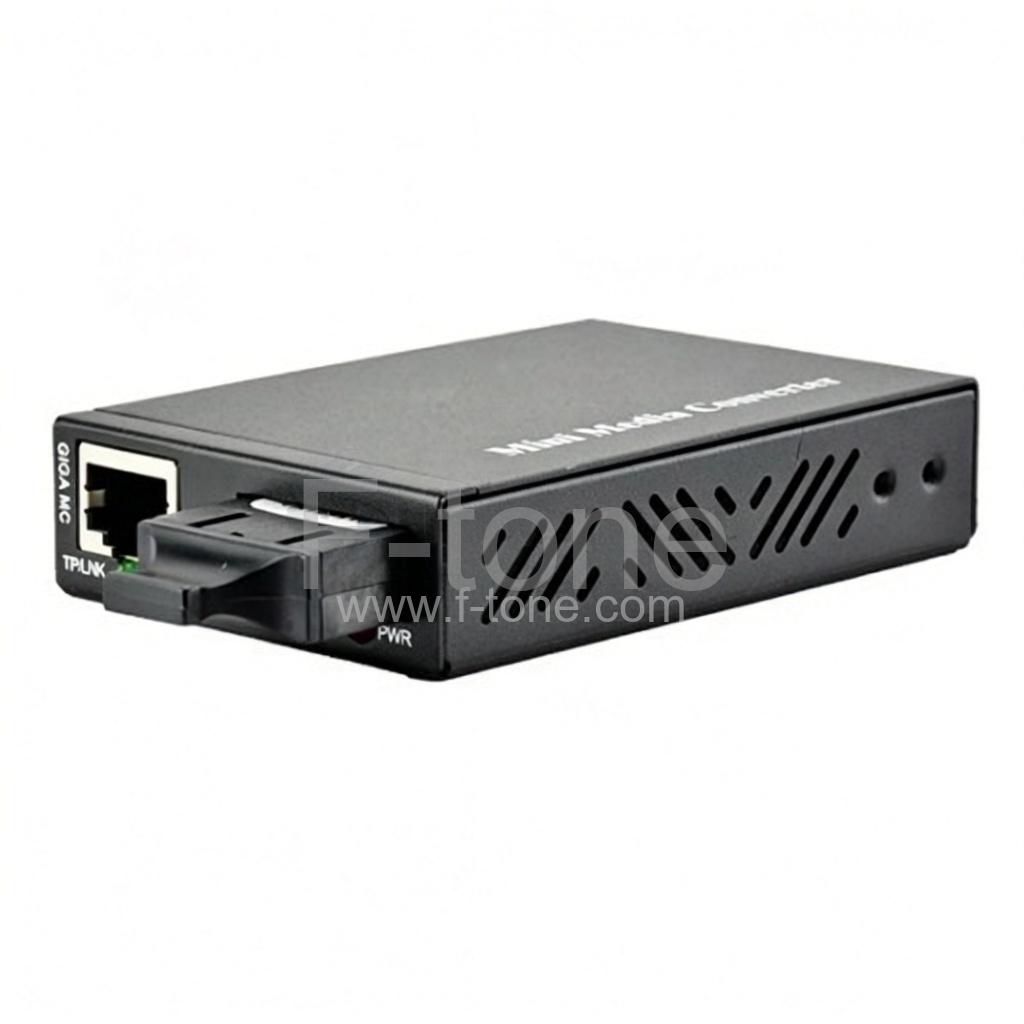

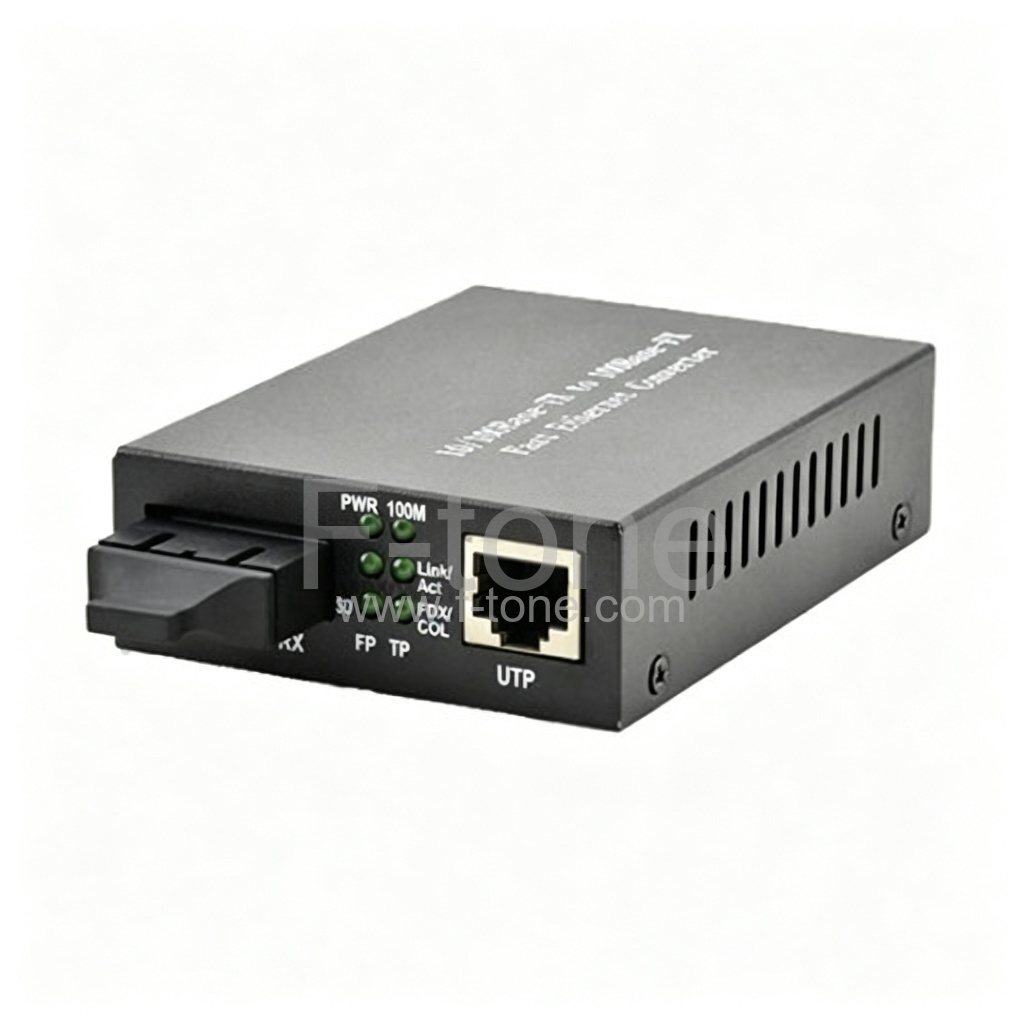

10/100M 1310nm 2km Multimode Ethernet Media Converter

Overview

The FT-100M-1310-2 is a 10/100M dual-fiber mini Ethernet media converter that links a copper UTP segment to multimode fiber at 1310nm over distances up to 2km. It provides one RJ45 port at 10/100Mbps alongside a 100Mbps fiber port available with duplex SC, ST or FC connectors. Powered by an external power supply in a compact 26x70x95 mm housing, the converter carries full LED status indication for TX link, FX link, activity, power and duplex.

Key Features

• One RJ45 UTP port at 10/100Mbps
• 100Mbps fiber port at 1310nm over multimode fiber, up to 2km
• Duplex fiber connector options: SC, ST or FC
• External power supply; compact 26x70x95 mm mini housing
• LED indicators: TX LINK, FX LINK, TX ACT, FX ACT, PWR, FDX
• Operating temperature -20 to 75 C; humidity 5% to 90%

Applications

• Extending 10/100M Ethernet over multimode fiber up to 2km
• Campus and building-to-building copper-to-fiber conversion
• Installations operating between -20 and 75 C

Specifications
