1-5 Channel E1 Automatic Protection Switcher

Overview

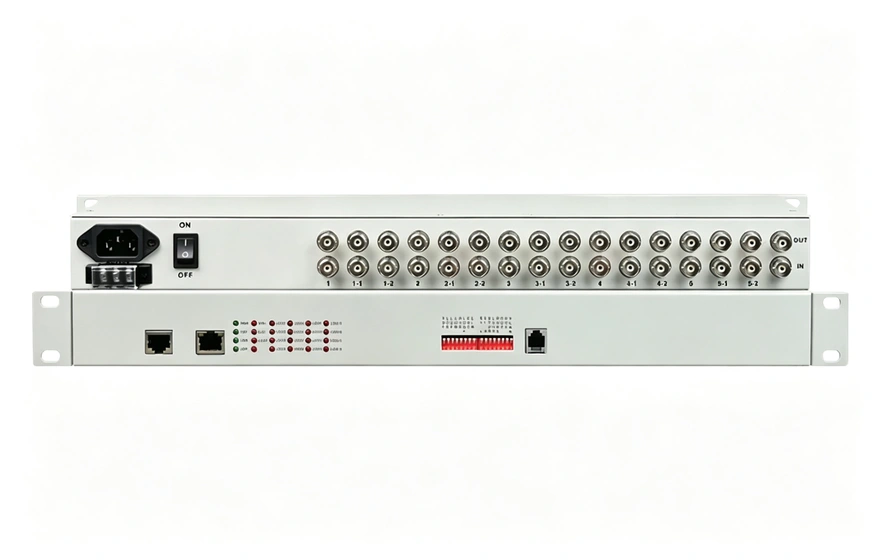

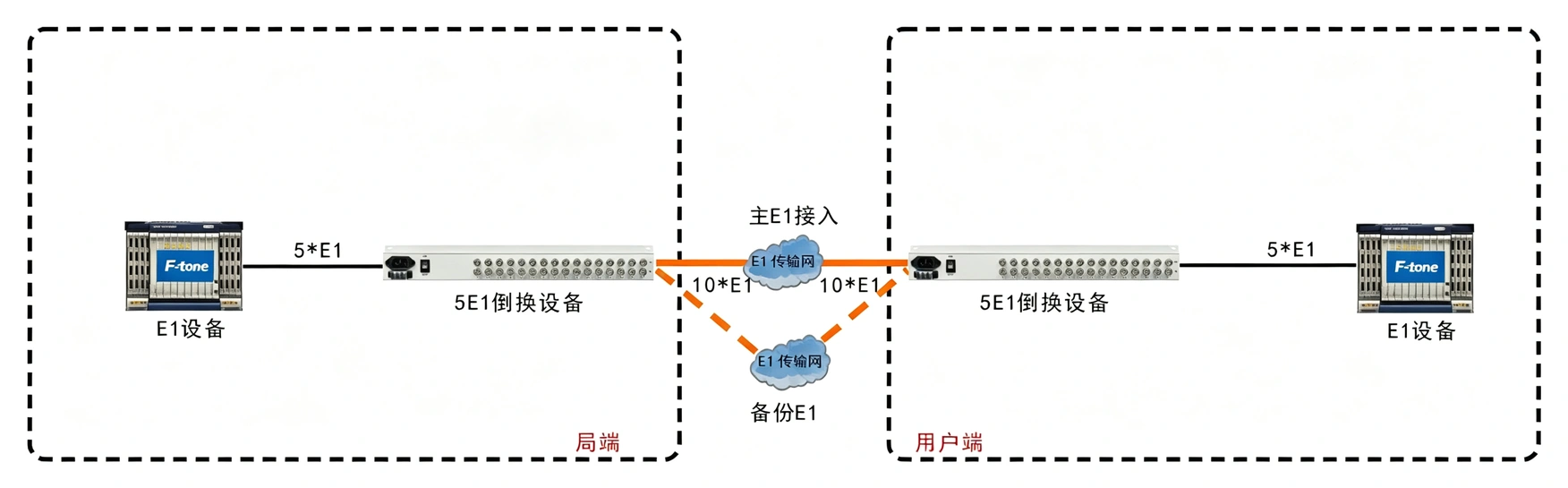

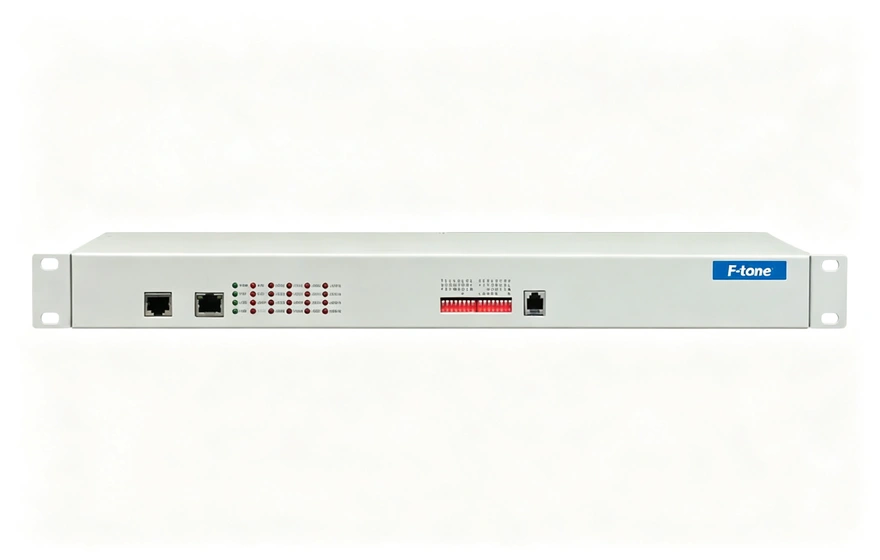

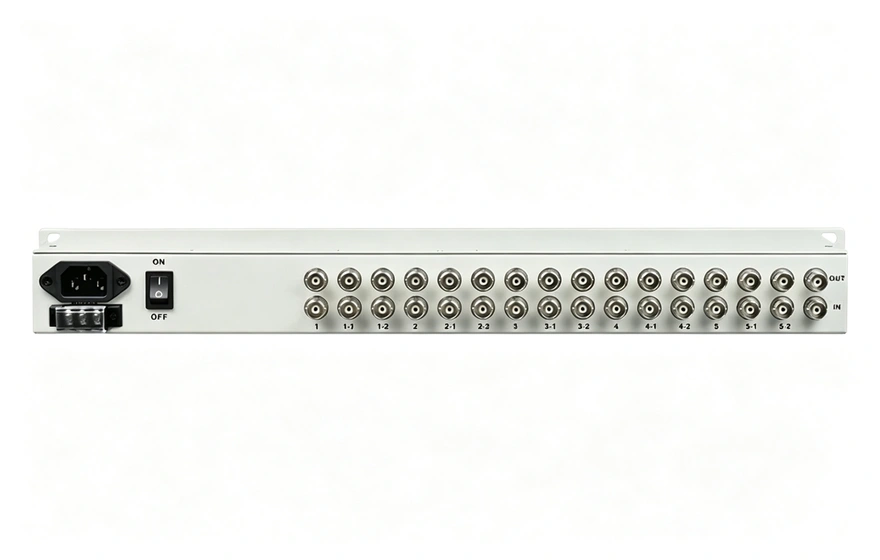

The FT-1226 is an E1 switcher built on a dedicated large-scale integrated circuit, providing 1 to 5 independent channels of E1 switchover protection. In the default working mode, when the primary E1 line fails, the device automatically switches to the standby E1 line with no service interruption; when the primary line is repaired, it switches back automatically.

The whole process runs by itself with no need for manual monitoring or operation, protecting services that cannot tolerate line outages.

Key Features

• 1–5 independent E1 protection switching channels
• Automatic, hitless switch to the standby E1 line on primary failure
• Automatic switchback when the primary E1 line is restored
• Fully automatic operation; no manual monitoring required
• Built on a dedicated large-scale integrated circuit

Applications

• Teleconferencing systems
• Video conferencing links
• Video surveillance system protection
• Carrier-grade E1 line protection

Specifications
