FT-225 980nm SLED Broadband Light Source 1.5mW

Overview

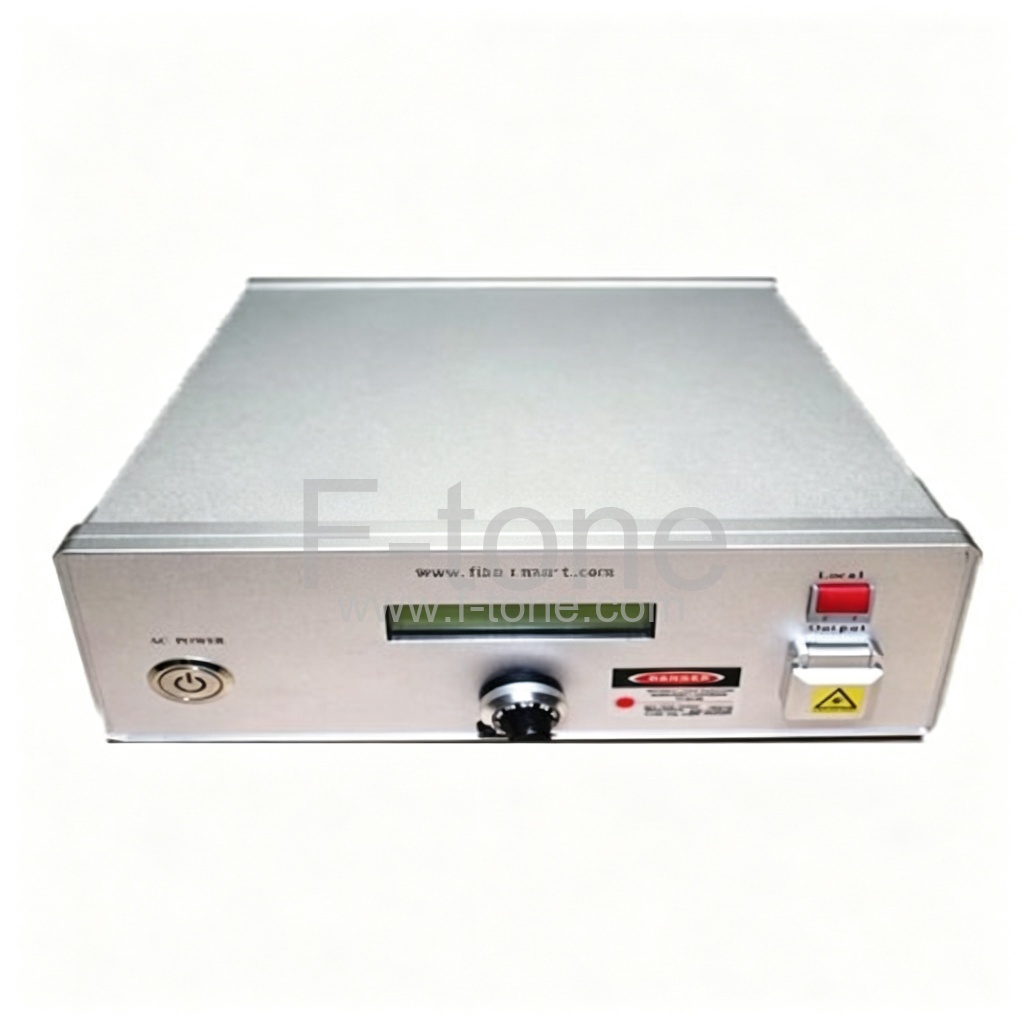

The FT-225 is a 980 nm superluminescent diode (SLED) broadband light source rated at 1.5 mW output power for this version. The source offers a center wavelength of 980 +/- 20 nm with a 3 dB spectrum width of at least 30 nm, giving a smooth broadband emission for high-sensitivity measurements. Output stability is rated at +/-0.01 dB per 15 minutes short term and +/-0.03 dB per 8 hours long term. The unit supports CW, internal modulation and external modulation operating modes. Output passes through HI 1060 fiber pigtail with FC/UPC or FC/APC connector options. The module version measures 90x70x18 mm, while the desktop version measures 322x220x88 mm.

Key Features

• 980 +/- 20 nm center wavelength; 3 dB spectrum width of at least 30 nm
• 1.5 mW output power with power-adjustable display (family options: 1.5, 3 and 5 mW)
• CW, internal modulation and external modulation operating modes
• HI 1060 fiber pigtail; FC/UPC or FC/APC output connector
• Short-term stability +/-0.01 dB per 15 min; long-term +/-0.03 dB per 8 h
• Module (90x70x18 mm) or desktop (322x220x88 mm) housing

Applications

• Fiber optic sensing systems
• Fiber Bragg grating based measurement
• Optical spectrum component testing
• Research and development laboratories

Specifications
