1 / 6MODEL · FT-10M-OS2-17

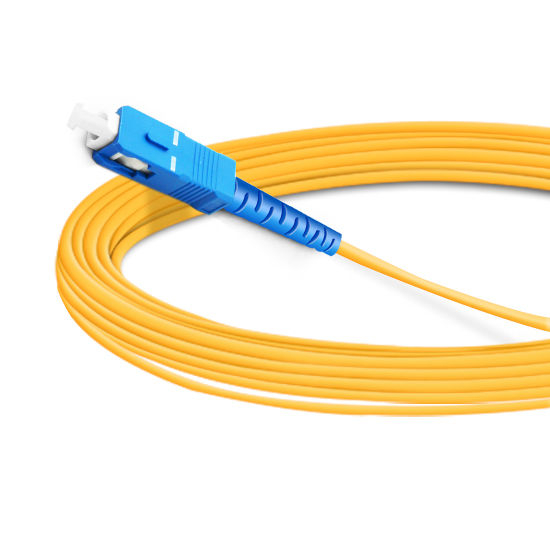

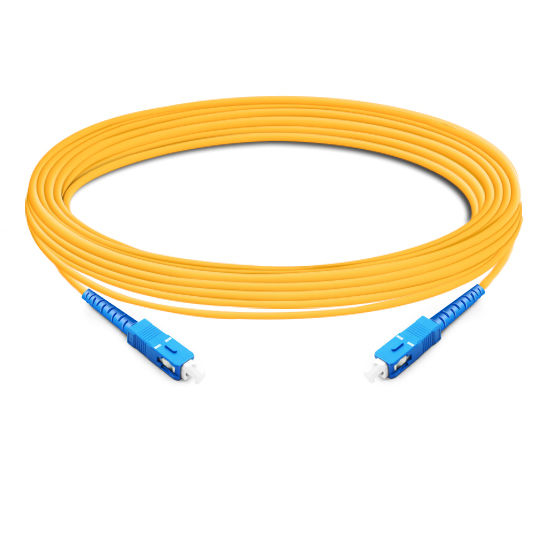

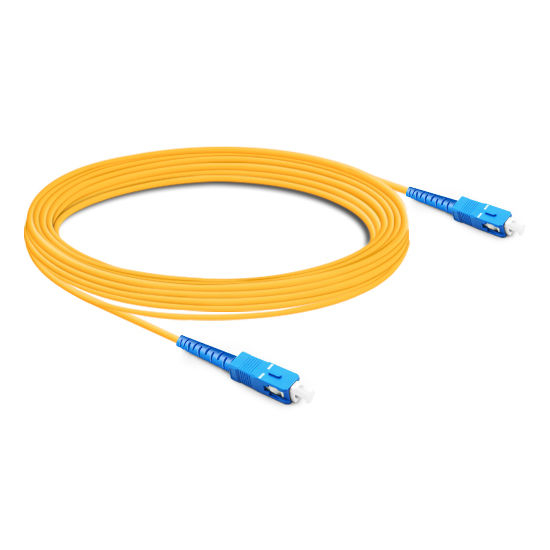

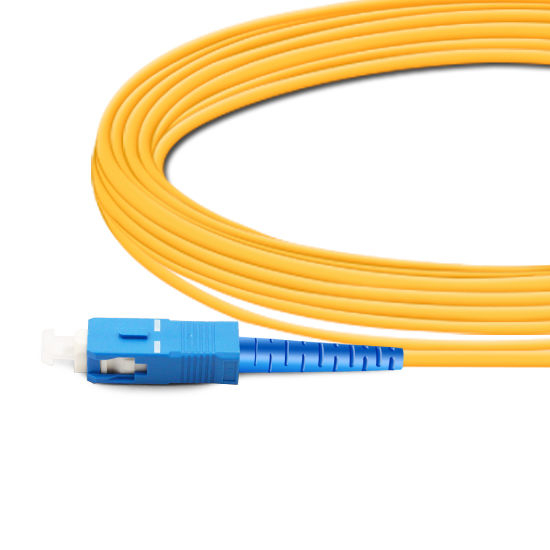

10m Simplex OS2 SC UPC to SC UPC Patch, LSZH
F-tone Networks 10m (33ft) simplex OS2 SC UPC to SC UPC patch, LSZH yellow, ClearCurve G.657.A1, IL<=0.3dB, RL>=50dB. Contact Betty or Una for pricing.
Compatible: AdvaCompatible: Nec
- Connector A
- SC UPC
- Connector B
- SC UPC
- Fiber Type
- OS2 9/125μm Single Mode
- Wavelength
- 1310/1550nm (CWDM DWDM)
- Fiber Count
- Simplex
- Distance
- 10m (33ft)
Reference model FT-10M-OS2-17 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | SC UPC |
|---|---|
| Connector B | SC UPC |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm (CWDM DWDM) |
| Fiber Count | Simplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | 低烟无卤 |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Attenuation at 1310nm | ≤0.36 dB/km |
| Attenuation at 1550nm (DWDM) | ≤0.25 dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Yellow |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Min. Bend Radius | 10mm |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
Overview
Product details
Everyday SC UPC simplexing on OS2 prefers low-smoke jacketing (specs LSZH; title said PVC OFNR). Expect insertion within 0.3 dB, return from 50 dB and the listed 1310/1550 nm attenuation pair on a 10m (33ft), 2.0 mm ClearCurve body aimed at long-haul patch fields.
Key Features

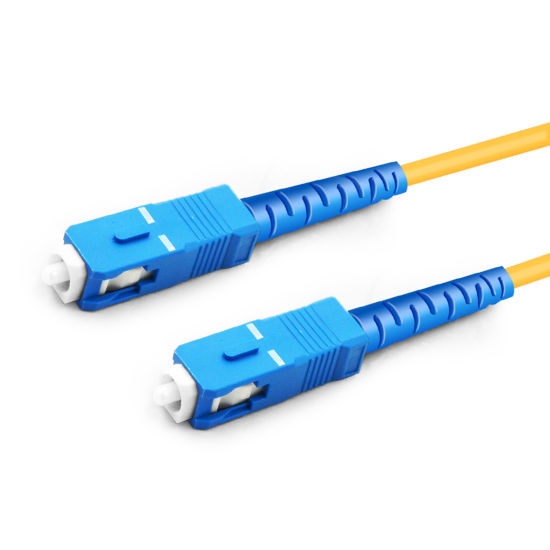

- Matching SC UPC simplex ends
- OS2 9/125 single-mode, G.657.A1
- LSZH jacket, Yellow
- ClearCurve glass at 2.0 mm OD
- IL <=0.3 dB / RL >=50 dB over 10m (33ft)
Applications
- LSZH OS2 SC-to-SC patching
- CWDM/DWDM and long-haul patch fields
Specifications
| Parameter | Value |
|---|---|
| Connector A | SC UPC |
| Connector B | SC UPC |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm (CWDM DWDM) |
| Fiber Count | Simplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | LSZH |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Attenuation at 1310nm | ≤0.36 dB/km |
| Attenuation at 1550nm (DWDM) | ≤0.25 dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Yellow |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Min. Bend Radius | 10mm |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
Compatibility
Compatible platforms
AdvaNec
