1 / 6MODEL · FT-10M-OS2-12

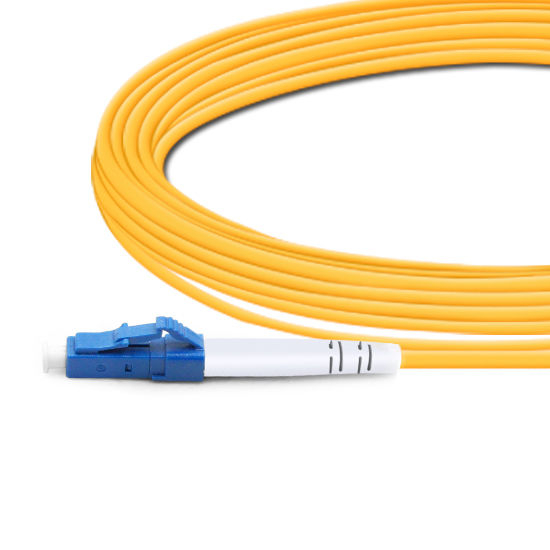

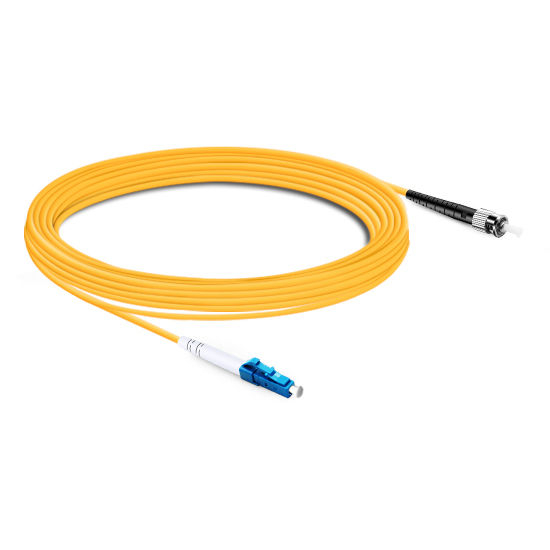

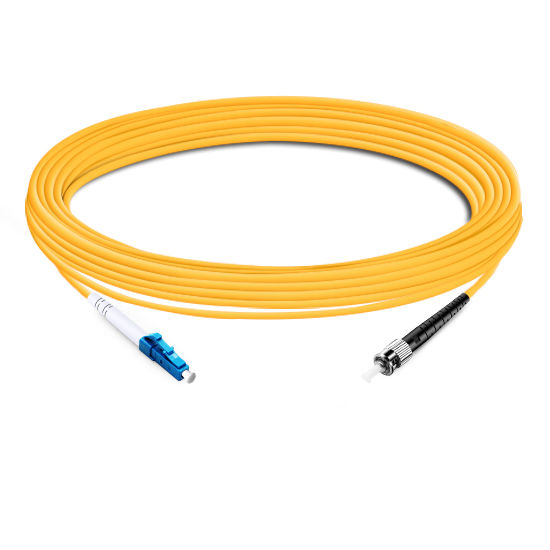

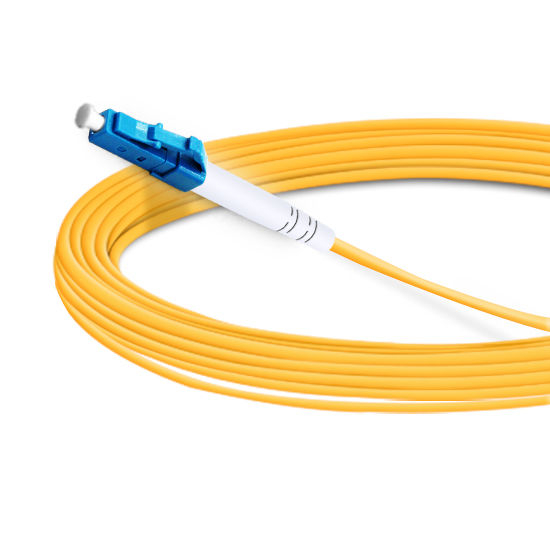

10m Simplex OS2 LC UPC to ST UPC Patch, PVC OFNR
F-tone Networks 10m (33ft) simplex OS2 LC UPC to ST UPC patch, PVC (OFNR) yellow, ClearCurve G.657.A1, IL<=0.3dB, RL>=50dB. Contact Betty or Una for pricing.
Compatible: AdvaCompatible: Nec
- Connector A
- LC UPC
- Connector B
- ST UPC
- Fiber Type
- OS2 9/125μm Single Mode
- Wavelength
- 1310/1550nm (CWDM DWDM)
- Fiber Count
- Simplex
- Distance
- 10m (33ft)
Reference model FT-10M-OS2-12 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | LC UPC |
|---|---|
| Connector B | ST UPC |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm (CWDM DWDM) |
| Fiber Count | Simplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | PVC (OFNR) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Attenuation at 1310nm | ≤0.36 dB/km |
| Attenuation at 1550nm (DWDM) | ≤0.25 dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Yellow |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Min. Bend Radius | 10mm |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
Overview
Product details

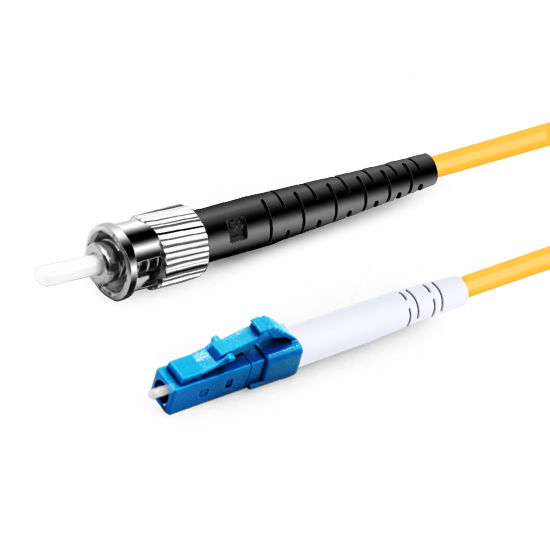

Bayonet ST UPC hardware survives in many closets; this jumper pairs it with an LC UPC optic face. Across 10m (33ft) of 2.0 mm ClearCurve the UPC OS2 line quotes insertion 0.3 dB, return 50 dB and bend 10 mm.
Key Features
- LC UPC paired with ST UPC
- OS2 9/125 single-mode, G.657.A1
- PVC (OFNR) yellow jacket
- ClearCurve glass at 2.0 mm OD
- IL <=0.3 dB / RL >=50 dB over 10m (33ft)
Applications
- OS2 LC-to-ST single-mode patching
- CWDM/DWDM and campus OS2 closets
Specifications
| Parameter | Value |
|---|---|
| Connector A | LC UPC |
| Connector B | ST UPC |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm (CWDM DWDM) |
| Fiber Count | Simplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | PVC (OFNR) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Attenuation at 1310nm | ≤0.36 dB/km |
| Attenuation at 1550nm (DWDM) | ≤0.25 dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Yellow |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Min. Bend Radius | 10mm |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
