1 / 6MODEL · FT-10M-OS2-10

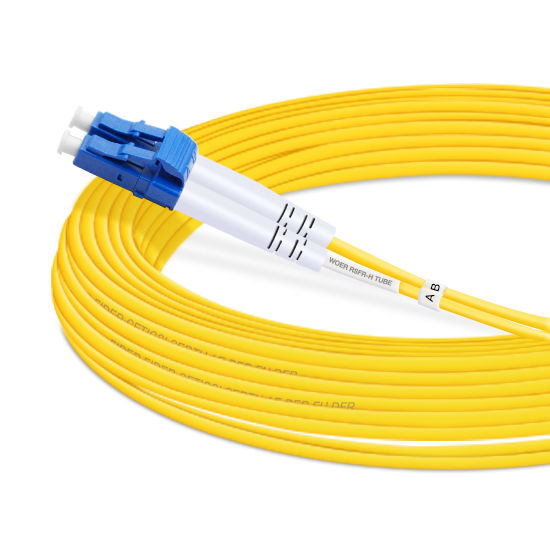

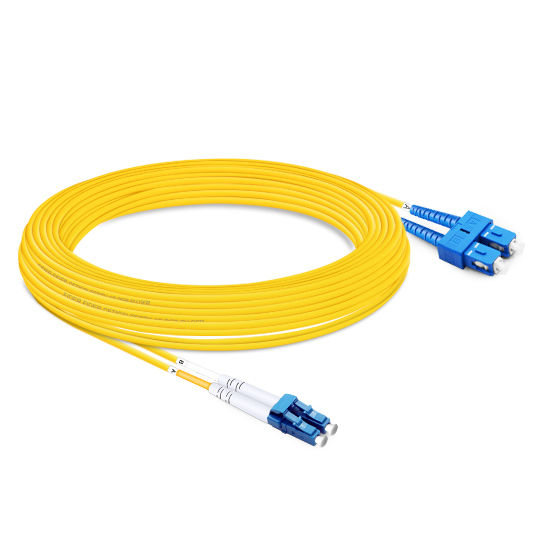

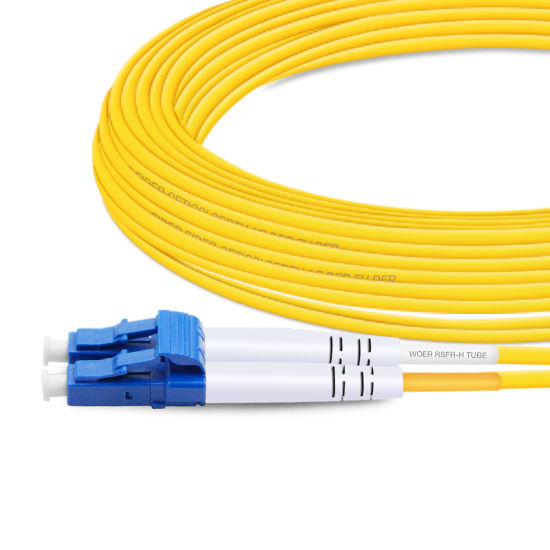

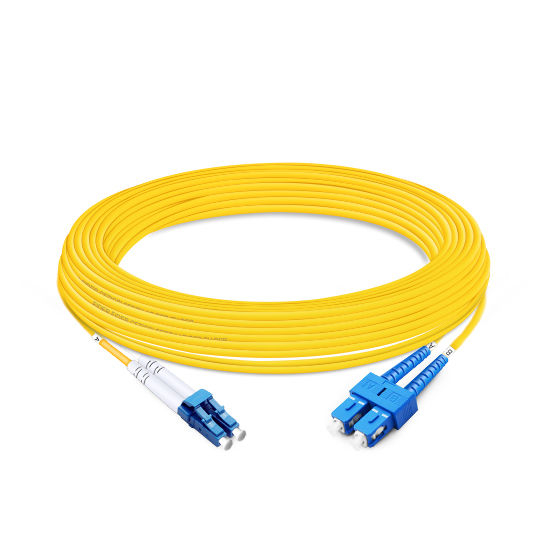

10m Duplex OS2 LC UPC to SC UPC Patch Cable, OFNP
F-tone Networks 10m (33ft) duplex OS2 LC UPC to SC UPC patch, OFNP yellow, ClearCurve G.657.A1, IL<=0.3dB, RL>=50dB. Contact Betty or Una for pricing.
Compatible: AdvaCompatible: Nec
- Connector A
- LC UPC
- Connector B
- SC UPC
- Fiber Type
- OS2 9/125μm Single Mode
- Wavelength
- 1310/1550nm (CWDM DWDM)
- Fiber Count
- Duplex
- Distance
- 10m (33ft)
Reference model FT-10M-OS2-10 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | LC UPC |
|---|---|
| Connector B | SC UPC |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm (CWDM DWDM) |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | OFNP |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Attenuation at 1310nm | ≤0.36dB/km |
| Attenuation at 1550nm (DWDM) | ≤0.25dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Yellow |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Min. Bend Radius | 10mm |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
Overview
Product details
Plenum-rated OFNP yellow jacket carries LC UPC to SC UPC on OS2 ClearCurve. Ten metres (33ft), 2.0 mm, G.657.A1 grade. Insertion within 0.3 dB, return from 50 dB, bend floor 10 mm.
Key Features

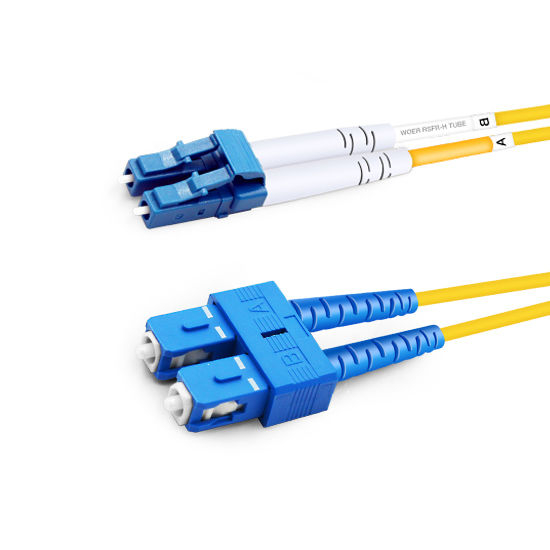

- LC UPC paired with SC UPC
- OS2 9/125 single-mode, G.657.A1
- OFNP jacket, Yellow
- Corning ClearCurve glass, 2.0 mm
- IL <=0.3 dB, RL >=50 dB, 10m (33ft)
Applications
- Plenum single-mode LC-to-SC patching
- CWDM/DWDM interconnects in air-handling spaces
Specifications
| Parameter | Value |
|---|---|
| Connector A | LC UPC |
| Connector B | SC UPC |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm (CWDM DWDM) |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | OFNP |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Attenuation at 1310nm | ≤0.36dB/km |
| Attenuation at 1550nm (DWDM) | ≤0.25dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Yellow |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Min. Bend Radius | 10mm |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
| Compatible Brands | Adva / Nec |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
Compatibility
Compatible platforms
AdvaNec
