1 / 4MODEL · FT-10M-OS2-15

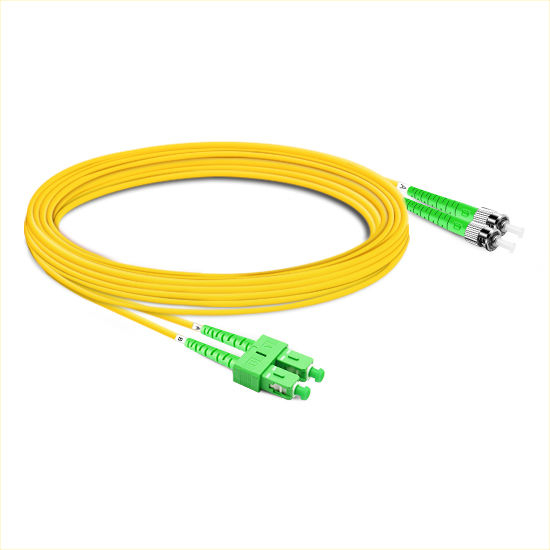

10m Duplex OS2 SC APC to ST APC Patch Cable, PVC OFNR
F-tone Networks 10m (33ft) duplex OS2 SC APC to ST APC patch, PVC (OFNR) yellow, ClearCurve G.657.A1, IL<=0.3dB, RL>=50dB. Contact Betty or Una for pricing.
Compatible: AdvaCompatible: Nec
- Connector A
- SC APC
- Connector B
- ST APC
- Fiber Type
- OS2 9/125μm Single Mode
- Wavelength
- 1310/1550nm (CWDM DWDM)
- Fiber Count
- Duplex
- Distance
- 10m (33ft)
Reference model FT-10M-OS2-15 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | SC APC |
|---|---|
| Connector B | ST APC |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm (CWDM DWDM) |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | PVC (OFNR) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Attenuation at 1310nm | ≤0.36dB/km |
| Attenuation at 1550nm (DWDM) | ≤0.25dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Yellow |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Min. Bend Radius | 10mm |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
Overview
Product details
SC APC distribution frames that still expose ST APC ports need a hybrid angled-polish OS2 cord. Ten metres of 2.0 mm ClearCurve under riser PVC inherit the APC OS2 loss and bend envelope for CWDM/DWDM rooms.
Key Features
- SC APC paired with ST APC
- OS2 9/125 single-mode, G.657.A1
- PVC (OFNR) jacket, Yellow
- Corning ClearCurve glass, 2.0 mm
- IL <=0.3 dB, RL >=50 dB, 10m (33ft)
Applications
- Angled-polish OS2 patching in CWDM/DWDM plants
- Single-mode interconnects needing high return loss
Specifications
| Parameter | Value |
|---|---|
| Connector A | SC APC |
| Connector B | ST APC |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm (CWDM DWDM) |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | PVC (OFNR) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Attenuation at 1310nm | ≤0.36dB/km |
| Attenuation at 1550nm (DWDM) | ≤0.25dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Yellow |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Min. Bend Radius | 10mm |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
| Compatible Brands | Adva / Nec |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
Compatibility
Compatible platforms
AdvaNec
