1 / 5MODEL · FT-10M-OS2-6

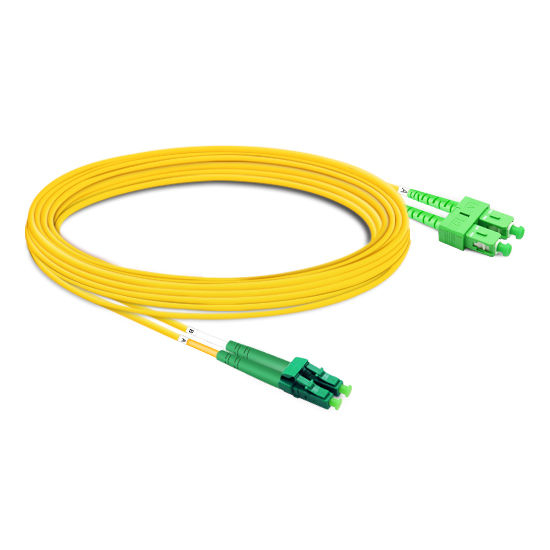

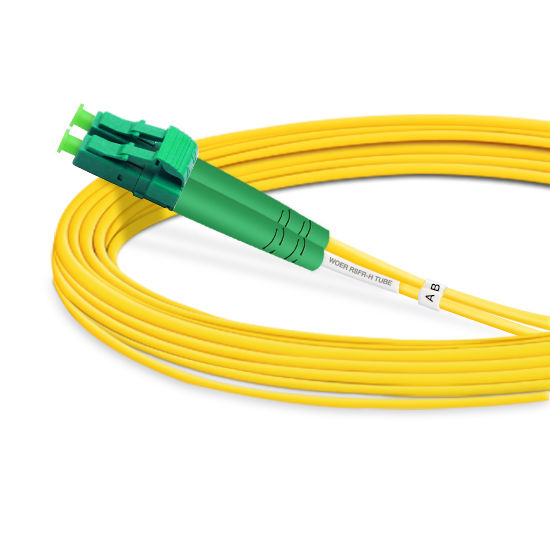

10m Duplex OS2 LC APC to SC APC Patch Cable, PVC OFNR
F-tone Networks 10m (33ft) duplex OS2 LC APC to SC APC patch, PVC (OFNR) yellow, ClearCurve G.657.A1, IL<=0.3dB, RL>=50dB. Contact Betty or Una for pricing.
Compatible: AdvaCompatible: Nec
- Connector A
- LC APC
- Connector B
- SC APC
- Fiber Type
- OS2 9/125μm Single Mode
- Wavelength
- 1310/1550nm (CWDM DWDM)
- Fiber Count
- Duplex
- Distance
- 10m (33ft)
Reference model FT-10M-OS2-6 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | LC APC |
|---|---|
| Connector B | SC APC |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm (CWDM DWDM) |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | PVC (OFNR) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Attenuation at 1310nm | ≤0.36dB/km |
| Attenuation at 1550nm (DWDM) | ≤0.25dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Yellow |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Min. Bend Radius | 10mm |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
Overview
Product details
Bridge an LC APC transceiver face to an SC APC panel on OS2 glass. Yellow PVC (OFNR) ClearCurve G.657.A1, ten metres, 2.0 mm. Hold insertion under 0.3 dB and return at or above 50 dB.
Key Features
- LC APC paired with SC APC
- OS2 9/125 single-mode, G.657.A1
- PVC (OFNR) jacket, Yellow
- Corning ClearCurve glass, 2.0 mm
- IL <=0.3 dB, RL >=50 dB, 10m (33ft)
Applications
- Angled-polish OS2 patching in CWDM/DWDM plants
- Single-mode interconnects needing high return loss
Specifications
| Parameter | Value |
|---|---|
| Connector A | LC APC |
| Connector B | SC APC |
| Fiber Type | OS2 9/125μm Single Mode |
| Wavelength | 1310/1550nm (CWDM DWDM) |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | PVC (OFNR) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Attenuation at 1310nm | ≤0.36dB/km |
| Attenuation at 1550nm (DWDM) | ≤0.25dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Yellow |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Min. Bend Radius | 10mm |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
| Compatible Brands | Adva / Nec |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
Compatibility
Compatible platforms
AdvaNec
