1 / 5MODEL · FT-10M-OM2

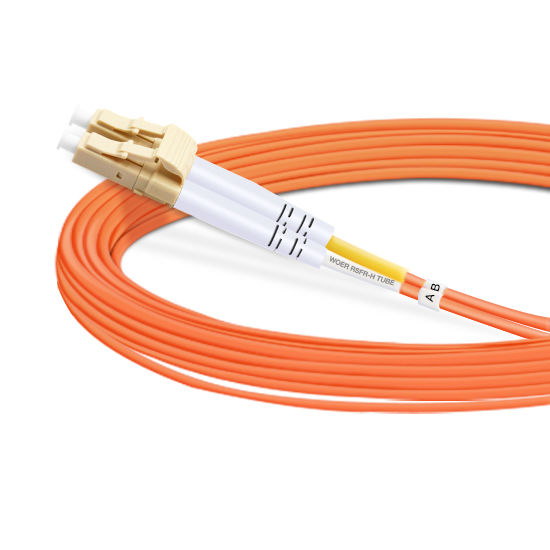

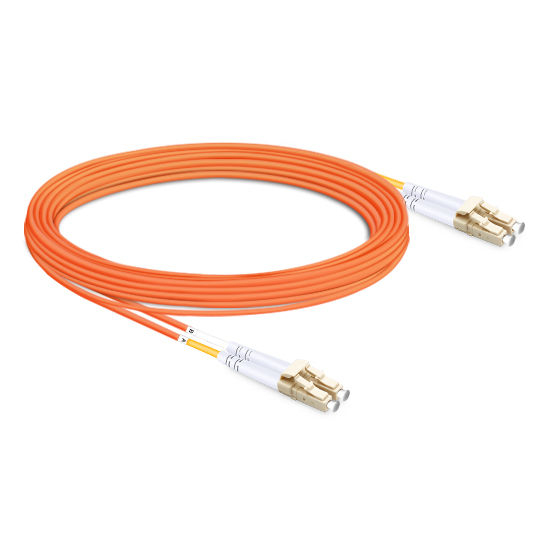

10m Duplex OM2 LC UPC to LC UPC Patch Cable, LSZH
10m (33ft) duplex OM2 LC UPC to LC UPC patch by F-tone Networks, LSZH orange jacket, Corning ClearCurve, IL<=0.3dB, for FE/GE use Ask Betty or Una for a quote.
- Connector A
- LC UPC
- Connector B
- LC UPC
- Fiber Type
- OM2 50/125μm Multimode
- Wavelength
- 850/1300nm
- Fiber Count
- Duplex
- Distance
- 10m (33ft)
Reference model FT-10M-OM2 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | LC UPC |
|---|---|
| Connector B | LC UPC |
| Fiber Type | OM2 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | 低烟无卤 |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥20dB |
| 850nm 处的衰减 | 3.0dB/km |
| 1300nm 处的衰减 | 1.0dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Orange |
| 应用 | FE/GE Networks |
| Min. Bend Radius | 7.5mm |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
Overview
Product details
OM2 upgrades the core to 50/125 while LC UPC stays on both sides. Jacket changes to LSZH yet remains orange over 10m (33ft) of ClearCurve glass. IL/RL targets mirror the duplex line (0.3 dB / 20 dB) for FE/GE plants that want low-smoke cable.
Key Features
- LC UPC to LC UPC duplex
- OM2 50/125 multimode
- LSZH jacket, Orange
- Corning ClearCurve glass, 2.0 mm
- IL <=0.3 dB, RL >=20 dB, 10m (33ft)
Applications
- Fast Ethernet and Gigabit Ethernet multimode links
- Legacy multimode patch fields in enterprise closets
Specifications
| Parameter | Value |
|---|---|
| Connector A | LC UPC |
| Connector B | LC UPC |
| Fiber Type | OM2 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | LSZH |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥20dB |
| Attenuation at 850nm | 3.0dB/km |
| Attenuation at 1300nm | 1.0dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Orange |
| Application | FE/GE Networks |
| Min. Bend Radius | 7.5mm |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
