1 / 6MODEL · FT-10M-OM1-6

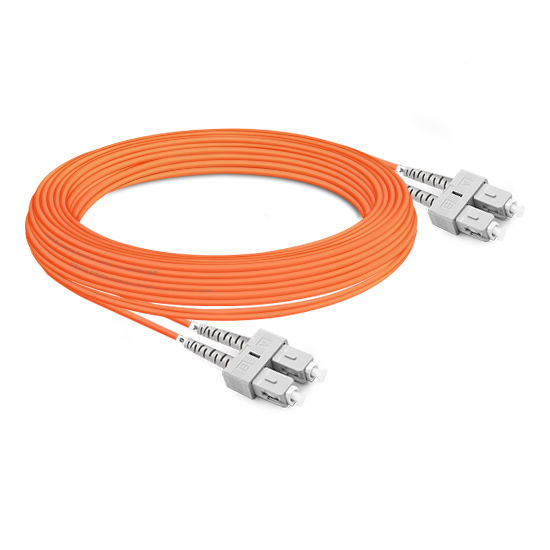

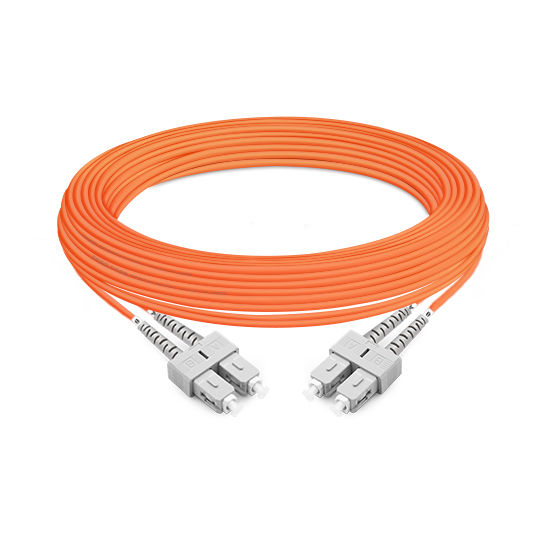

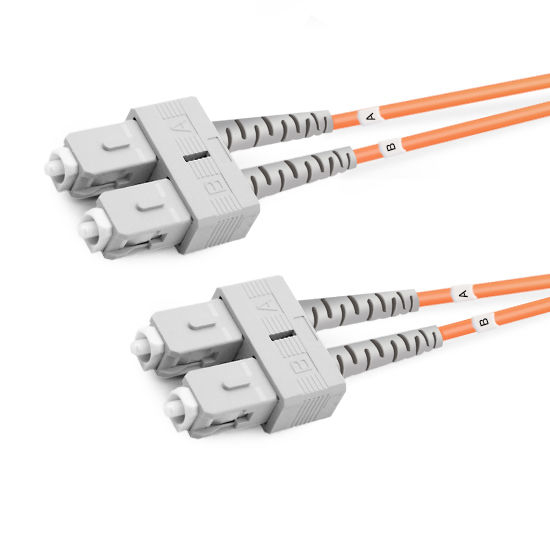

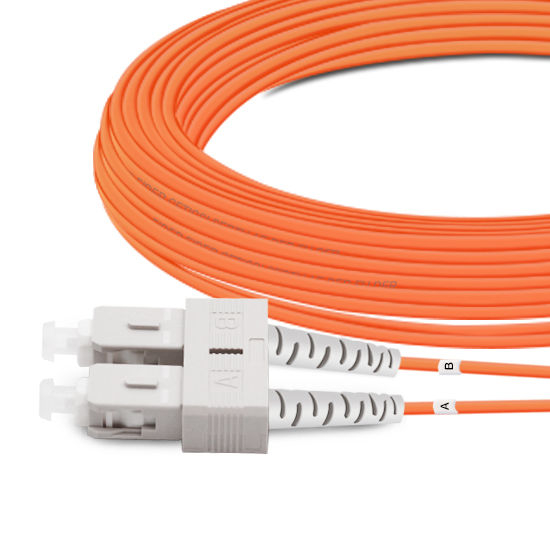

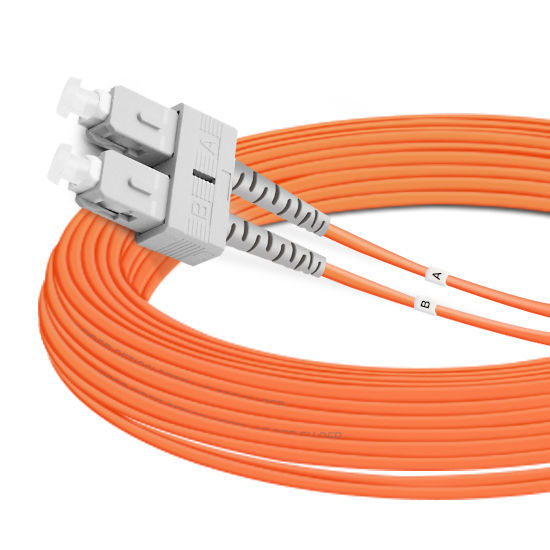

10m Duplex OM1 SC UPC to SC UPC Patch Cable, PVC OFNR
F-tone Networks 10m (33ft) duplex OM1 SC UPC to SC UPC patch, PVC OFNR orange, Corning ClearCurve, IL<=0.3dB, for FE/GE patching Ask Betty or Una for a quote.
- Connector A
- SC UPC
- Connector B
- SC UPC
- Fiber Type
- OM1 62.5/125μm Multimode
- Wavelength
- 850/1300nm
- Fiber Count
- Duplex
- Distance
- 10m (33ft)
Reference model FT-10M-OM1-6 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | SC UPC |
|---|---|
| Connector B | SC UPC |
| Fiber Type | OM1 62.5/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | PVC (OFNR) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥20dB |
| 850nm 处的衰减 | 3.0dB/km |
| 1300nm 处的衰减 | 1.0dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Orange |
| 应用 | FE/GE Networks |
| Min. Bend Radius | 7.5mm |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
Overview
Product details
Older SC panels still dominate some multimode rooms; this OM1 duplex answers with SC UPC on both tips. Orange PVC (OFNR) ClearCurve 62.5/125 runs 10m (33ft) at 2.0 mm. Expect the FE/GE family limits — IL inside 0.3 dB, RL from 20 dB, bend floor 7.5 mm.
Key Features
- SC UPC to SC UPC duplex
- OM1 62.5/125 multimode
- PVC (OFNR) jacket, Orange
- Corning ClearCurve glass, 2.0 mm
- IL <=0.3 dB, RL >=20 dB, 10m (33ft)
Applications
- Fast Ethernet and Gigabit Ethernet multimode links
- Legacy multimode patch fields in enterprise closets
Specifications
| Parameter | Value |
|---|---|
| Connector A | SC UPC |
| Connector B | SC UPC |
| Fiber Type | OM1 62.5/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | PVC (OFNR) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥20dB |
| Attenuation at 850nm | 3.0dB/km |
| Attenuation at 1300nm | 1.0dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Orange |
| Application | FE/GE Networks |
| Min. Bend Radius | 7.5mm |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
