1 / 6MODEL · FT-10M-OM1-3

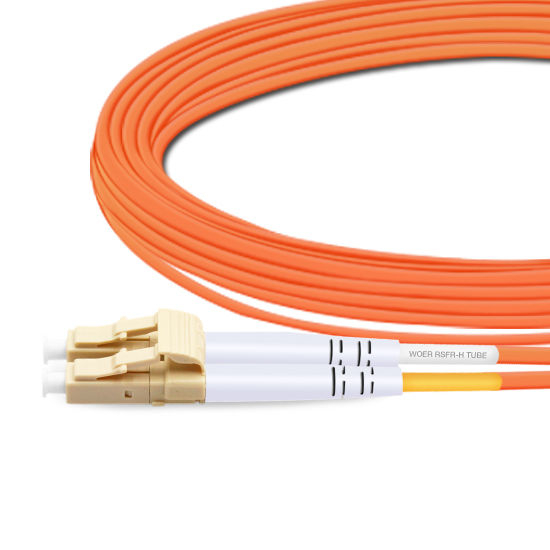

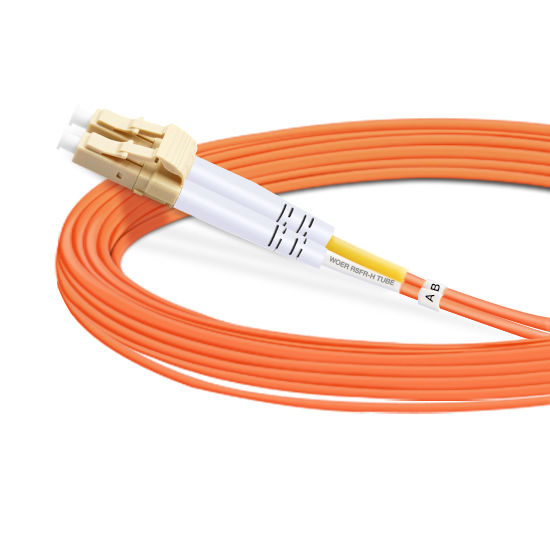

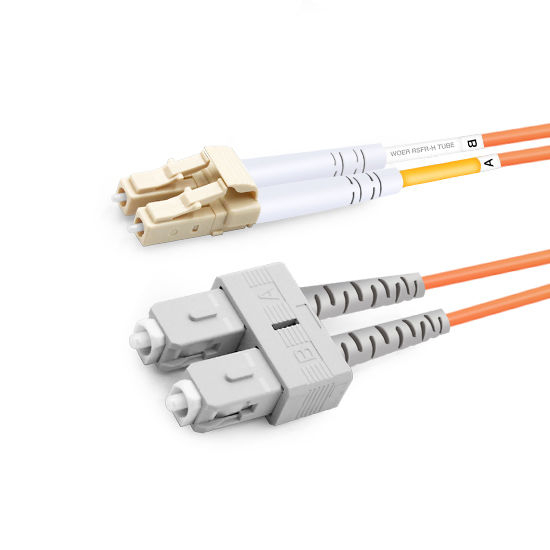

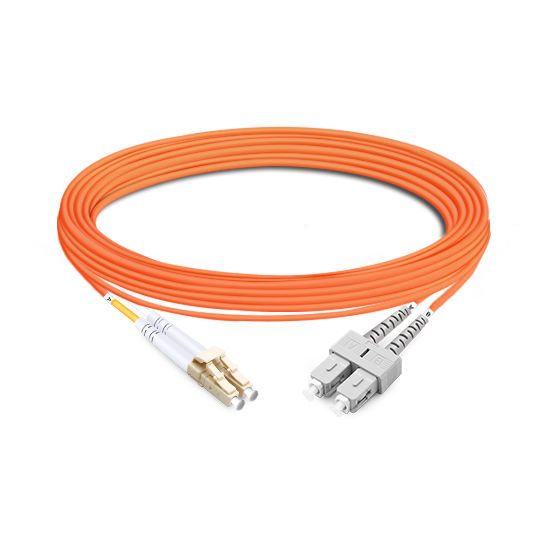

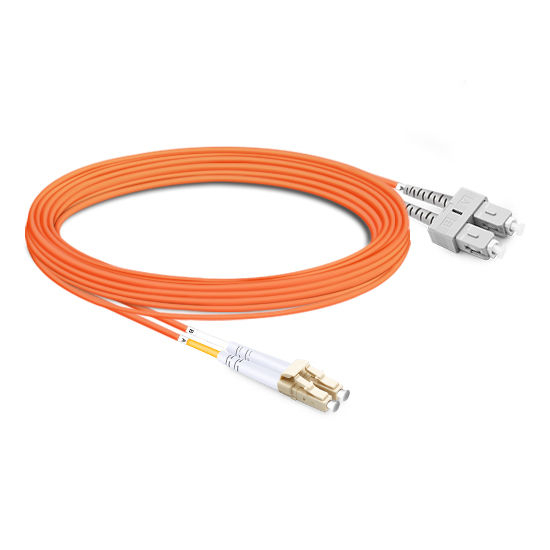

10m Duplex OM1 LC UPC to SC UPC Patch Cable, PVC OFNR
F-tone Networks 10m (33ft) OM1 duplex patch, LC UPC to SC UPC, PVC OFNR orange jacket, Corning ClearCurve glass, IL<=0.3dB, for FE/GE networks. Ask us.
- Connector A
- LC UPC
- Connector B
- SC UPC
- Fiber Type
- OM1 62.5/125μm Multimode
- Wavelength
- 850/1300nm
- Fiber Count
- Duplex
- Distance
- 10m (33ft)
Reference model FT-10M-OM1-3 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | LC UPC |
|---|---|
| Connector B | SC UPC |
| Fiber Type | OM1 62.5/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | PVC (OFNR) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥20dB |
| 850nm 处的衰减 | 3.0dB/km |
| 1300nm 处的衰减 | 1.0dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Orange |
| 应用 | FE/GE Networks |
| Min. Bend Radius | 7.5mm |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
Overview
Product details
Mixed LC UPC and SC UPC tips on OM1 multimode let panels and modules of different styles meet. Orange PVC (OFNR) ClearCurve cord, 10m (33ft), 2.0 mm. Series optics apply: IL <=0.3 dB, RL >=20 dB, plus the standard 850/1300 nm attenuation pair.
Key Features
- LC UPC to SC UPC duplex
- OM1 62.5/125 multimode
- PVC (OFNR) jacket, Orange
- Corning ClearCurve glass, 2.0 mm
- IL <=0.3 dB, RL >=20 dB, 10m (33ft)
Applications
- Fast Ethernet and Gigabit Ethernet multimode links
- Legacy multimode patch fields in enterprise closets
Specifications
| Parameter | Value |
|---|---|
| Connector A | LC UPC |
| Connector B | SC UPC |
| Fiber Type | OM1 62.5/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | PVC (OFNR) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥20dB |
| Attenuation at 850nm | 3.0dB/km |
| Attenuation at 1300nm | 1.0dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Orange |
| Application | FE/GE Networks |
| Min. Bend Radius | 7.5mm |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
