1 / 6MODEL · FT-10M-OM5-2

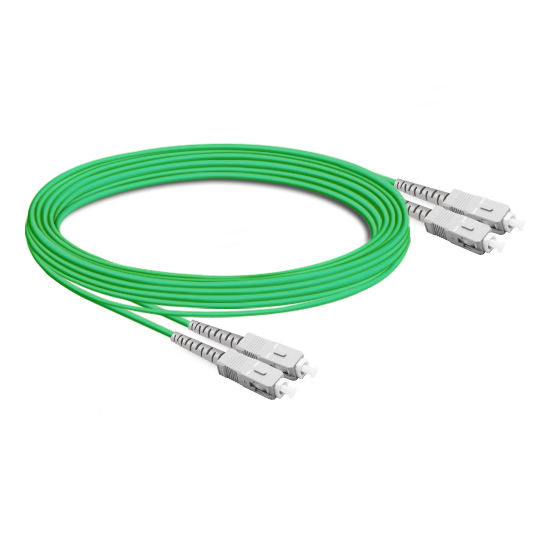

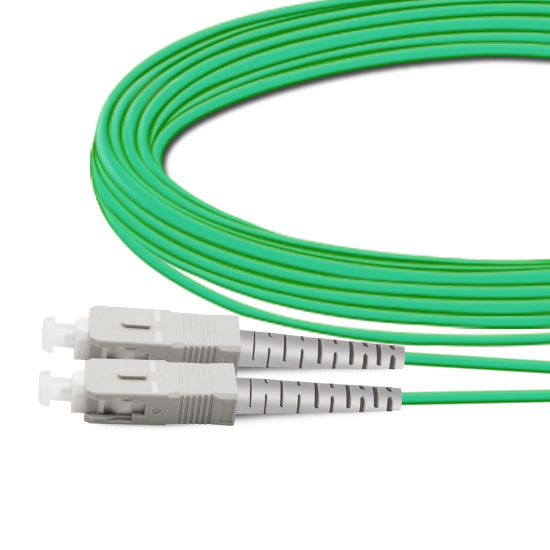

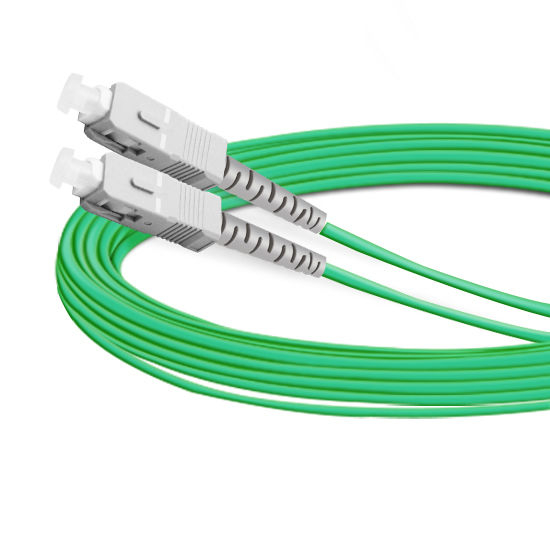

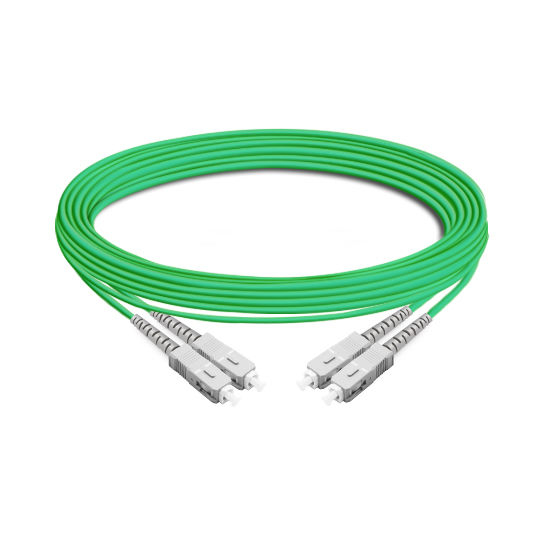

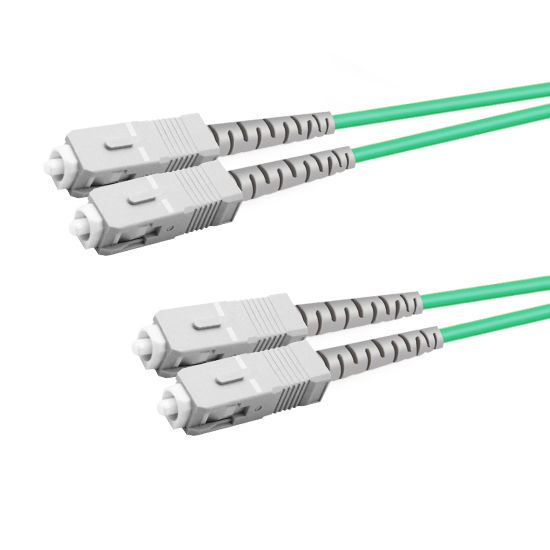

10m Duplex OM5 SC UPC to SC UPC Patch Cable, LSZH
Lime green OM5 duplex SC UPC patch, 10m (33ft), LSZH ClearCurve, IL<=0.3dB RL>=20dB, for 40G/100G multimode. Factory terminated. Ask Betty or Una for a quote.
- Connector A
- SC UPC
- Connector B
- SC UPC
- Fiber Type
- OM5 50/125μm Multimode
- Wavelength
- 850/1300nm
- Fiber Count
- Duplex
- Distance
- 10m (33ft)
Reference model FT-10M-OM5-2 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | SC UPC |
|---|---|
| Connector B | SC UPC |
| Fiber Type | OM5 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | 低烟无卤 |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥20dB |
| 850nm 处的衰减 | 3.0dB/km |
| 1300nm 处的衰减 | 1.0dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Lime Green |
| 应用 | 40G/100G Networks |
| Min. Bend Radius | 7.5mm |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
Overview
Product details
Lime-green wideband multimode with mirrored SC UPC tips covers short 40G/100G hops. LSZH over ClearCurve 50/125 runs 10m (33ft) at 2.0 mm. Caps: 0.3 dB insertion, 20 dB return, 7.5 mm bend.
Key Features
- Matching SC UPC duplex ends
- OM5 50/125 wideband multimode
- LSZH lime-green jacket
- ClearCurve glass at 2.0 mm OD
- IL <=0.3 dB / RL >=20 dB over 10m (33ft)
Applications
- 40G/100G multimode short reaches
- Data-hall wideband patch fields
Specifications
| Parameter | Value |
|---|---|
| Connector A | SC UPC |
| Connector B | SC UPC |
| Fiber Type | OM5 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | LSZH |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥20dB |
| Attenuation at 850nm | 3.0dB/km |
| Attenuation at 1300nm | 1.0dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Lime Green |
| Application | 40G/100G Networks |
| Min. Bend Radius | 7.5mm |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
