1 / 6MODEL · FT-10M-OM4-5

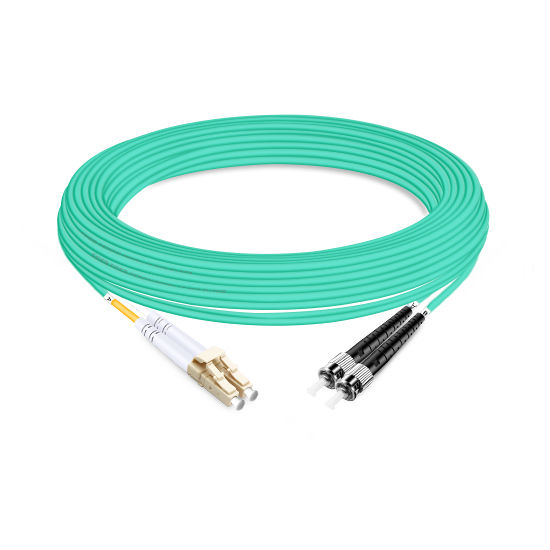

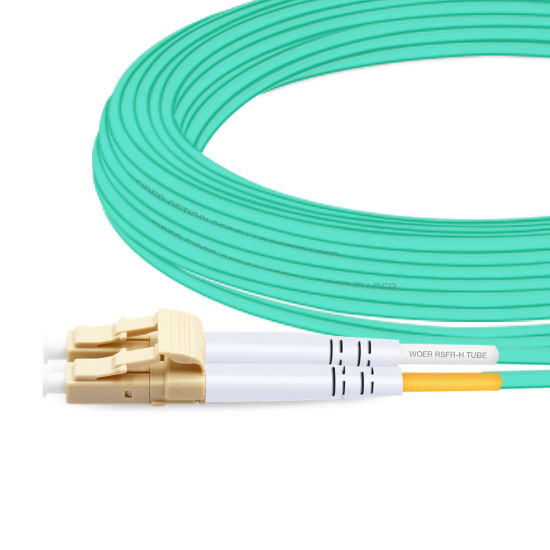

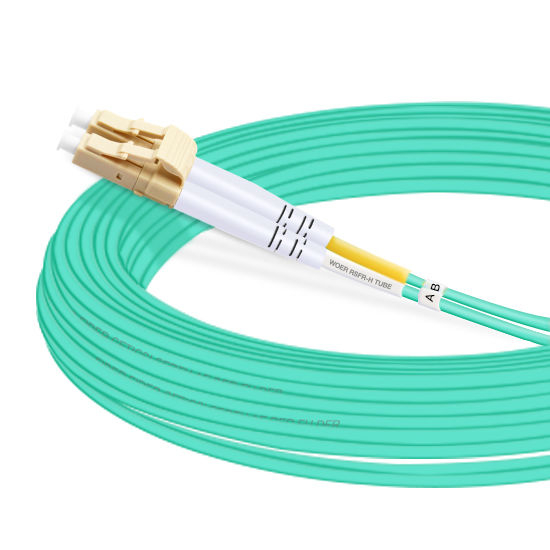

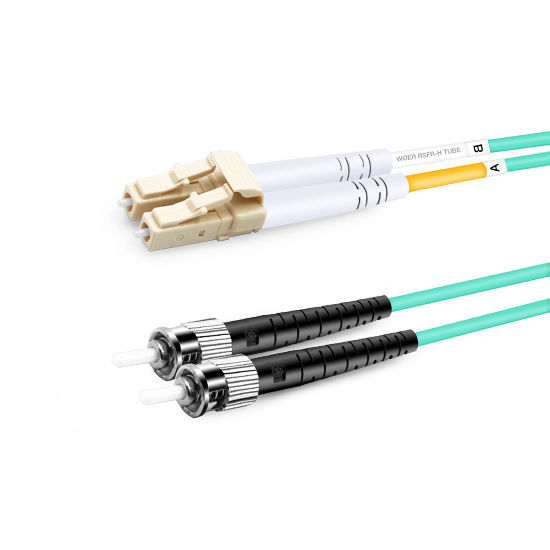

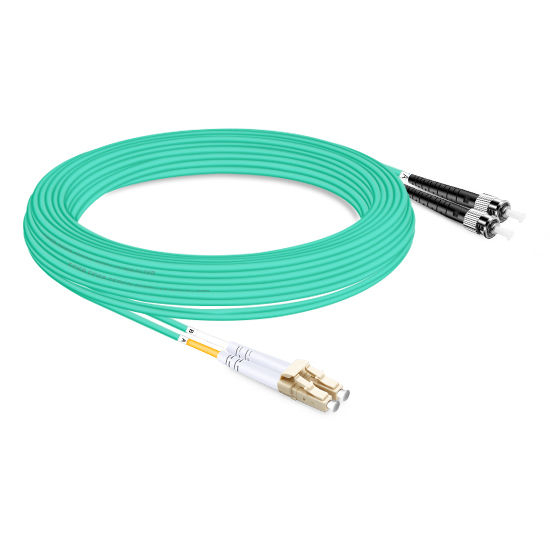

10m Duplex OM4 LC UPC to ST UPC Patch Cable, PVC OFNR
10m (33ft) duplex OM4 LC UPC to ST UPC patch by F-tone Networks, PVC OFNR aqua/violet, ClearCurve, IL<=0.3dB, for 40G/100G use Ask Betty or Una for a quote.
- Connector A
- LC UPC
- Connector B
- ST UPC
- Fiber Type
- OM4 50/125μm Multimode
- Wavelength
- 850/1300nm
- Fiber Count
- Duplex
- Distance
- 10m (33ft)
Reference model FT-10M-OM4-5 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | LC UPC |
|---|---|
| Connector B | ST UPC |
| Fiber Type | OM4 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | PVC (OFNR) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥20dB |
| 850nm 处的衰减 | 3.0dB/km |
| 1300nm 处的衰减 | 1.0dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Aqua/Violet |
| 应用 | 40G/100G Networks |
| Min. Bend Radius | 7.5mm |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
Overview
Product details
Lab benches and older distribution frames that expose ST can still join OM4 LC modules. Ten metres of aqua/violet PVC (OFNR) ClearCurve carry the duplex with sub-0.3 dB insertion loss and 20 dB-class return loss, bending no tighter than 7.5 mm on 40G/100G paths.
Key Features
- LC UPC to ST UPC duplex
- OM4 50/125 multimode
- PVC (OFNR) jacket, Aqua/Violet
- Corning ClearCurve glass, 2.0 mm
- IL <=0.3 dB, RL >=20 dB, 10m (33ft)
Applications
- 40G and 100G multimode short-reach links
- High-speed multimode patch fields in the data hall
Specifications
| Parameter | Value |
|---|---|
| Connector A | LC UPC |
| Connector B | ST UPC |
| Fiber Type | OM4 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | PVC (OFNR) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥20dB |
| Attenuation at 850nm | 3.0dB/km |
| Attenuation at 1300nm | 1.0dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Aqua/Violet |
| Application | 40G/100G Networks |
| Min. Bend Radius | 7.5mm |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
Contact Us
For pricing, datasheets and OEM/ODM inquiries, contact the F-tone Networks sales team: betty@f-tone.com / una@f-tone.com · WhatsApp: +86 17360698946 (Betty), +86 17761163895 (Una)
