1 / 6MODEL · FT-10M-OM3-7

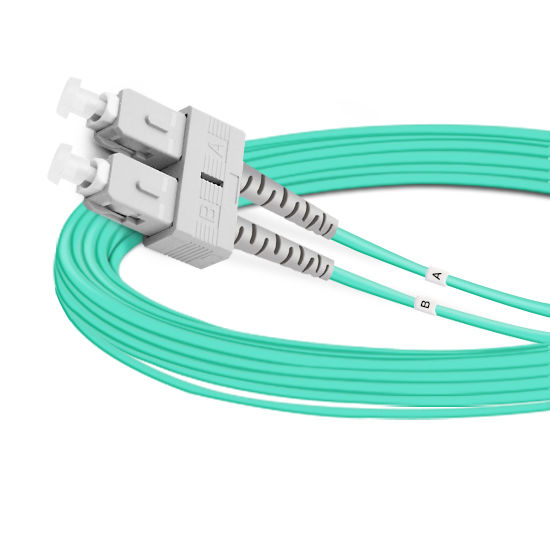

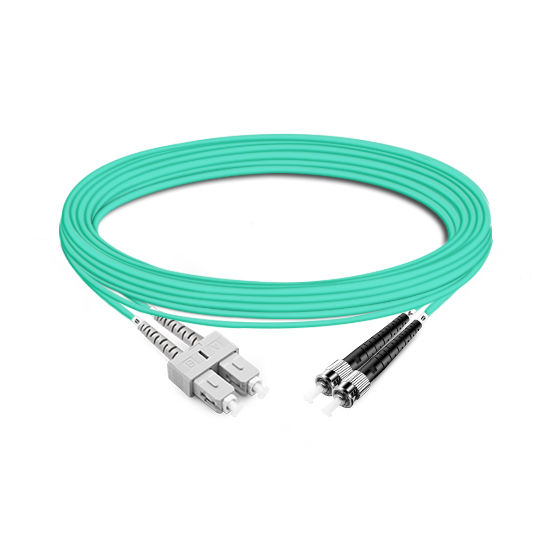

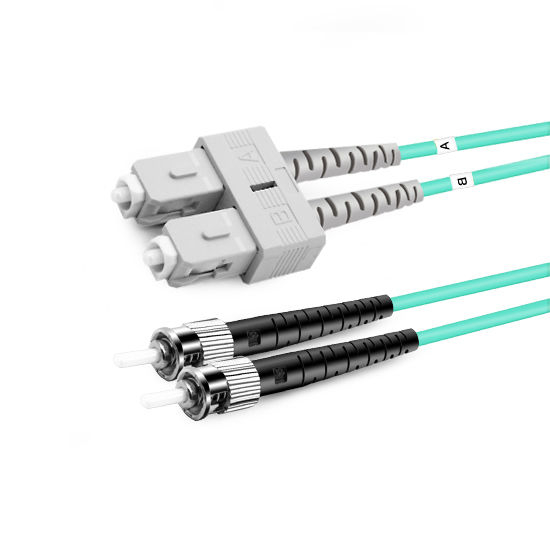

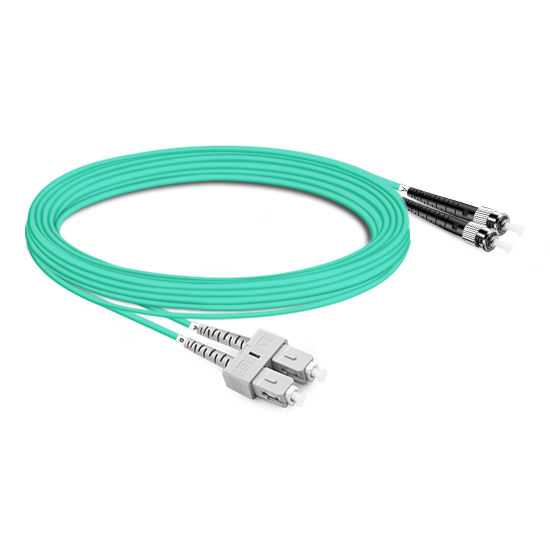

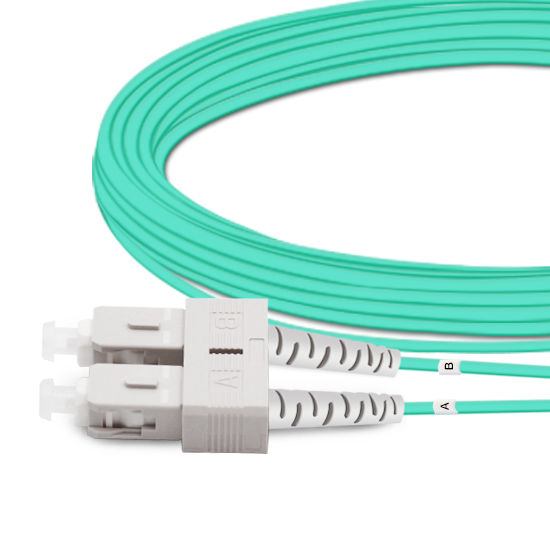

10m Duplex OM3 SC UPC to ST UPC Patch Cable, PVC OFNR
10m (33ft) duplex OM3 SC UPC to ST UPC multimode patch by F-tone Networks, PVC OFNR aqua, ClearCurve, IL<=0.3dB, for 10G/40G use Ask Betty or Una for a quote.
- Connector A
- SC UPC
- Connector B
- ST UPC
- Fiber Type
- OM3 50/125μm Multimode
- Wavelength
- 850/1300nm
- Fiber Count
- Duplex
- Distance
- 10m (33ft)
Reference model FT-10M-OM3-7 in your inquiry. Datasheets are confirmed offline before order. Full specifications ↓
Specifications
Technical parameters
| Connector A | SC UPC |
|---|---|
| Connector B | ST UPC |
| Fiber Type | OM3 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | PVC (OFNR) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥20dB |
| 850nm 处的衰减 | 3.0dB/km |
| 1300nm 处的衰减 | 1.0dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Aqua |
| 应用 | 10G/40G Networks |
| Min. Bend Radius | 7.5mm |
| Operating Temperature | 商业级/工业级/军品级可选 |
| Storage Temperature | 商业级/工业级/军品级可选 |
Overview
Product details
SC panels meeting ST ports land on this OM3 hybrid duplex. Aqua PVC (OFNR) ClearCurve, 10m (33ft), 2.0 mm. Shared IL, RL and bend limits with the OM3 group keep 10G/40G patching predictable.
Key Features
- SC UPC to ST UPC duplex
- OM3 50/125 multimode
- PVC (OFNR) jacket, Aqua
- Corning ClearCurve glass, 2.0 mm
- IL <=0.3 dB, RL >=20 dB, 10m (33ft)
Applications
- 10G and 40G multimode interconnects
- Data center and campus multimode patching
Specifications
| Parameter | Value |
|---|---|
| Connector A | SC UPC |
| Connector B | ST UPC |
| Fiber Type | OM3 50/125μm Multimode |
| Wavelength | 850/1300nm |
| Fiber Count | Duplex |
| Distance | 10m (33ft) |
| Fiber Glass | Corning ClearCurve® |
| Cable Jacket | PVC (OFNR) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥20dB |
| Attenuation at 850nm | 3.0dB/km |
| Attenuation at 1300nm | 1.0dB/km |
| Cable Diameter | 2.0mm |
| Fiber Color | Aqua |
| Application | 10G/40G Networks |
| Min. Bend Radius | 7.5mm |
| Operating Temperature | Commercial, industrial or military grade (selectable) |
| Storage Temperature | Commercial, industrial or military grade (selectable) |
